Overview

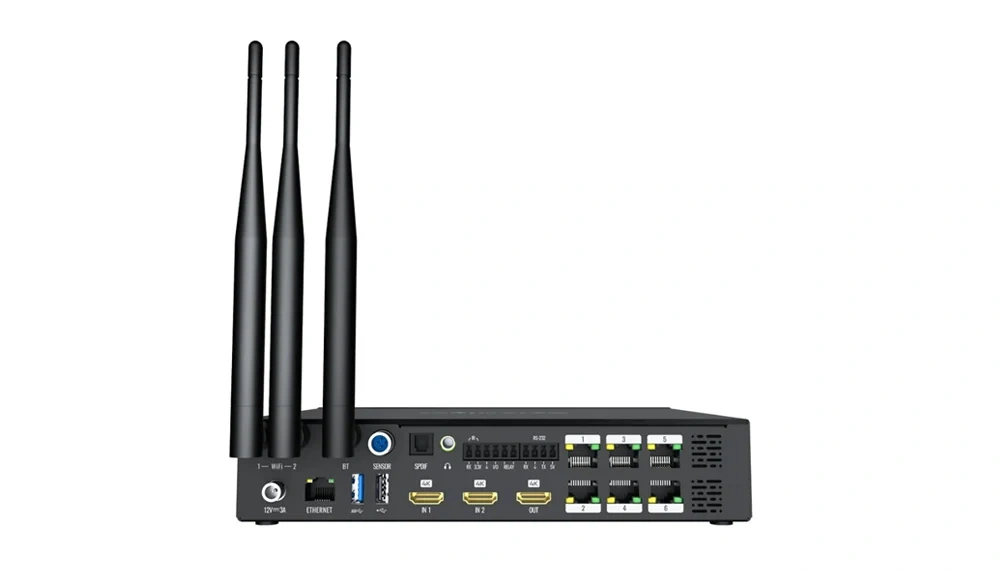

The AX06 is AI Media Station. Equipped with 6 Gigabit Ethernet ports, it handles a maximum load of 3.9 million pixels. It supports multi-layer displays and Dual 4K decoding, along with LAN/WiFi network access for cloud networking management. Additionally, it supports document presentation, video playback, multi-terminal wireless screen casting, infrared touch frames, electronic whiteboards, cameras, microphones, and meeting systems.
Running on the Android 13 system, the AX06 integrates various Android applications and provides synchronous/asynchronous sending functions. Featuring robust interactivity and smart control, it can be mounted on a wall or placed on a desktop without requiring modifications to the screen structure. It is ideal for LED displays in multifunctional classrooms, conference rooms, exhibition halls, lecture halls, and banquet halls, ensuring optimal display performance.

Features:

System functions
• 8-core chip with 8nm advanced process technology, delivering outstanding performance
• Up to Dual 4K decoding and H.264/H.265/AV1/VP9/AVS2 compliant
• Android 13 based, supporting third-party app installations
• Colorlight Infi-bit grayscale extension technology
• 6 Gigabit Ethernet port outputs, supporting up to 3.9 million pixels, with a maximum width of 7680 pixels
• 2×HDMI 1.4 signal inputs and 1×HDMI 2.0 signal output
• Multiple HDMI signal layers, supporting picture-in-picture and picture-bypicture
• Annotation upon even external inputs including OPS and HDMI signals
• Support wireless display, multi-terminal wireless screen casting, reverse control
• Compatible with generic infrared touch frames for smooth electronic whiteboard
• Meeting systems compatible with meeting peripherals (Requires third party meeting apps)
• Display preset modes for various scenarios such as presentation, remote meetings, and video playback
• LAN/WiFi for network management
• Embedded file manager for easy management for on-board and USB drive files
• USB drive plug and play or store and play
• Automatic LED brightness adjustment (Optional with ambient light sensor)
• Support 4K UI display
• Powerful AI computing power
• Low power consumption on standby mode
• Fan-less design for ultra-quiet environment, eliminates maintenance of dust buildup and mechanical failure, leading to lower operational costs and less downtime, no wearing out moving parts
Smart Playback and Control
• Infrared/Bluetooth dual mode remote control for flexible and intuitive operation
• File browsing and document editing with a remote control, mouse, or keyboard
• Multi-Platform software control (WebUI, PC PlayerMaster, ColorlightCloud CMS, Mobile phone LED Assistant)
• Playlist assets including videos, images, text, time, and weather, HDMI signals, etc.
• Central control devices via serial port or network
Extensive Connectivity
• 2×HDMI 1.4 inputs
• 1×HDMI 2.0 output
• 6×Ethernet port outputs with a maximum load capacity of 3.9 million pixels
• USB 2.0, USB 3.0, and USB-C ports for connecting peripherals like mouse, keyboard, USB-disk, and camera
• Gigabit Ethernet connection for remote intelligent control and management
• WiFi 6 wireless communication, dual-band and dual-mode (AP and STA)
• Bluetooth 5.2 for connecting Bluetooth remote controls, mice, keyboards, and speakers
• 1×SPDIF output for PCM, Dolby, and DTS audio signals
• 1×3.5mm audio jack for HiFi audio
• Sensor port for monitoring ambient temperature, humidity, and brightness

Specification Download:
Colorlight AX06 LED Display AI Media Station Specification
