The VX4S Series is an LED Display Screen video controller that integrates sending card functions with video processing. Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ethernet outputs. Based on the powerful FPGA processing platform, the VX4S Series supports multiple switching effects, such as quick seamless switching and fade, providing flexible screen control experience and outstanding video presentations.

VX4S LED Video processor Working Diagram

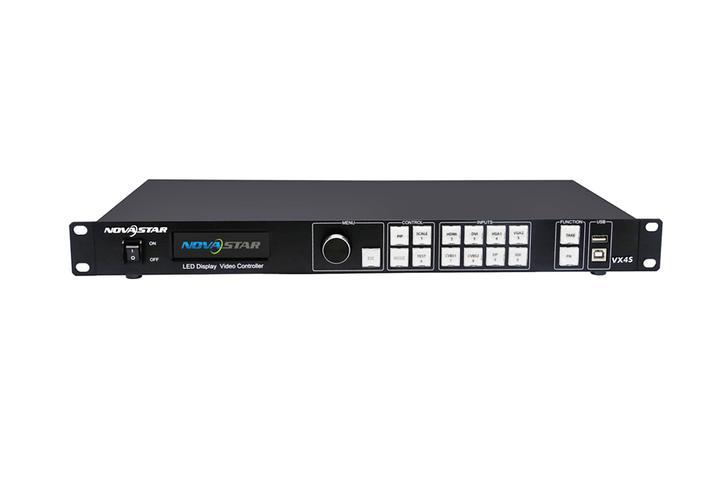

VX4S

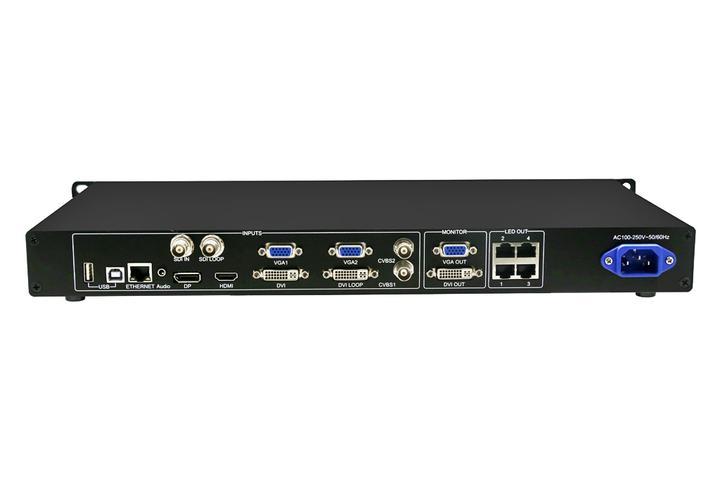

• The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution.

• Provide seamless high-speed switching and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality.

• The location and size of PIP can both beadjusted, which can be controlled at will.

• Adopt the NovaStar G4 engine; the screen is stable and flicker free without
  scanning lines; the images are exquisite and have a good sense of depth.

• Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors.

• HDMI/external audio input.

• 10bit / 8bit HD video source;

• The loading capacity: 2.3 million pixels.

• Support multiple controller montage for loading huge screen.

• Support NovaStar's new-generation point-by-point calibration technology; the calibration is fast and efficient.

• Computer software for system configuration is not necessary. The system can be configured using one knob and one button. All operations can be done in a few steps. That's what we call Easy Screen Configuration!

• Adopt an innovative architecture to implement smart configuration; the
  screen debugging can be completed within several minutes; greatly shorten the preparation time on the stage.

• An LCD display interface and clear button light hint simplify the control of the system.

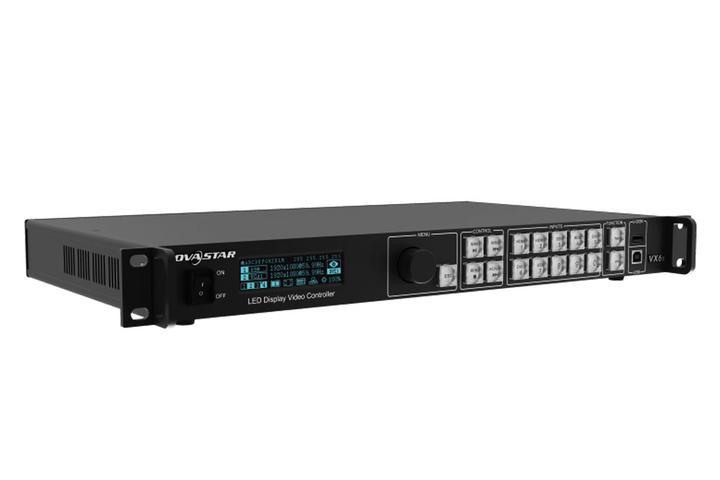

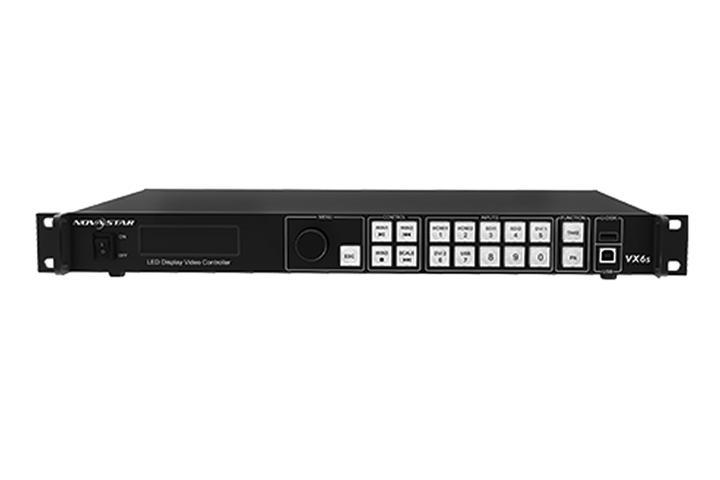

VX6S

• The maximum loading capacity of video output is 3.9 million pixels.

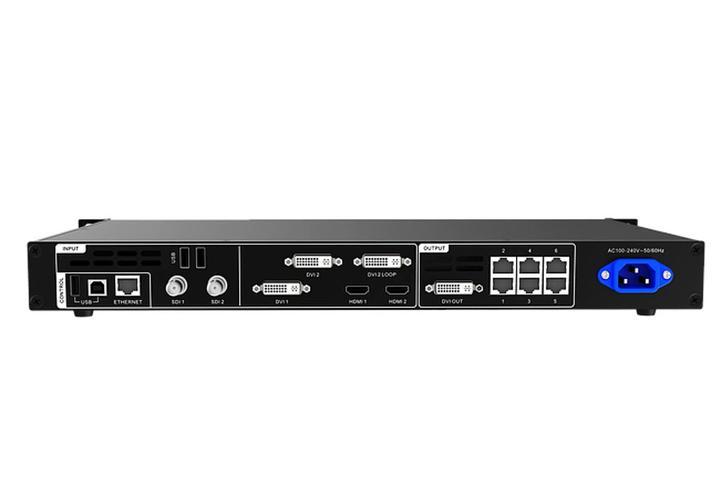

• 7 input connectors: 2 × 3G-SDI, 2 × HDMI1.3, 2 × DVI, 1 × USB.

• Supports 3 ×layers and 1 ×OSD.

• Supports quick and advanced screen configurations.

• Switches the PVW to PGM by pressing only the TAKE button in the switcher mode.

• Supports PGM preview in the switcher mode.

• Supports adjustment of input resolutions and backup of input source.

• Supports brightness adjustment of the screen loaded by the VX6s.

• Multiple VX6s units can be cascaded.

• Automatically scales the image to fit the whole screen.

• The maximum video output width is 4096 pixels.

• A total of 16 user presets can be created and saved as templates. The templates can be used directly and conveniently.

• Any HDMI or DVI input source can be used as the synchronization signal to achieve vertical synchronization of output.

• Features an OLED screen and clear button indicator lights in the front panel, simplifying system control and operation.

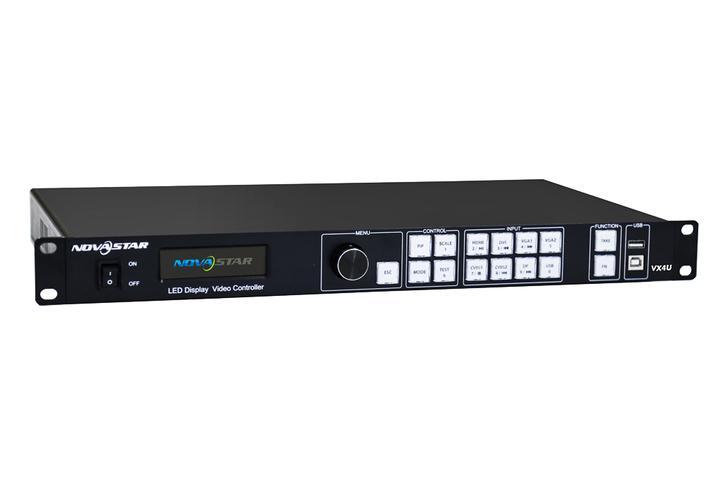

VX4U

• • The inputs of the VX4U include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and USB×1. The supported input resolution is up to 1920×1200@60Hz. The input images of VX4U can be zoomed point-to-point according to the resolution of LED display.

  • With seamless quick switching and fade-in/out effects to enhance and present pictures of professional quality.

  • The location and size of PIP (Picture in Picture) are adjustable, which can be controlled at will.

  • Adopts NovaStar G4 engine. The screen is stable and flicker free without scanning lines. Images are exquisite and have a good sense of depth.

  • Able to perform white balance calibration and color gamut mapping based on the different features of LEDs used by screens to ensure reproduction of true colors.

  • HDMI/external independent audio input.

  • Supports high-bit video input, 10bit/8bit.

  • million pixels.Loading capacity of video output: 2.3

  • Supports multiple controller montage for loading huge screen;

  • Supports NovaStar's new-generation pixel-by-pixel calibration technology and the calibration is fast and efficient.

  • Adopts an innovative design to enable smart configuration. Screen settings can be completed within several minutes, which has greatly shortened the preparation time.

  • With an LCD interface and clear button indicator lights to simplify the control of the system.

    Specifications Download

    Novastar LED Display Video Controller VX4S Specifications

    Novastar VX4S-N All-in-One Controller Specifications V1.0.0

    Novastar VX6S All-in-One Controller Specifications V1.3.0
