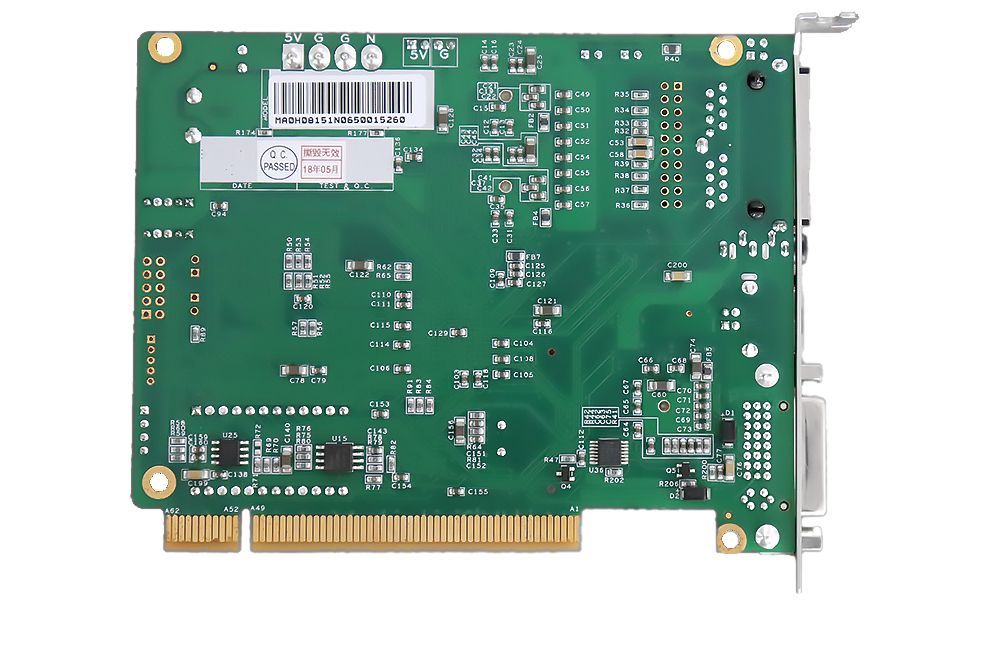

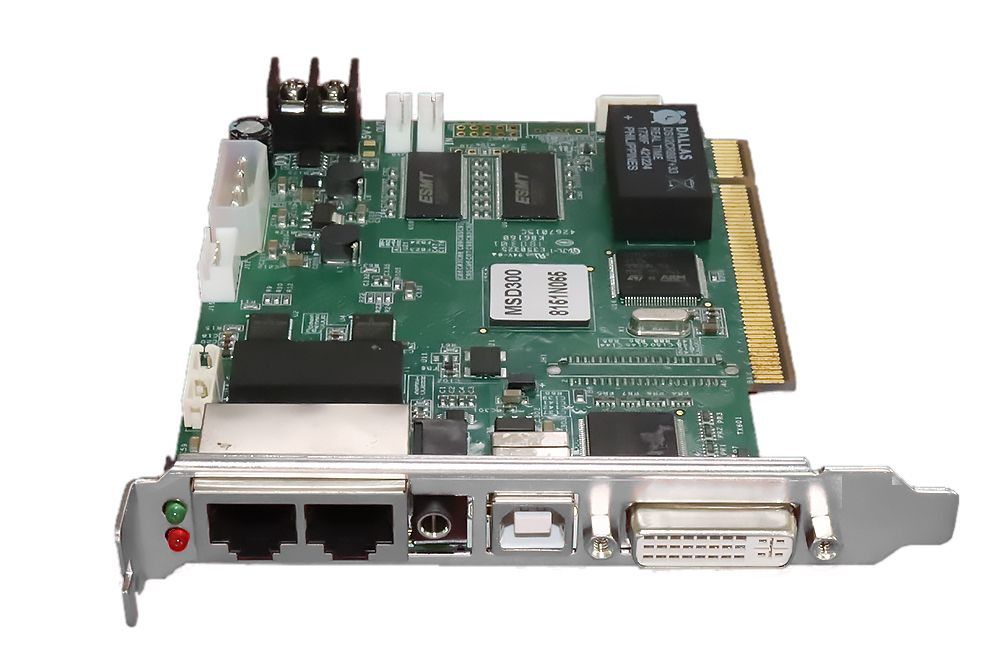

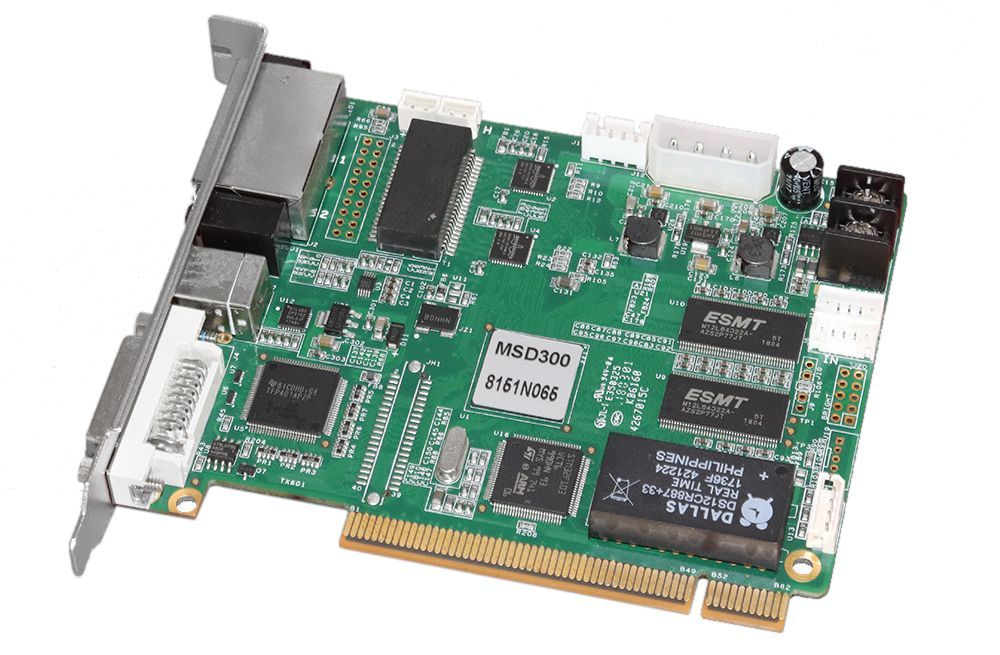

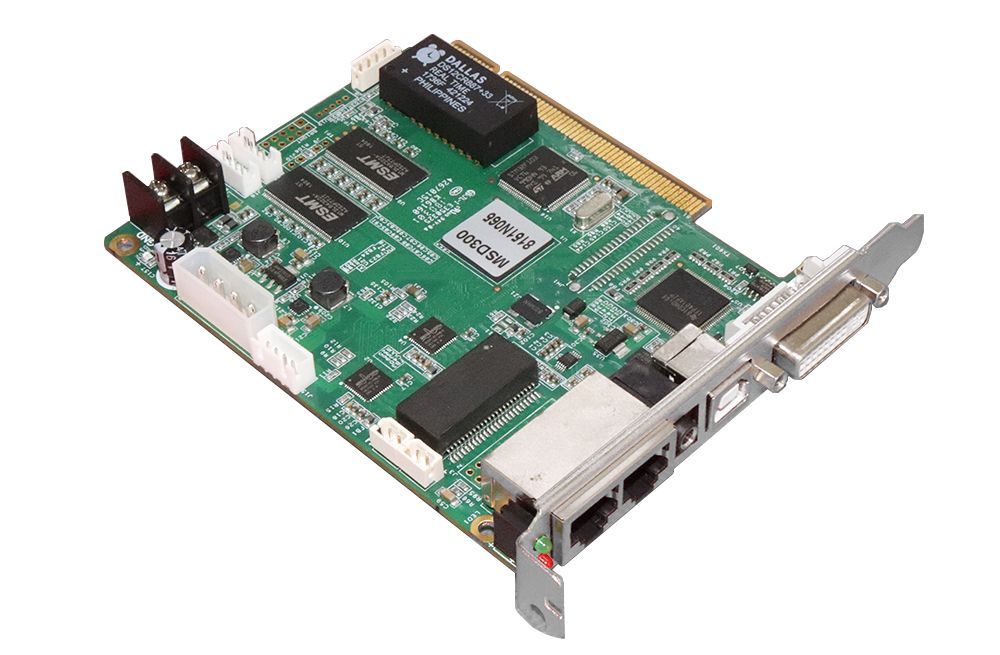

Full color Novastar MSD300/MSD300-1 LED sending cards

SKU: Novastar-MSD300
Novastar MSD300-1/MSD300 sending card, which can be install most brand video processor, LIke VDWALL, Novastar, Kystar.
$90.00 $86.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Full color Novastar MSD300/MSD300-1 LED sending cards
  • Full color Novastar MSD300/MSD300-1 LED sending cards
  • Full color Novastar MSD300/MSD300-1 LED sending cards
  • Full color Novastar MSD300/MSD300-1 LED sending cards
  • Full color Novastar MSD300/MSD300-1 LED sending cards
  • Description
  • Shipping Policy
  • Why Us

Full color Novastar MSD300/MSD300-1 LED sending cards Details & Specification

  • 1 DVI video input;
  • 1 audio input;
  • 2 Ethernet port outputs;
  • USB control interface which is able to be cascaded for uniform control;
  • Supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
  • 1 light sensor interface.


Please be aware :

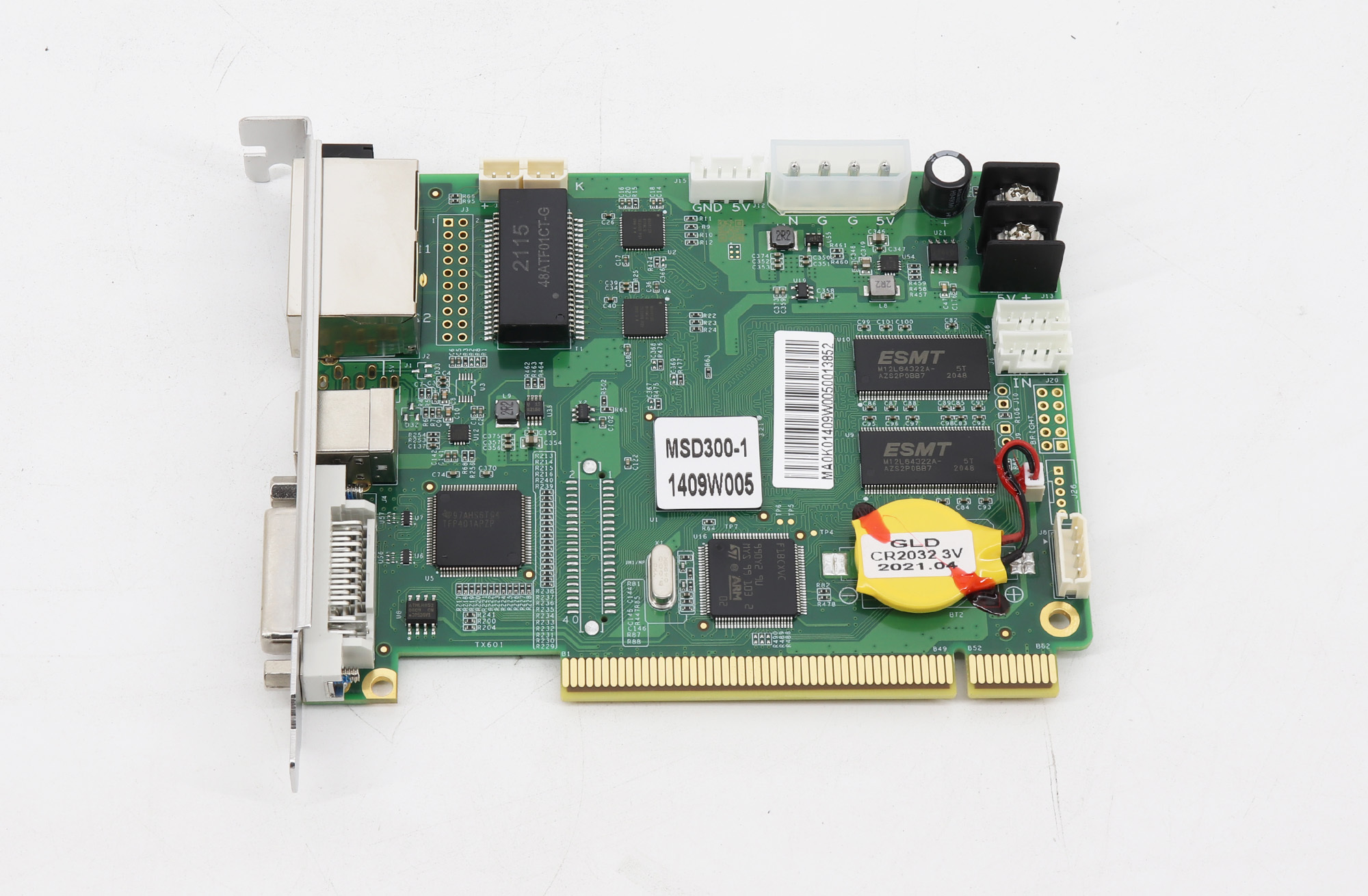

Due to audio chip is temporarily out of supply. MSD300 is temporarily changed to MSD300-1.

difference between the two is that MSD300-1 has no audio output, the others are the same.



Electrical Parameters Input voltage DC 3.3 V–5.5 V
Rated current 0.5 A
Rated power consumption 2.5 W
Operating Environment Temperature -20°C–75°C
Humidity 0% RH–90% RH, non-condensing
Dimensions 126.1 mm × 99.7 mm × 14.0 mm
Net Weight 108.7 g
Certifications EMC, RoHS, PFoS, FCC
 Packing Information Each unit is shipped with a carrying case and packing box.



Packing rules: The product and accessories packed in the packing box and the packing box packed in the carrying case

 Carrying case 335 mm × 190 mm × 62 mm



Craft paper box printed with NOVASTAR

One unit in each box

Accessories: 1 × power cord, 1 × USB cable, 1 × DVI cable

 Packing box 400 mm × 365 mm × 355 mm



Craft paper box printed with NOVASTAR

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.


2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.


3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.



4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.



5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.


6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.


7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.


8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.


9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.



10. The products ordered will not enjoy return and warranty if their codes are ripped off.



11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.
