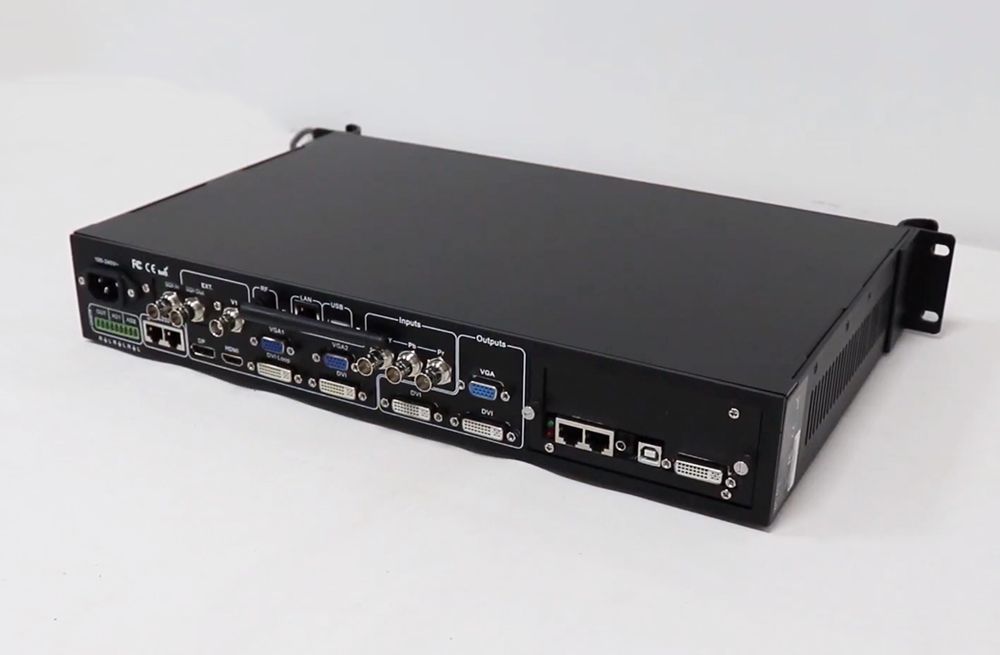

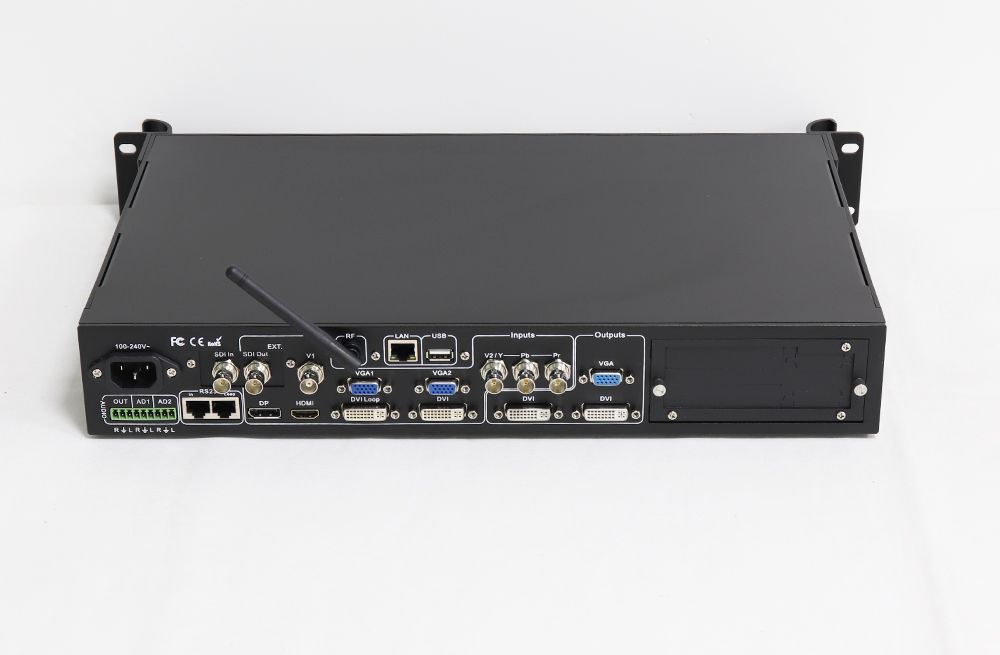

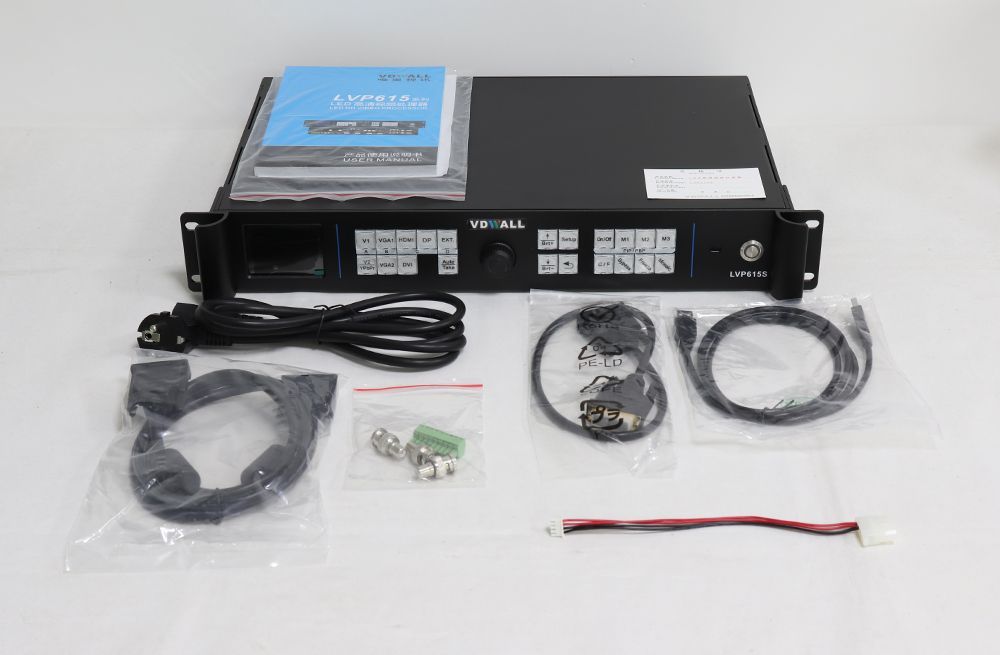

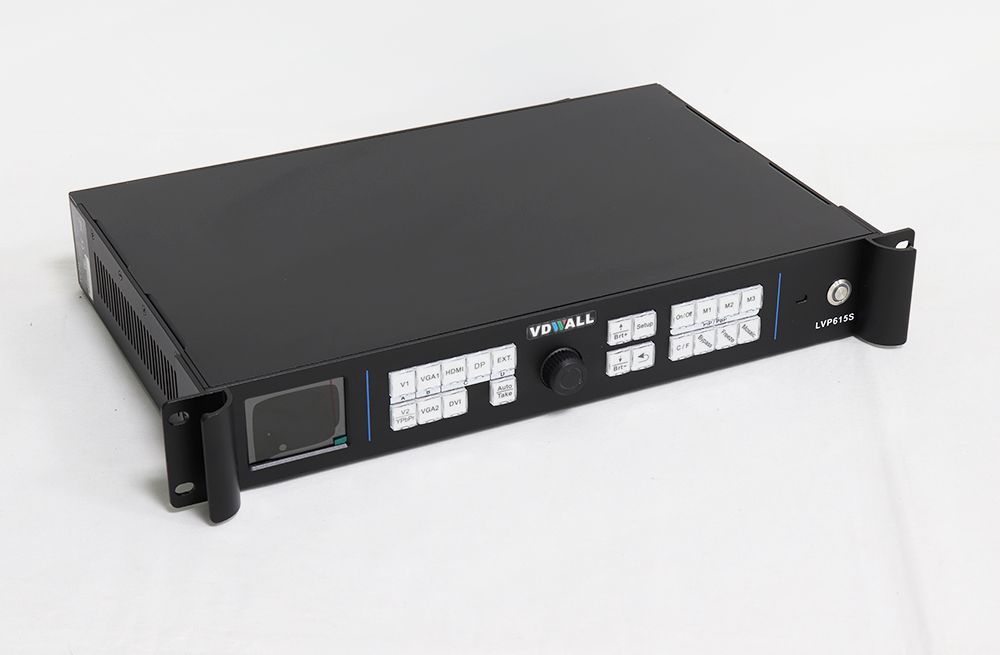

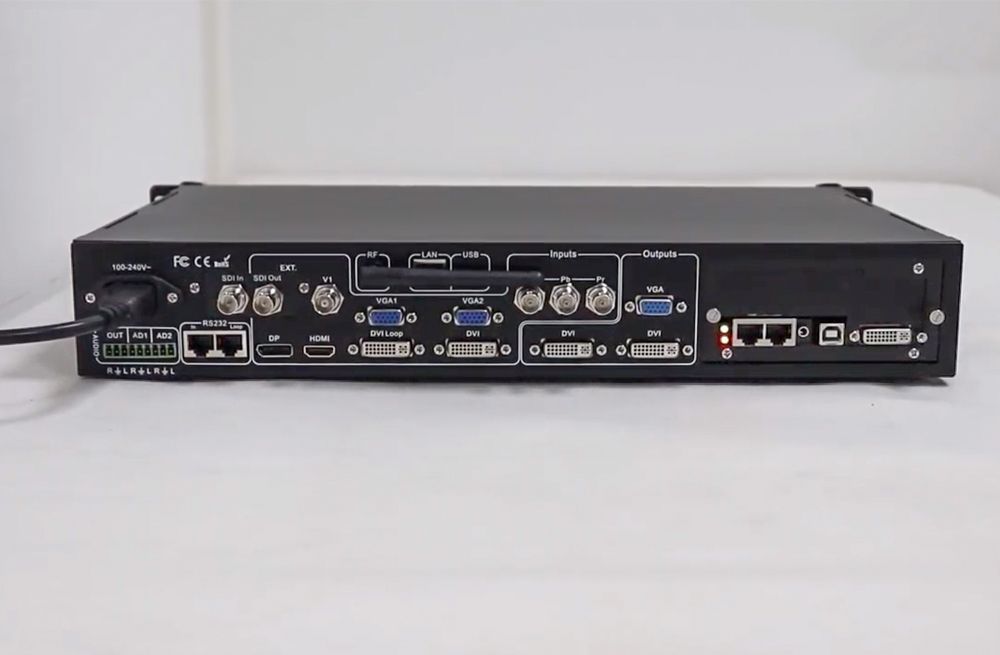

Vdwall LVP615S HD Video Processor Key Features:
1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two signal switching ways: one button to switch and pretake + Take switching
3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals
4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display
5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
6. User define output format to reach maximal horizontal width 3840 or vertical height 1920
7. User define DVI EDID to realize pixel-to-pixel display
8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.
9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi
Vdwall LVP615S HD Video Processor Parameter:
Inputs |
||
Nums / Type |
3×CVBS 1×S-Video |
|
Video system |
PAL / NTSC |
|
Composite Video |
1V(p_p)/ 75Ω |
|
S-video Scope / |
Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω |
|
VGA Format |
PC(VESA) |
≤2048x1152@60Hz |
VGA Scope / Impedance |
R、G、B = 0.7 V(p_p)/ 75Ω |
|
DVI Format |
SD / HD(CEA-861) |
≤1920x1080@60Hz |
PC(VESA) |
≤2048x1152@60Hz |
|
HDMI 1.3 Format( HDCP ) |
SD / HD(CEA-861) |
≤1920x1080@60Hz |
PC(VESA) |
≤2048x1152@60Hz |
|
YPbPr Format |
SD / HD(CEA-861) |
≤1920x1080@60Hz |
YPbPr Scope / Impedance |
Y= 1.0V(p_p)/ 75Ω |
|
SDI format |
SDI-SMPTE 259M-C |
576i @50Hz 480i @60Hz |
HD-SDI |
HDSDI-SMPTE 292M |
≤1920 x 1080@50Hz / 60Hz |
AUDIO Scope / Impedance |
2.0Vp-p / 10KΩ |
|
Input Connectors |
VGA:15pin D_Sub( Female ) |
|
Outputs |
||
Nums / Type |
1×VGA(RGBHV) |
|
VGA / DVI Format |
1024×768@60Hz / 75Hz |
|
VGA Scope / Impedance |
R、G、B = 0.7 V(p_p)/ 75Ω |
|
Output Connectors |
VGA OUT:15pin D_Sub( Female ) |
|
Others |
||
Control |
Panel Button / Knob / RS232 |
|
Power |
100-240VAC 35W 50 / 60Hz |
|
Operating Temp |
5-40 ℃ |
|
Humidity |
15-85% |
|
Dimensions(Package) |
145 mm (height) ×370mm (width) ×535mm (length) |
|
Weight(G.W.) |
5.0 Kg |
|
Weight(N.W.) |
3.2Kg |
