The E80 receiver card is a cost-effective product launched by Carlite to better help customers save costs, reduce failure points and lower failure rate. Based on the full use of the technical advantages of the universal receiver card, the HUB75 adapter board, which is the most common in the market, is integrated into the receiver card, which is more reliable, more trouble-free and more affordable on the premise of guaranteeing high quality display effect.

$15.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

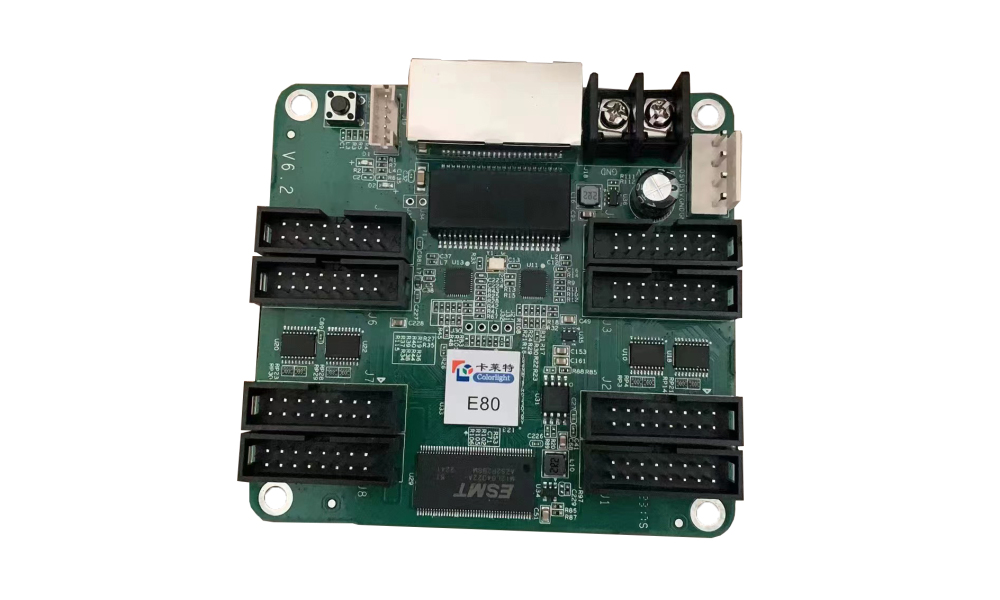

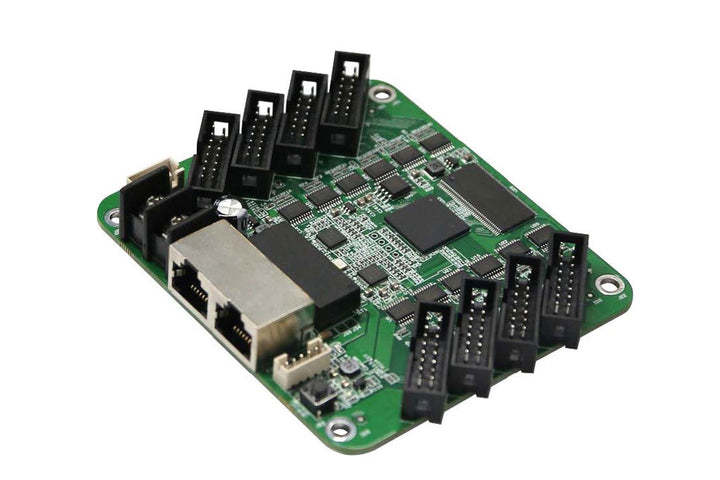

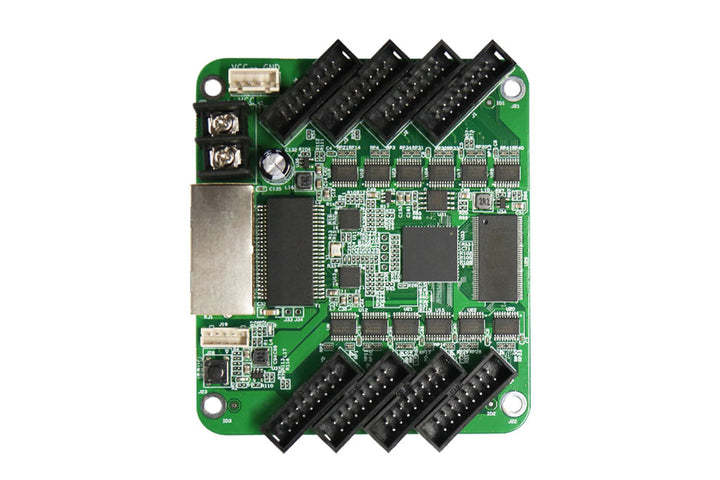

E80 LED Receiving Card

With the integration of HUB75, there is no need for an adapter board, which is more convenient and less costly.
Fewer pluggable connections, fewer points of failure and lower failure rates.
Support conventional chips to achieve high refresh, high grayscale and high brightness.
Better detailing to eliminate darkening of a row, reddish low gray, ghosting, etc. caused by the design of the unit panel.
Support high-precision integrated point-by-point correction of chromaticity and brightness.
Support for all conventional chips, PWM chips and lighting chips.
Support static screen, any scan type between 2 and 64 sweeps.
Support arbitrary sampling, support for data offset, can easily implement a variety of shaped screen, spherical screen, creative display.
Single card supports 16 groups of RGB signal output.
(a) Support for a large carrying area.
Support DC 3.3V~6V ultra-wide operating voltage.
Supports the full range of Carlite sending devices

Specification Download：
E80SpecificationV4.2.1_1677659301
