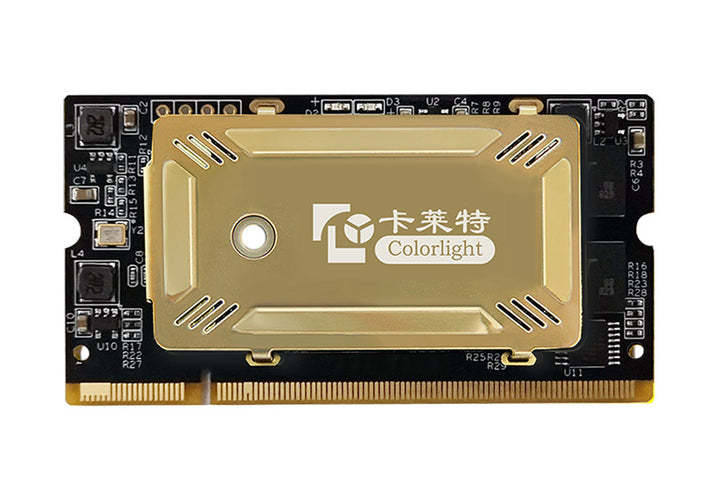

I9+ LED Receiving Card

The i9+ is a small, high-end universal receiver card from Carlet, measuring just 67.60 x 35.46mm.
The i9+ adopts the DDR2 SODIMM interface, which can be easily integrated into the adapter board or the display unit board. The display module is highly integrated, and the design of the display unit board and structure is more flexible and convenient.
The i9+ has all the features of the current mainstream receiving card, and has developed a series of practical and powerful functions for high-end displays, bringing value-added points to customers' products and enhancing product added value. The i9+ is perfect for high-end rental displays and small-pitch LED displays.

· Single card supports 32 sets of RGB signal parallel output;
· Single card with a maximum load of 512 × 512 pixels;
· Support HDR;
· Support low latency;
· Support brightness and chromaticity integration point-by-point correction, multi-batch calibration;
· Support low light and high gray;
· Support color temperature adjustment and color gamut adjustment;
· Support color reproduction;
· Support repair technology;
· Support any pumping, drawing, and pumping;
· Support smart module: store correction coefficient, module parameters, etc.
· Support cabinet temperature, humidity, power supply monitoring and fan control;
· Support network cable status monitoring;
· Support any scan type between 1~64 scans;
·Support DC 3.3V~6V ultra wide working voltage;
· Support Carlet's full range of sending devices.

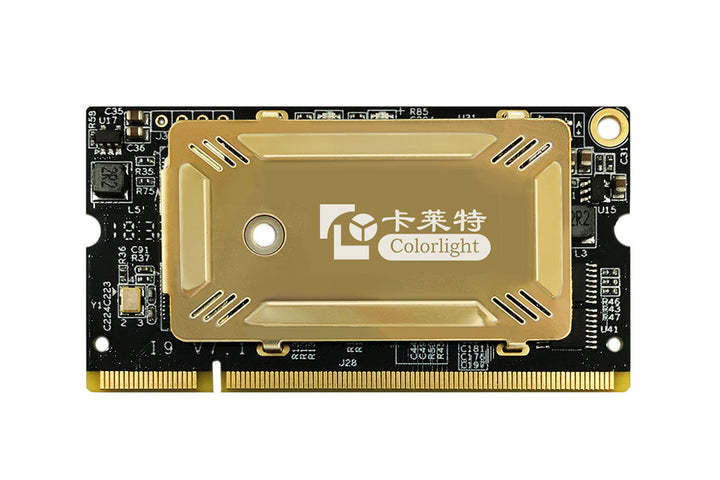

I9 LED Receiving Card

i9 receiver card is Colorlight specially introduced for general project, featuring a small size with 68*36mm; It adopts DDR2 SODIMM interface, which can easily integrated into the HUB board or unit plate of LED display.It supports 30bit video input, meets the HDR@4K standard.

·Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance
·Supports 30bit video input, meets the HDR@4K standard
·Supports 32 sets of RGB signal parallel output
·Loading capacity: 384*256 pixels
·Supports brightness and chromaticity point-by-point calibration with 14bit accuracy
·Improved grayscale performance at low brightness
·Supports color temperature and gamut adjustment
·Supports highlight and sorting
·Seam compensation
·Low latency
·Fast upgrades and fast send out calibration coefficients
·Supports smart module to save calibration coefficients and other information on module
·Temperature, humidity, power supply voltage monitoring on cabinet and fan control
·Supports LED point-by-point error detection of module
·Supports LCD panel display
·Supports dual card backup and dual power backup
·Supports any pumping point, and realize creative displays like shaped display, spherical display, etc.
·Compatible with all series of Colorlight sending devices

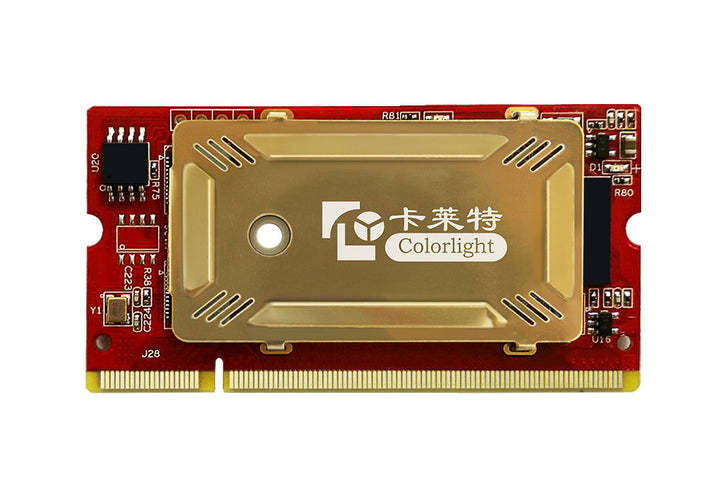

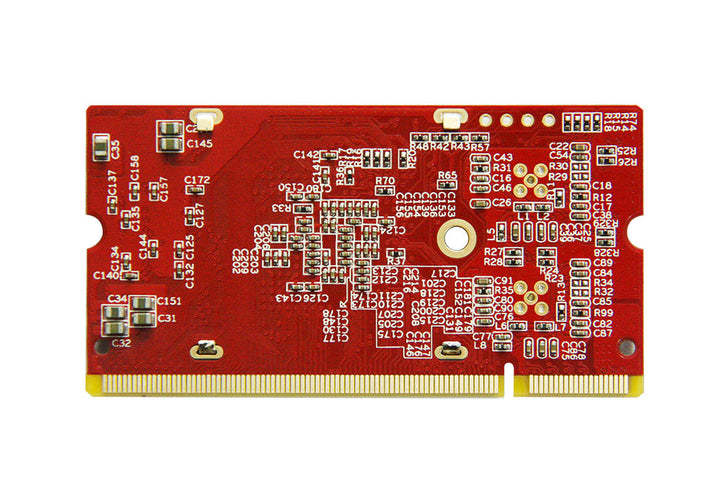

I6 LED Receiving Card

i6 receiving card is specially design for high-end project, which not only can greatly improve the visual performance but also bring convenience for maintenance job. Since it was produce, it supported many big event like Australian Open 2016, 2016 Detroit Auto Show etc.

·Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance
·Support 32 groups of RGB signal output
·Loading capacity: 256*256 pixels
·Low latency
·Supports Auto-Calibration
·Seam compensation
·Support 3D display
·Improved grayscale performance at low brightness
·Smart panel marking good for maintenance
·Auto-recognizes sequence of connected receiver cards
·High-precision point-by-point calibration in the Brightness and the chromaticity
·Supports smart module to save calibration coefficients and other information on module
·Temperature, humidity, power supply voltage monitoring on cabinet and fan rotating control
·Cable Detection
·Supports receiver card backup and power supply backup
·Various freeform display designs like spherical display, creative display, etc.

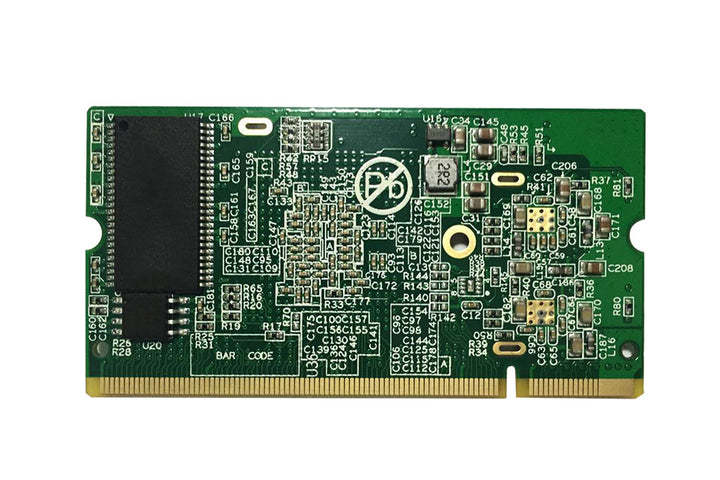

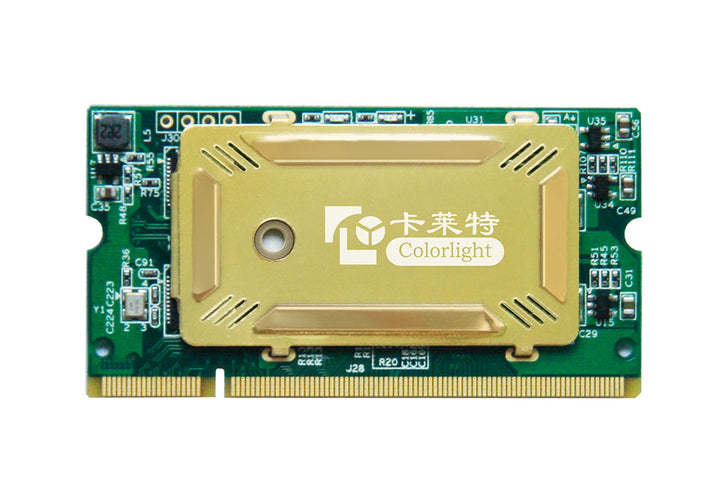

I5 LED Receiving Card

i5 receiver card is Colorlight specially introduced for general project, featuring a small size with 68*36mm; It adopts DDR2 SODIMM interface, which can easily integrated into the HUB board or unit plate of LED display. i5 has all the functions of the mainstream receiver card. Besides, it has also support 32 groups of RGB signal output, which easily fit with all the mainstream LED module.

·Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance
·Support 32 groups of RGB signal output
·Loading capacity: 256*256 pixels
·High-precision point-by-point calibration in the brightness and chromaticity
·Support any scan mode from static to 1/32 scan
·Support wide working voltage of DC 3.3V-6V
