1. ColorLight 5A-F Receiving Card support two working modes, Synchronous and Asynchronous mode.
2. 5A-F contains 2GigaBit onboard memory in each card to store offline content.

$60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

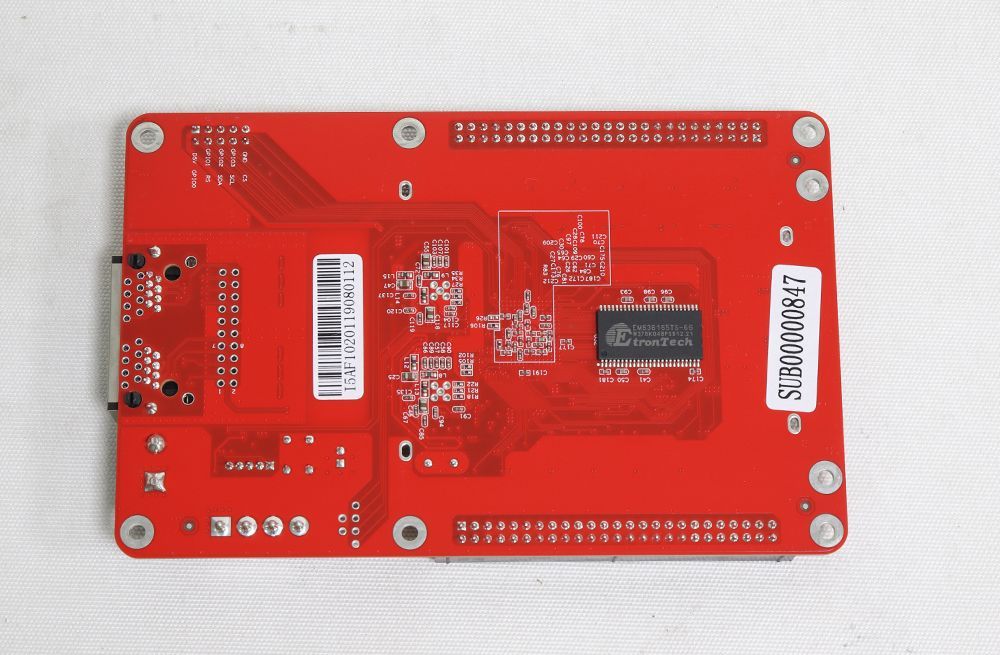

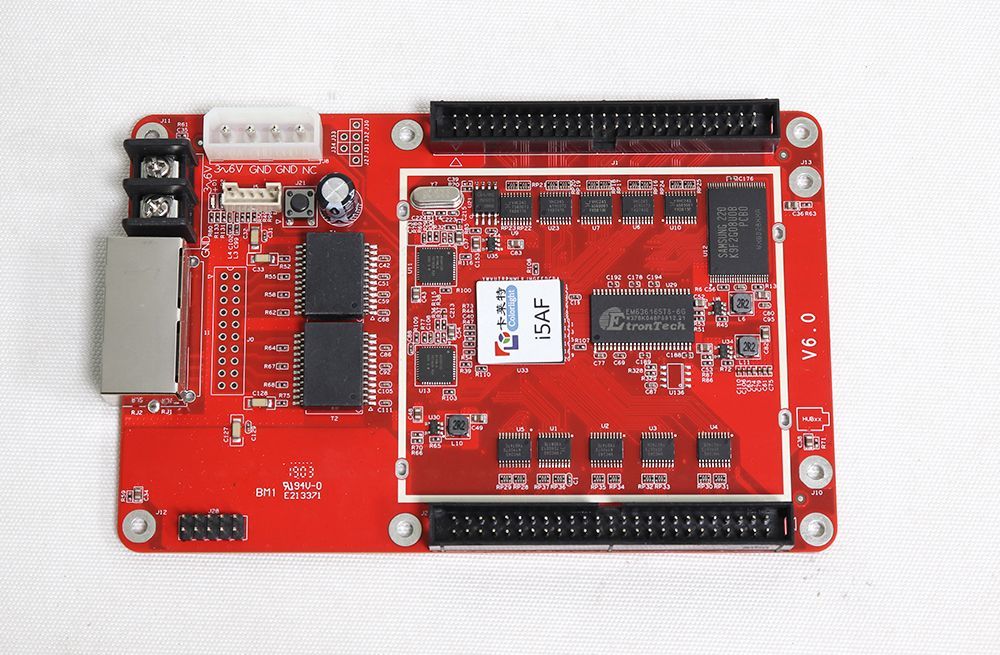

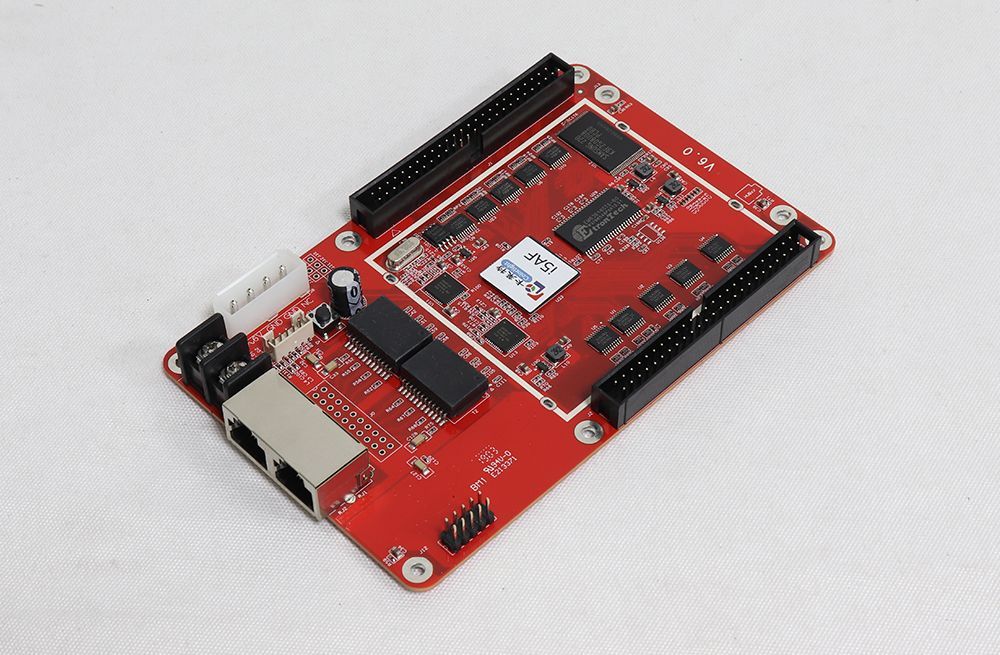

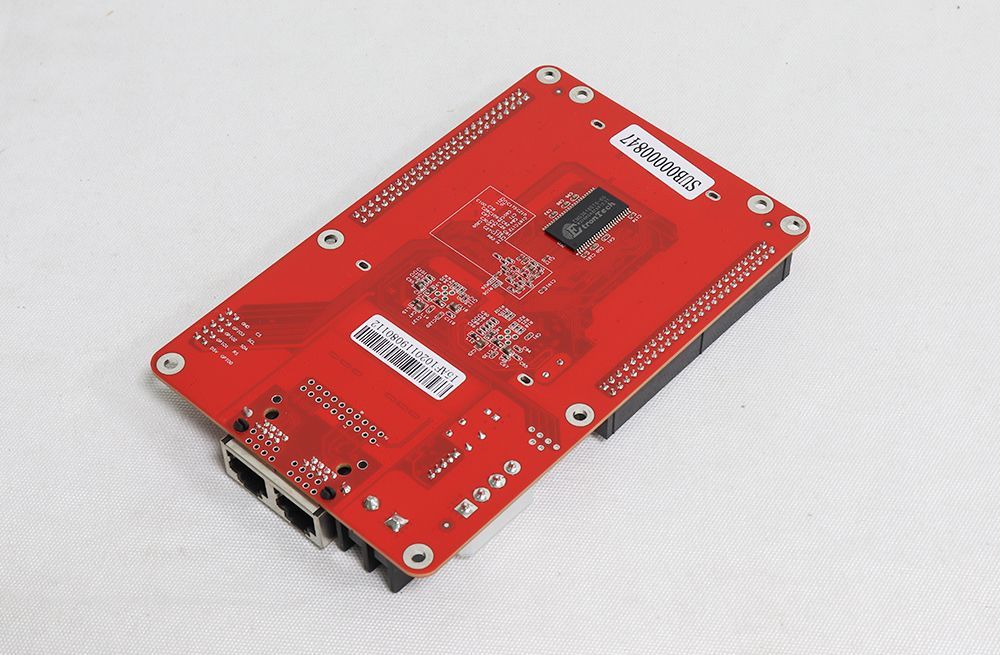

Features of Colorlight 5A-F Dual Mode LED Display Receiving Card:

5A-F Receiving Card support two working modes, Synchronous and Asynchronous mode, which can be switched to each other freely and conveniently.
5A-F Receiving Card can be used not only as a synchronous system, but also as an asynchronous system. The Special design ensures displays running
more secure and never breaking down. 5A-F contains 2GBit onboard memory in each card to store offline content. If the sending signal is interrupted,
synchronous system will automatically switch to the asynchronous mode, playing the recorded content, and loop playback, that ensures uninterrupted
playback display screen. 5A-F LED receiver, welcomed by customers, is widely used to the stadium, advertising, exhibition, demonstration, bidding and
other occasions.

• Support two working modes, Synchronous and Asynchronous mode, which can be freely switched. Ensure displays never break down.
• Contains 2Gbit onboard memory in each card to store offline content.
• Particularly suitable for stadium, advertising, exhibition, demonstration, bidding and other occasions.
• Superior display quality: high refresh rate, high color depth, and high brightness with the conventional chips.
• Supports all types of display module of the mainstream products (5A means any row, any column, any scan, any chips, and any shape).
• The use of more advanced algorithms, so that the receiving card to maximize the use of resources in order to improve display quality.
• Supports for high-precision pixel-by- pixel calibration in the Brightness and the chromaticity.
• Support for large area display.
• Professional design and strict testing to ensure high quality and reliable.
• Supports all conventional sending card of ColorLight, such as T7 sending card, Q7 HD LED sender card, Gigabit NIC, DMB, etc.

Specifications of Colorlight 5A-F Dual Mode LED Display Receiving Card:

Parameters	RDA5F
Board size	Length 143mm,width 93mm
Power consumption	3W
Current	0.6A
Input voltage	DC 5V±10%
Working temperature	-30℃~85℃
Transportation temperature （storage level ）	-50℃~125℃
Weight	100g
Antistatic ability	2KV
Module specification	Any row, any column within 8192 pixels, can custom more large module
Scanning mode	Any scan from static to 1/32 scan
Chip support	Conventional chip, PWM, lighting chip (please confirm before order)
Module pumping-point	Support any pumping-point
Data serial transmission	Support parallel or serial
HUB board data exchange	Support exchange, delay and splicing
Grey-scale	1 -65536
Serial frequency	1KHz~41.3Mhz
Control area (single card)	Full color, 1/8 scan : 512*128
Correction area (single card)	256*256 pixels
cascade card numbers (single cable)	65536PCS
The communication distance between the key controller and the card, the card and the card	CAT5 cable≤140M CAT6 cable≤170M Optical cable≧20M
Cascade control area	65536*65536 pixels
Refresh rate	Related to scanning mode, static : 64×64module, 4096 grayscale: 4000Hz in maximum
Sending equipment	Sending card or NIC
Temperature sensor	With
Relay	With
Network upgrade	Support
Network port exchange	Support
Double backup	Support
Virtual pixel	Synchronous/asynchronous systems both support
Compatible transmission equipment	Gigabit switch, gigabit optical fiber converter
