i6 receiving card is specially design for high-end project, which not only can greatly improve the visual performance but also bring convenience for maintenance job.

$41.17

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

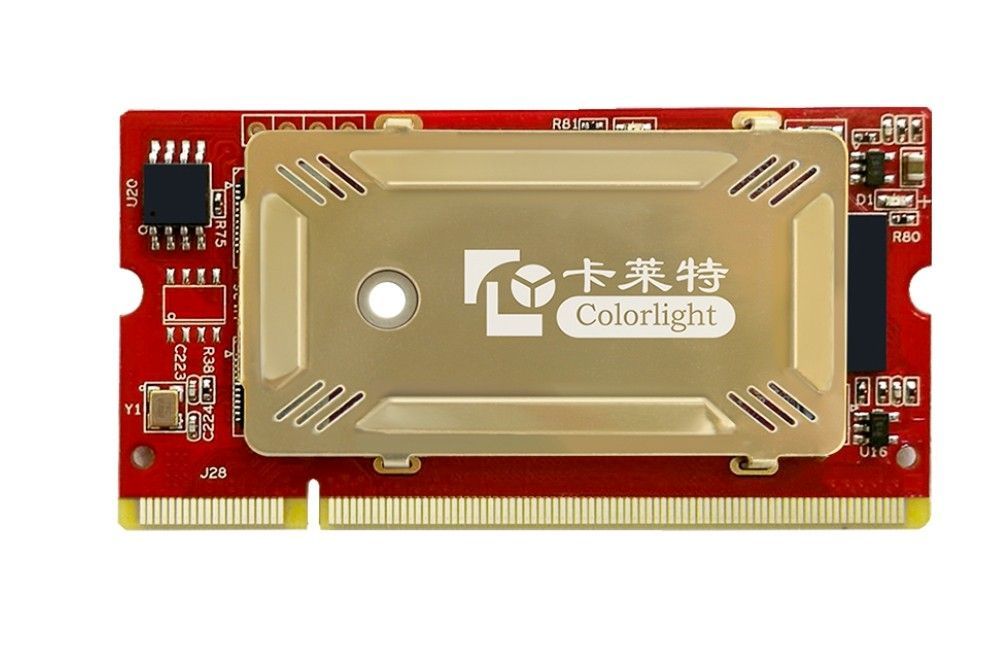

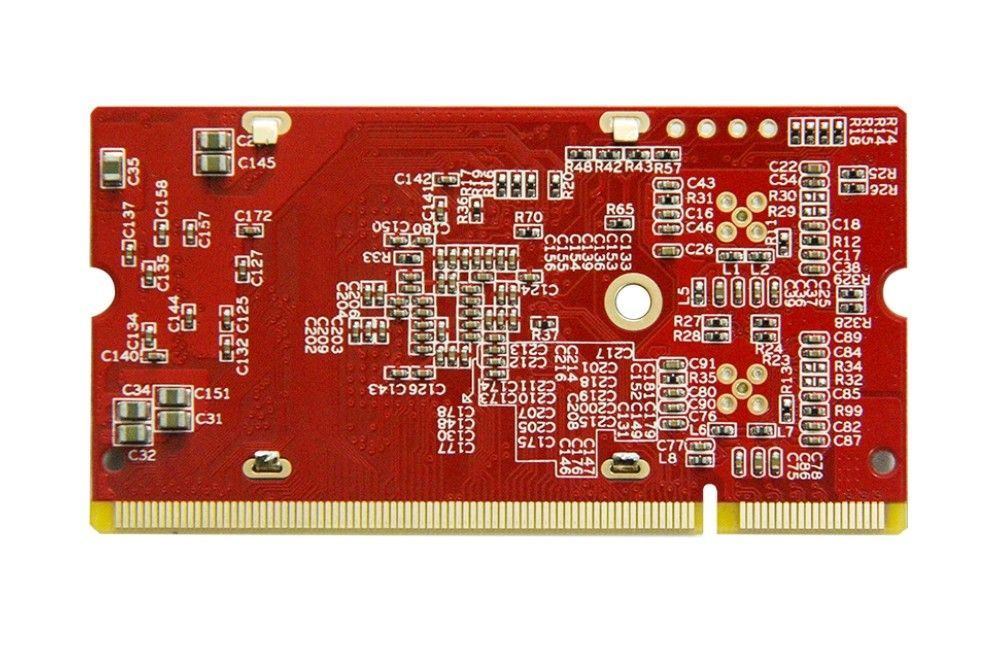

Colorlight i6 LED Display Receving Card Features:

·Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance

·Support 32 groups of RGB signal output

·Loading capacity: 256*256 pixels

·Low latency

·Supports Auto-Calibration

·Seam compensation

·Support 3D display

·Improved grayscale performance at low brightness

·Smart panel marking good for maintenance

·Auto-recognizes sequence of connected receiver cards

·High-precision point-by-point calibration in the Brightness and the chromaticity

·Supports smart module to save calibration coefficients and other information on module

·Temperature, humidity, power supply voltage monitoring on cabinet and fan rotating control

·Cable Detection

·Supports receiver card backup and power supply backup

·Various freeform display designs like spherical display, creative display, etc.

Colorlight i6 LED Display Receving Card Parameters:

Control system parameters
Sending device	All of Colorlight’s sending devices
Capacity	Full-color: 256*256 Pixels
Cascade Control Area of the Largest Region	65536*65536 Pixels
Network Port Exchange	Supported, arbitrary use
Gray Level	Maximum 65536 Levels

Display module compatibility
Chip Supports	Supports conventional chips, PWM chips, lighting chips and other mainstream chips
Scan Mode	Two scanning methods to support refresh rate multiplier
Scan Type	Supports static sweep to 1/32 scan
Module Specifications Support	Supports 4096 pixels within any row, any column
Cable Direction	Supports route from left to right, from right to left, from top to bottom, from bottom to top
Data Sets	32 RGB data sets
Data Folded	Supports 1~8 any discount to improve refresh rate.
Data Exchange	32 sets of data any exchange
Module Snapshot	Supports any pumping point

Compatible device and interface type
Communication Distance	UTP cable≤140M CAT6 cable≤170M OPTIC FIBER transmission distance unrestricted
Compatible with Transmission Equipment	Gigabit switch, fiber transceiver, optical switches
Size	67.6*32.9mm
Input Voltage	DC 3.3V~6V
Rated Current	0.6A
Rated Power	3W
Storage and Transport Temperature	-50℃~125℃
Operating Temperature	-25℃~75℃
Body Static Resistance	2KV
Weight	9.5g

Monitoring function (in conjunction with multi-function card)
Temperature Monitoring	Cabinet temperature monitoring between -25℃ ~ 75℃ 1 port for each card
Humidity Monitoring	One port to monitor receiver card humidity range with 20% ~ 95% 1 port for each card
Bit Error Monitoring	Monitoring the total number of data packets and error rate to check network quality
Supply Voltage Monitoring	5 ports for supply voltage monitoring
Smoke Monitoring	One port for smoke monitoring and can work with relay to activate an alarm and turn off the display screen 1 port for each card
Full Color LCD Display Panel	Supports full color LCD display panel

Pixel level calibration
Brightness Calibration	Supported
Chromaticity Calibration	Supported

Other features
Hot Backup	Supports loop backup, double sender backup,
Shaped Screen	Supports various freeform display, spherical display, creative display, etc. through the date arbitrary offset
Program Backup	Proprietary redundant firmware backup on card no matter how to use, upgrade, send parameters, continuous functionality
