ColorLight S6F Intelligent HD LED Control Box , support DVI & HDMI digital source Input, Sync/ Async video source input switchable, 1920x1200pixel driving capacity, equipped with fiber optic interface, high bandwidth, long distance transmission, Fast Ethernet cluster control, excellent display effect , Low-light high-gray, front panel quick control, sending speed correction factor, easy to upgrade.

$558.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

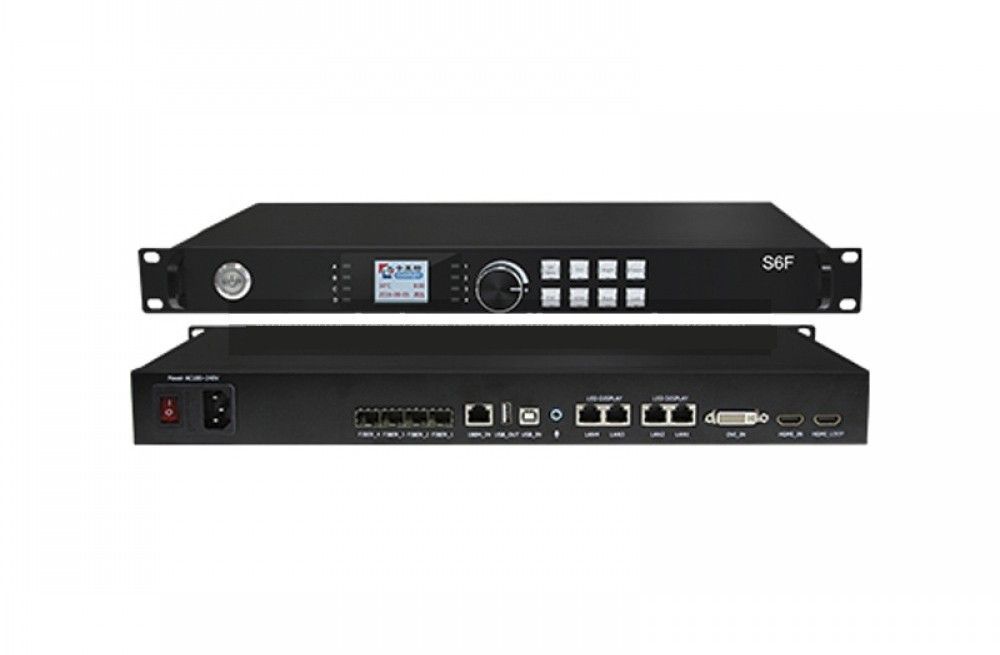

ColorLight S6F Intelligent HD LED Control Box Description:

ColorLight S6F Intelligent HD LED Control Box , support DVI & HDMI digital source Input, Sync/ Async video source input switchable, 1920x1200pixel driving capacity, equipped with fiber optic interface, high bandwidth, long distance transmission, Fast Ethernet cluster control, excellent display effect , Low-light high-gray, front panel quick control, sending speed correction factor, easy to upgrade.

ColorLight S6F Intelligent HD LED Control Box Features:

1)Support HDMI and DVI video signal input and HDMI signal LOOP output;
2) Input resolution: up to 1920 * 1200 pixels, support arbitrary resolution settings;
3)Single card maximum load area: 2.3 million pixels, the widest up to 4096 points, up to 2560 points;
4) 4 Gigabit Ethernet output, support up and down, left and right and mixed arbitrary stitching;
5) Supports 4 * 2.5G single-mode fiber module output (optional);
6)Dual USB2.0 high-speed communication interface for computer debugging and card-level cascade;
7)Support multi-transmitter arbitrary splicing cascade, strict synchronization;
8)Support front panel function keys for quick operation control;
9) Support DVI / HDMI signal switching;
10) Supports networked Fast Ethernet port control.
11) Supports low light and high gray;
12)Support HDCP;
13)Supports full range of Caltech Receiver Cards

ColorLight S6F Intelligent HD LED Control Box Specification:

Video source interface
Interface Type	1 * DVI + 1 * HDMI + 1 * HDMI_LOOP
Enter the resolution	Maximum support 1920 * 1200 pixels. Supports any input resolution within this resolution.
Video source frame rate	Standard 60Hz, and can automatically adapt to frame rate.
Receive video area	You can arbitrarily set the location of the receiving video source.
Gigabit Ethernet output
Number of network port	4 Gigabit Ethernet ports
Net mouth control area	Single send maximum load 2.3 million pixels, the widest support 4096 points, the maximum support 2560 points.
Transmission distance	Ultra-five network cable ≤ 140M; six network cable ≤ 170M; fiber line without restrictions.
Network stitching	Four network ports can be done up and down or left and right of any stitching. In pixels.
Data transfer format	According to the gigabit network frame format. And CRC checksum is added.
Fiber optic interface
Number of interfaces	4 optical interfaces (single-mode fiber module optional)
Transmission distance	Unlimited
Fiber optic interface	Dual LC interface
Connect the device
Support for receiving ards	Carlett full range of receiving cards
Support for peripherals	Multi-function cards, fiber optic transceivers, Gigabit switches....
Specifications
Board size	1U standard chassis
Input voltage	AC 100 ~ 240V wide voltage
Rated power consumption	8W
weight	2kg
Man - machine interface
Configuration parameters interface	USB 2.0 * 1, network control Fast Ethernet * 1
Shortcut button	Support
LCD screen	Support, you can display the device status and settings information
The input information is displayed	Display frame rate, blanking and dot clock information. Used to diagnose the status of the graphics card and video processor.
Button to adjust the brightness	Button to adjust the brightness, and is real-time work, and automatically saved in the sending card.
Adjust parameters in real time	Gamma value, control area, control parameter. WYSIWYG.
Brightness color temperature adjustment	Support
Intelligent detection system	Support DVI video interface information detection, send card temperature monitoring.
Accessibility
Multi-card cascade	Support, dual USB interface to achieve multi-card cascade, support synchronous parameter settings, readback and so on
Multi-screen settings	Support simultaneous control of different specifications of the multiple display
Background play	Supported (extended mode)
Network Bit Error Rate Detection	Detection screen body, the receiving card between the network cable quality and fault diagnosis.
