This is a hybrid plug-in intelligent image splicing processor series products, which can display multiple static and dynamic images on different LED screens to achieve multi-window superimposed, roaming display.
This series of products support multiple host scales to meet the different sizes of LED screen drive display; support a variety of input and output signal formats mixed with use to meet the diversified needs of the video source; support any position of the window, overlay, roaming, high-definition graphics, rolling subtitles, to meet the different needs of the scene video image or big data presentation; support pre-surveillance and display back to achieve visualization Control management is simple, clear, efficient and fast; optional high-performance redundant power supply module, that is, when another power supply module fails, it will not affect the equipment's power supply, the equipment can still work normally and effectively.

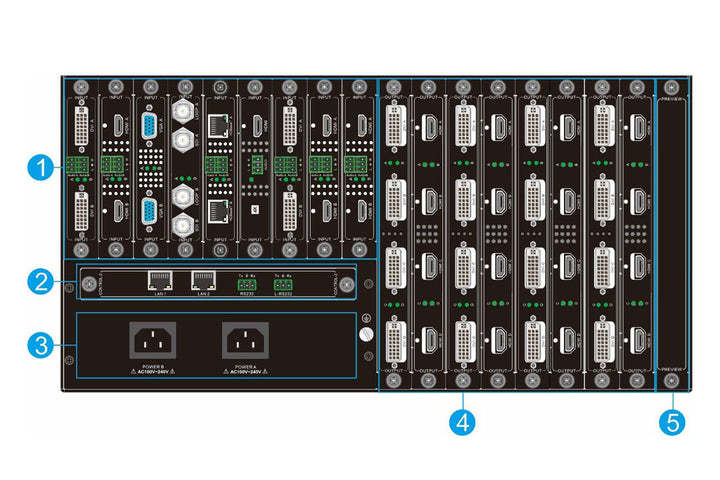

Input board type (one card, two channels): 4K HDMI/HDMI/DVI/VGA/SDI/HDBaseT
Output board type (one card, two channels, four layers): HDMI/DVI
Output board type (one card, four channels, two layers): HDMI/DVI
Unique LED image processing algorithm effectively solves the problems of image disconnection and missing pixels in LED screen display
Ultra-low latency screen processing, less than 30ms
Multi-port signal input and real-time sync output for Ultra HD video, compatible with Nvidia Mosaic and AMD Eyefinity technology
Support ultra-high-definition bottom image display, at the same time, support different screens to upload different bottom images, presenting different bottom image effects.
Customizable beacons for fast traceability to video sources
Variable scrolling character display, parameters such as font, size, color, position, transparency, static and dynamic can be set.
Have the function of displaying back and premonitoring to achieve the visual operation management of the device.
Input resolution up to 4K@30Hz, output resolution can be customized to meet different specifications of LED screen display.
Support multi-group control management, up to four groups.
Open, overlay and roam at any position to effectively present different video screens or big data information
When debugging the LED screen, there is no need to connect the processor output port and the LED transmitter card in a fixed order, the internal output signal can be adjusted through the software platform to quickly correspond to the mapping of the output port to the LED screen.
Support user hierarchy, decentralized management, each in its own role
Support scene management, one-click scene recall, scene rotation and scene snapshot display.
Support configuration backup and recovery, backup information can be downloaded and saved for backup, power failure memory function, no need to worry about configuration loss.
Supports high temperature alarm and intelligent fan adjustment for the host machine
Supports authorization management of equipment lifetime in the field
The device can be controlled in various ways, including RS232 command control and LAN client software control, and supports serial or network port control of third-party devices.

Size:
4U mainframe: (L*H*D W436.6mm x H178.0mm x D320.0mm)
5U Mainframe: (L*H*D W436.6mm x H219.0mm x D320.0mm)
9U mainframe: (L*H*D W436.6mm x H400.0mm x D320.0mm)
