Overview

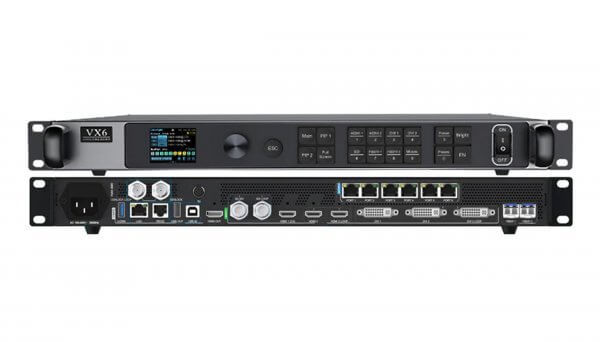

VX6 is Colorlight’ s video controller, which integrates the functions of UHD images processing and LED display control. The device supports the input of 4K and 2K video signals, with a maximum loading capacity of 3.93 million pixels (up to 16,384 pixels in width, and 8,192 pixels in height). In terms of output, it supports Ethernet port and fiber port output, which can satisfy different demands. With strong video processing and sending capacity, VX6 is applicable broadly in such scenarios as medium and high-end rental, stage control, radio and television, film shooting, etc.

Features

 Input
Video input port:
-1×HDMI2.0
-1×HDMI1.4 (IN&LOOP)
-1× DVI (IN&LOOP)
-1× DVI
-1×3G-SDI (IN&LOOP)
-1× 10G fiber port (Fiber1)
Up to 4096×2160@60Hz input.
Support 8bit/10bit video signal.
The HDMI2.0 port supports HDCP2.2 standard and is compatible with HDCP1.4 standard.
The HDMI1.4 and DVI ports support HDCP1.4 standard.
23.98Hz to 240Hz frame rate.
 Output
6× Gigabit network ports.
-Maximum loading capacity of 3.93 million pixels, with up to 16,384 pixels in width and 8,192 pixels in height.
2X 10 Gigabit fiber ports.
-Fiber1 copies 6× Ethernet ports.
-Fiber2 copies/backups 6× Ethernet ports.
1× HDMI1.3 as previewing or video output port.
23.98Hz to 240Hz frame rate.
Support both Ethernet port backup and controller redundancy.
 Video processing
Support 8bit and 10bit video processing.
Video signal cropping, switching, and broadcasting-level scaling.
Support 3X layers display, as well as independent adjustment of size and position of layers.
Low latency,no latency achievable in Bypass mode.
Support HDR display.
Support Genlock and LOOP through.
 Color adjustment
Image adjustment: Support adjusting the hue, saturation, contrast, and brightness compensation of output.
Brightness adjustment: Support adjusting brightness by Ethernet port groups.
Color temperature adjustment: Support adjusting color temperature accurately and RGB component individually.
 Audio input/output
HDMI port supports audio input.
Support audio output via multi-function card.
 3 working modes
Video processor
Fiber optic transceiver
Bypass
 Device control
USB port for control and cascading.
RS232 serial communication protocol.
LAN port for TCP/IP control.

Specification Download:
Colorlight VX6 LED Display Video Controller Specification
