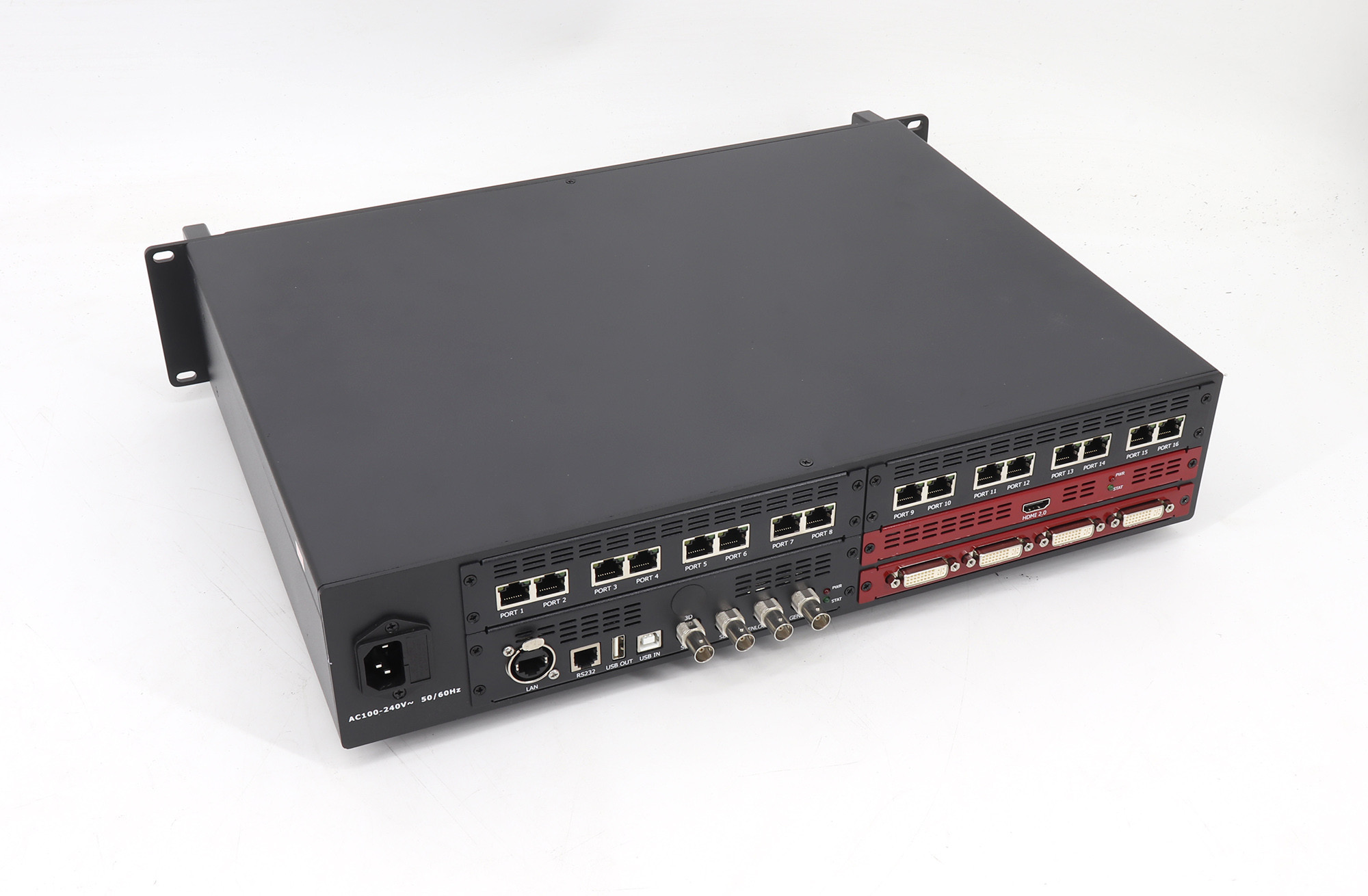

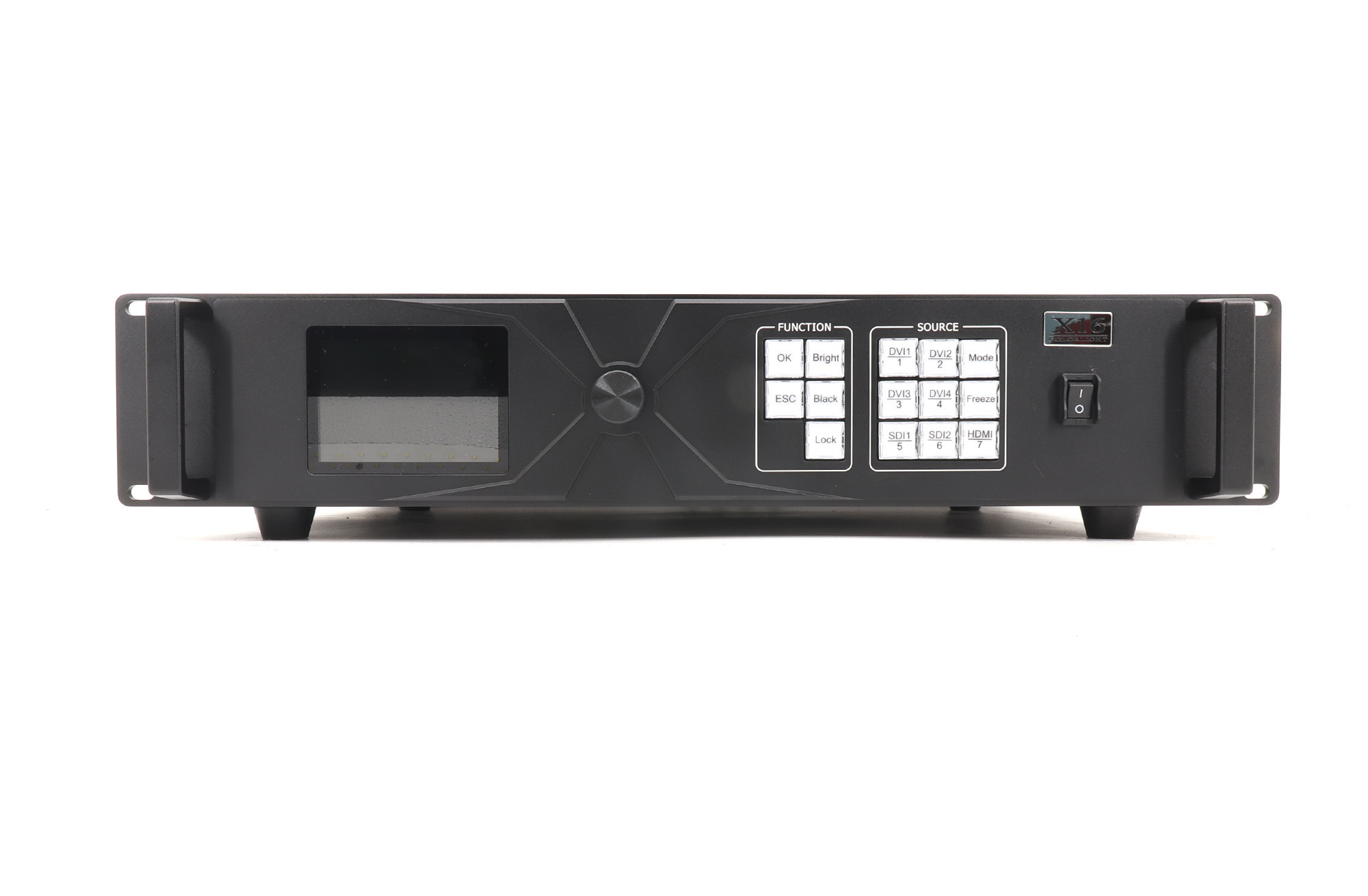

Colorlight X16 Pro  LED Screen Display Processor Overivew:

Colorlight X16 Pro  LED Screen Display Processor is a professional grade LED display control device, with powerful video signal reception, splicing and processing capabilities, the maximum reception 4096 × 2160 pixels 4K digital signal; support for HDMI, DP, DVI, SDI and other digital interfaces, seamless switching between multiple signals; support for splicing, broadcast level scaling, maximum support for 7-screen display.



With 16 Gigabit Ethernet outputs, the X16 PRO can support LED displays up to 8192 pixels wide and 4096 pixels high in a single unit. The X16 PRO also offers a wide range of features for flexible screen control and high quality image display, making it perfect for high-end rental displays and small pitch LED displays.



Colorlight X16 Pro  LED Screen Display Processor Features:

-Supports a wide range of digital signal interfaces, including HDMI 2.0, DP1.2, SDI, DVI.
-Maximum input resolution 4096×2160@60Hz, supports arbitrary resolution settings.
-Up to 10.4 megapixels with a maximum bandwidth of 8192 pixels and up to 4096 pixels.
-Support arbitrary switching of video sources, according to the display resolution of the input image stitching, scaling.
Supports 7-screen display with free adjustment of position and size.
-Support for HDCP 2.2.
-Supports 3D functionality (optional).
Dual USB 2.0 high-speed communication interfaces for computer debugging and arbitrary cascading between the main controller.
-RS232 serial port, used by computers to send serial commands.
-Supports brightness and color temperature adjustment.
-Supports low light and high grey.
-Support for handheld terminal control (app).
-Supports the full range of Carlite receiver cards, multifunction cards, and fiber optic transceivers.


Colorlight X16 Pro  LED Screen Display Processor Parameter:







1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.


2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.


3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.



4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.



5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.


6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.


7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.


8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.


9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.



10. The products ordered will not enjoy return and warranty if their codes are ripped off.



11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineers. Before and after sales 7/24, you can get full support from our engineers, we are proficient in English.
