X16 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 4K@4096×2160 pixels. It supports digital ports (HDMI, DVI, SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and seven-pictures displays.

$1,510.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

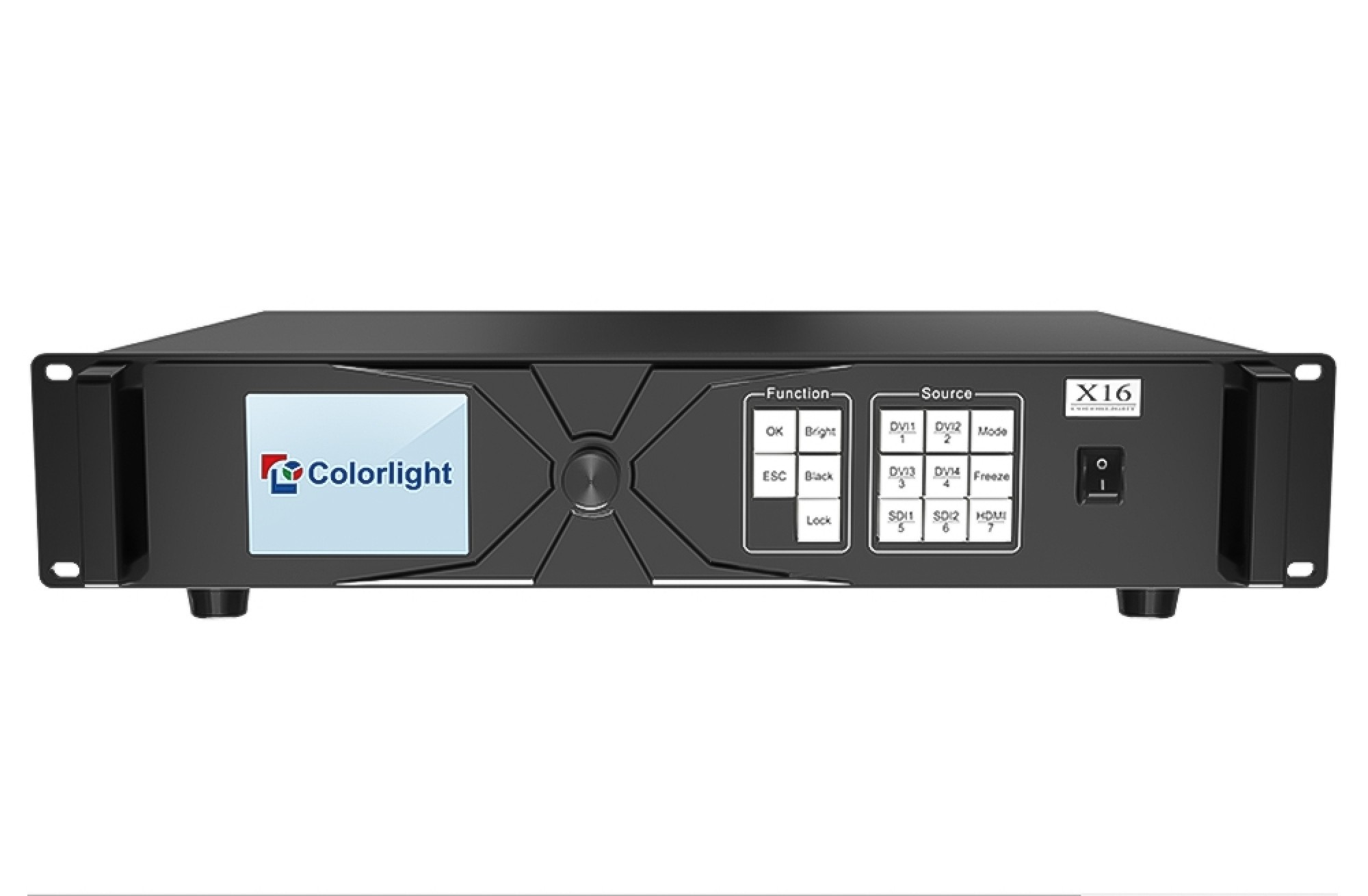

Colorlight X16 Professional LED Wall Panel Controller Box Parameter:

Input Interface
HDMI 2.0	HDMI 2.0 Input
HDMI 2.0	EIA/CEA-861 Standard, in accordance with HDMI 2.0 standard, supports 4096×2160@60Hz, supports HDCP
DVI	4 DVI inputs
DVI	VESA Standard (support 1920×1200@60Hz), supports HDCP
SDI	2 SDI-3G inputs, 1920×1080P

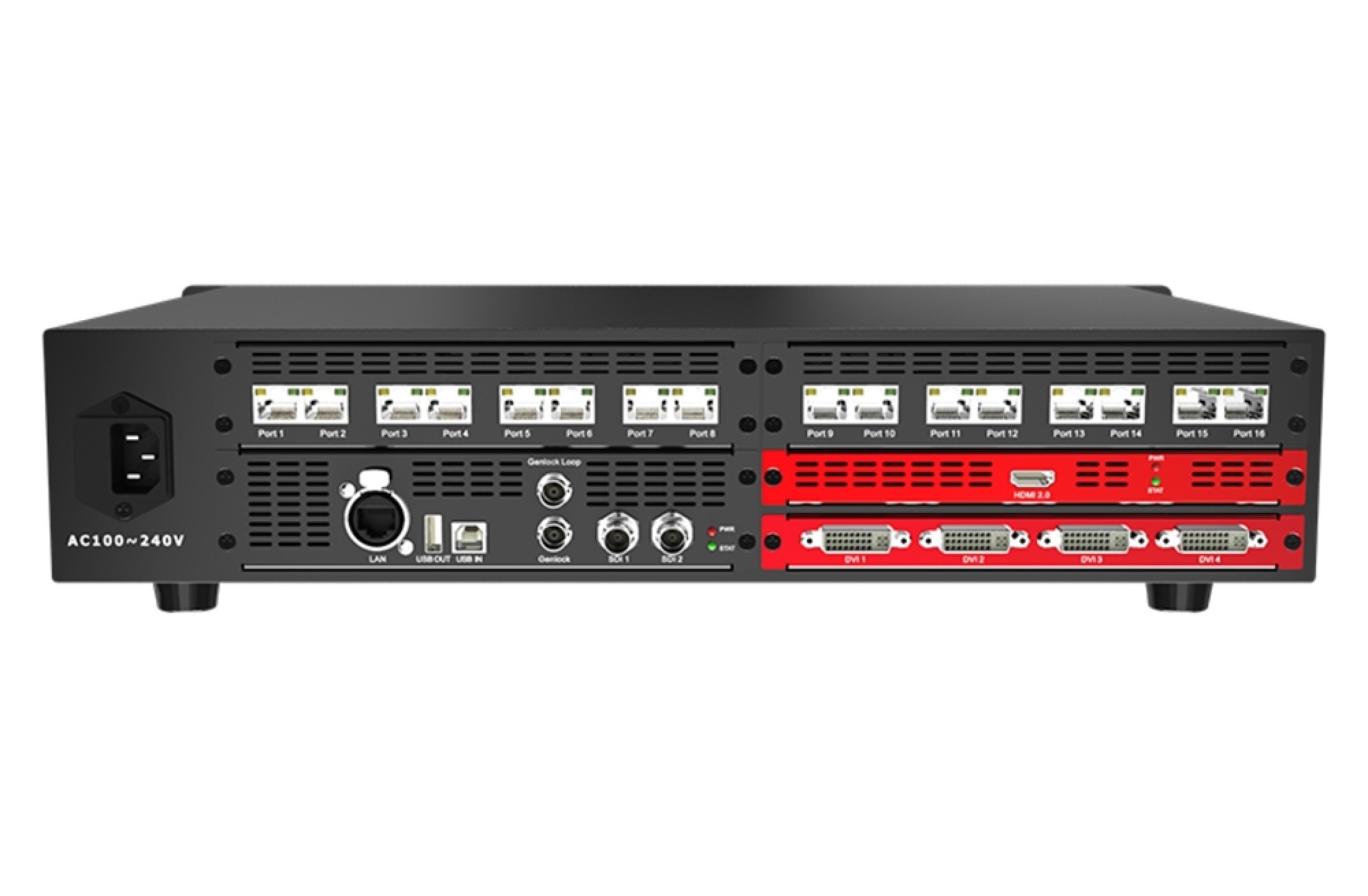

Output Interface
Port1-16	RJ45, 16 Gigabit Ethernet outputs
Controlling Interface
LAN	Network control (communication with PC, or access network)
USB_OUT	USB output, cascading with the next controller
USB_IN	USB input, which connects with PC to configure parameters
Genlock	Genlock signal input ensures synchronism of display image
Genlock Loop	Genlock synchronous signal loop output
4K Input Boards (Optional)
X16 (Standard)	1×HDMI 2.0 + 4×DVI
X16B (Customized)	8×DVI
X16C (Customized)	2×HDMI 2.0
Specifications
Size	2U standard box
Input voltage	AC 100~240V
Rated Power Consumption	80W
Working Temperature	-20~60℃

•Supports various digital signal ports, including 1×HDMI 2.0, 4×DVI, 2×SDI

•Supports input resolutions up to 4096×2160@60Hz

•Loading capacity: 8.88 million, maximum width/height: 8192 pixels

•Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution

•Supports seven-pictures displays, the location and size can be adjusted freely

•Supports HDCP 2.2

•Dual USB2.0 for high speed configuration and easy cascading among controllers

•Supports brightness and chromaticity adjustments

•Supports improved gray-scale performance at low brightness

•Compatible with all receiving cards, multifunction cards, and optical fiber transceivers of Colorlight

Specification Download:

Colorlight X16 Professional LED Wall Panel Controller Box Specification

Colorlight X16 Professional LED Wall Panel Controller Box User Manual
