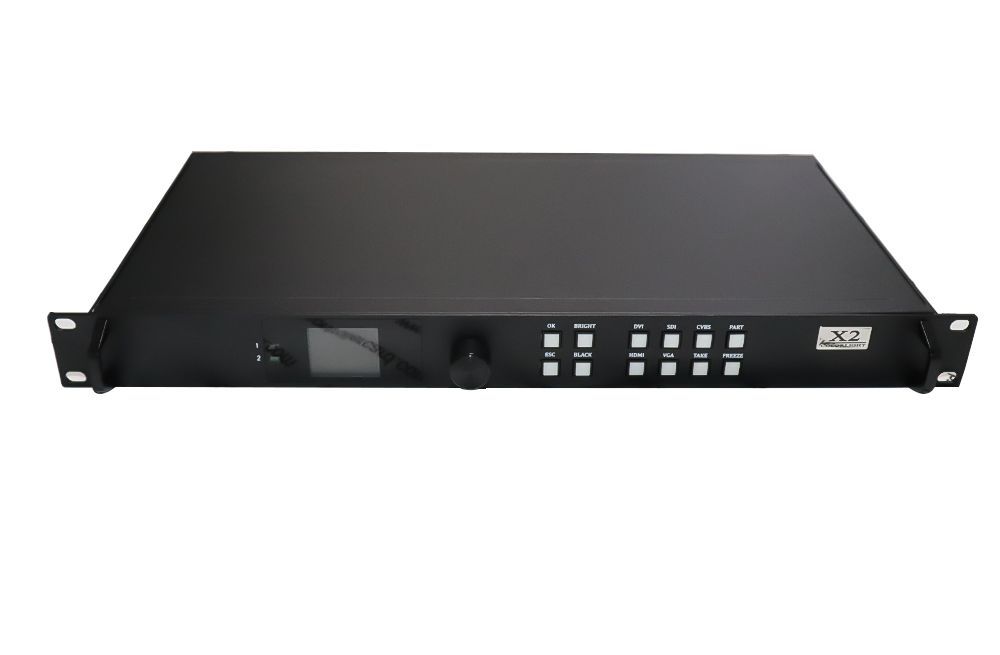

Colorlight X2 professional LED HD display controller box Features

·Video input ports including SDI*1, HDMI*1, DVI*1,VGA*1,CVBS*1;

·Support input resolution up to 1920*1200@60Hz;

·Loading capacity:1.3 million pixels,Maximum Width/Height: 2560 pixels;

·Support arbitrary switching of video input, and the image can be zoomed freely;

·Dual USB2.0 for high speed configuration and easy Cascading;

·Support splicing and cascading among several controllers with synchronization strictly;

·Support brightness and chromaticity adjustment;

·Support improved gray-scale at low brightness;

·Support HDCP1.4；

·Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.

Colorlight X2 professional LED HD display controller box Parameters:

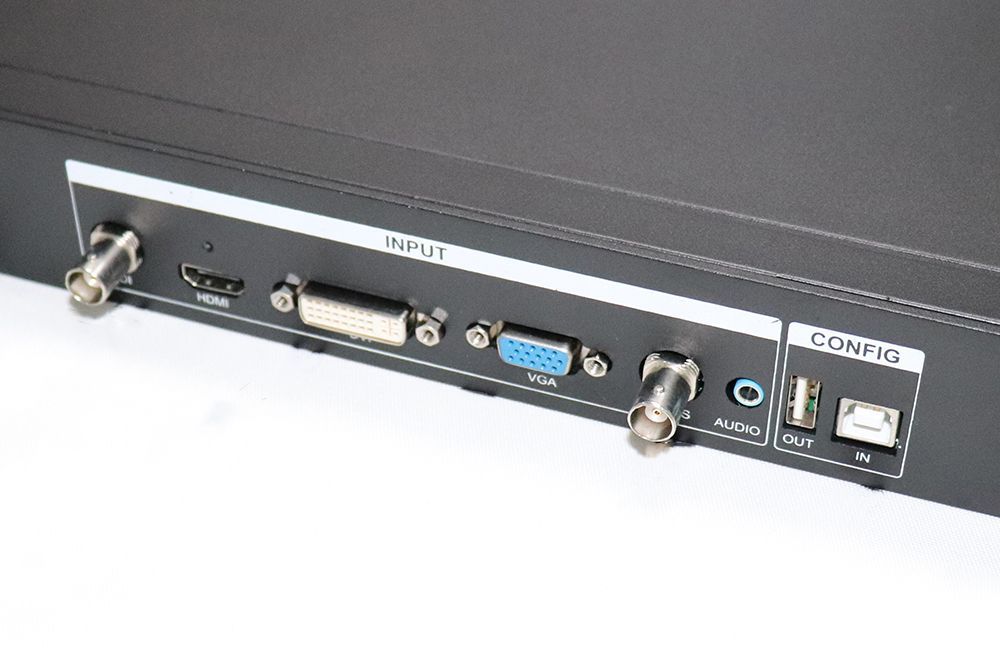

Input Index
SDI	SDI input
HDMI	HDMI input
DVI	DVI inputs
VGA	VGA inputs
CVBS	CVBS inputs
AUDIO	Audio input, input audio signal and transmit to the multifunction card

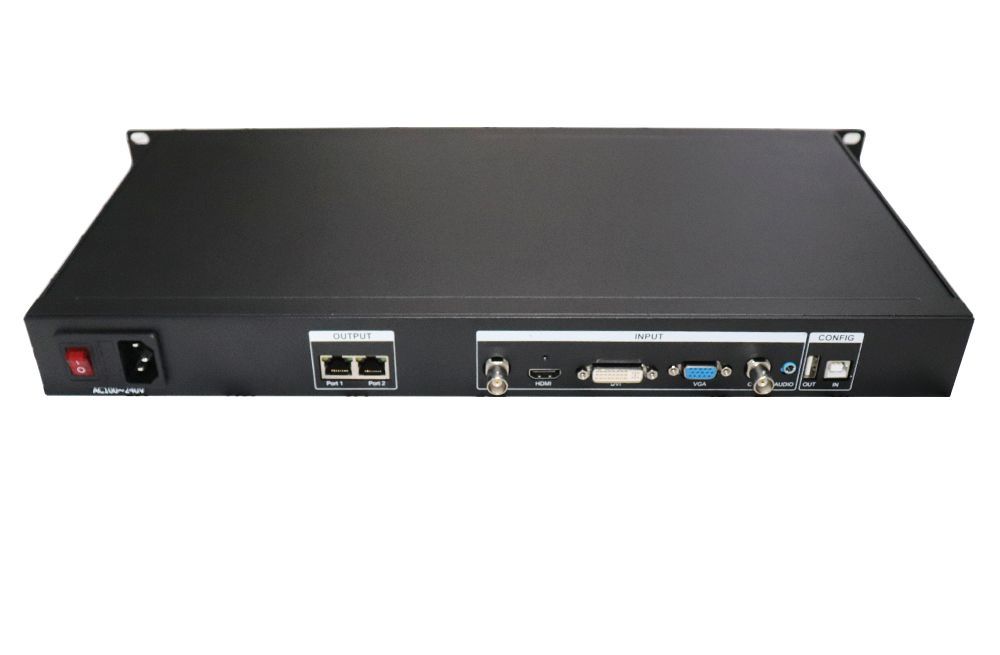

Output Interface
Port 1/2/3/4	RJ45, 4 Gigabit Ethernet outputs

Controlling Interface
USB_OUT	USB output, cascading with next controller
USB_IN	USB input, which connect with PC to configure parameters

Input Index
Port	Number	Resolution Specification
SDI	1	1080P
HDMI	1	EIA/CEA-861 Standard, support 1920*1200@60Hz, support HDCP
DVI	1	VESA Standard(support 1920*1200@60Hz), support HDCP
VGA	1	VESA Standard (support input resolution up to 1920*1200@60Hz)
CVBS	1	PAL/NTSC

Specification of complete machine
Size	1U standard box
Input Voltage	AC 100~240V
Rated Power Consumption	20W
Working temperature	-25℃~80℃
