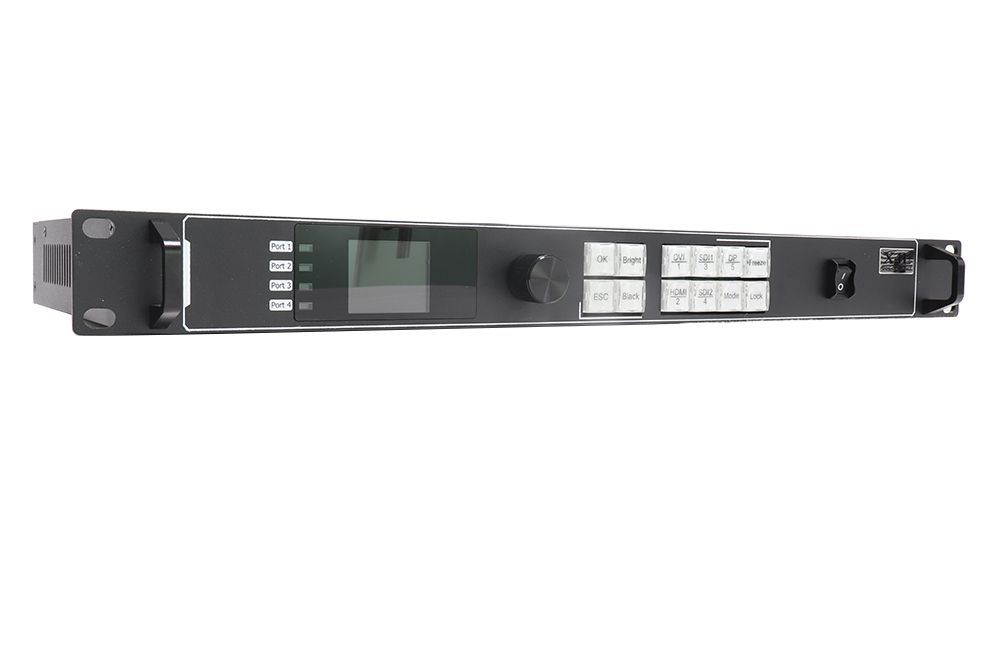

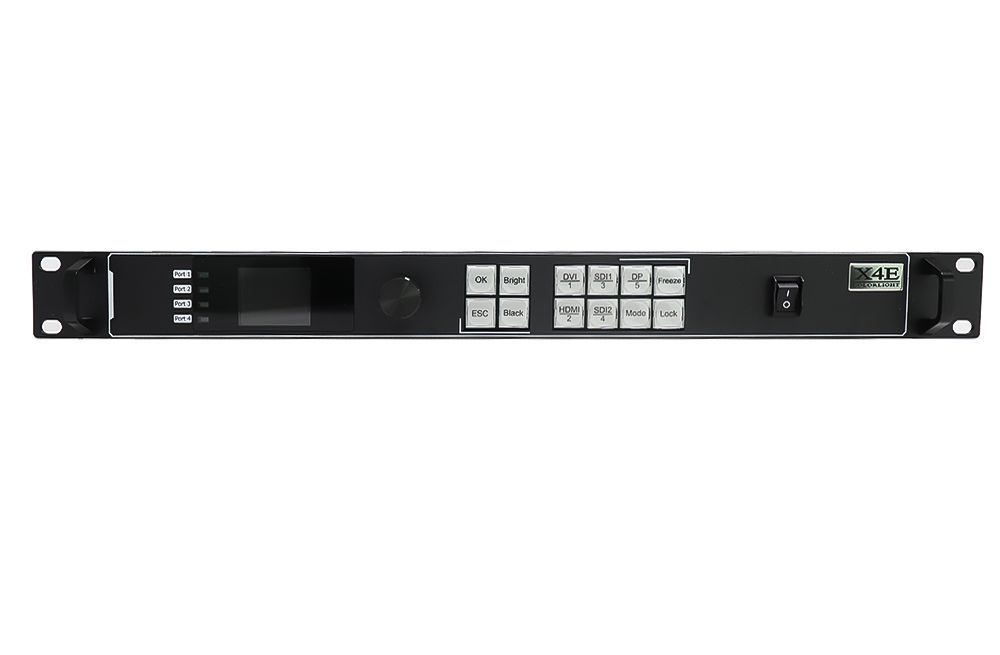

X4e controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI, DP), and seamless switching between signals can be achieved; it supports broadcast quality scaling and multi-pictures display.

$552.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

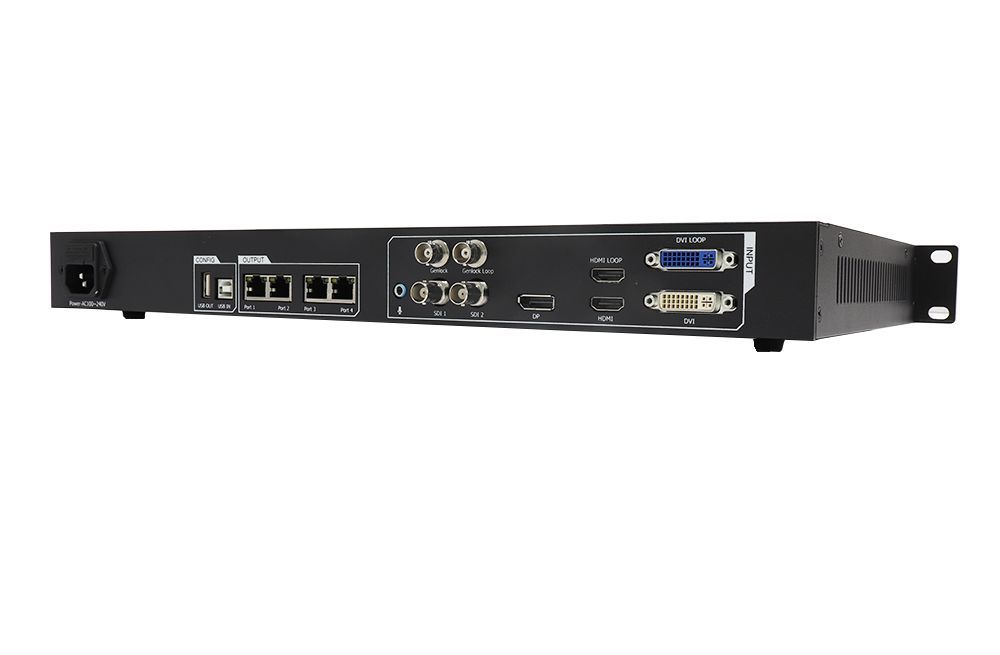

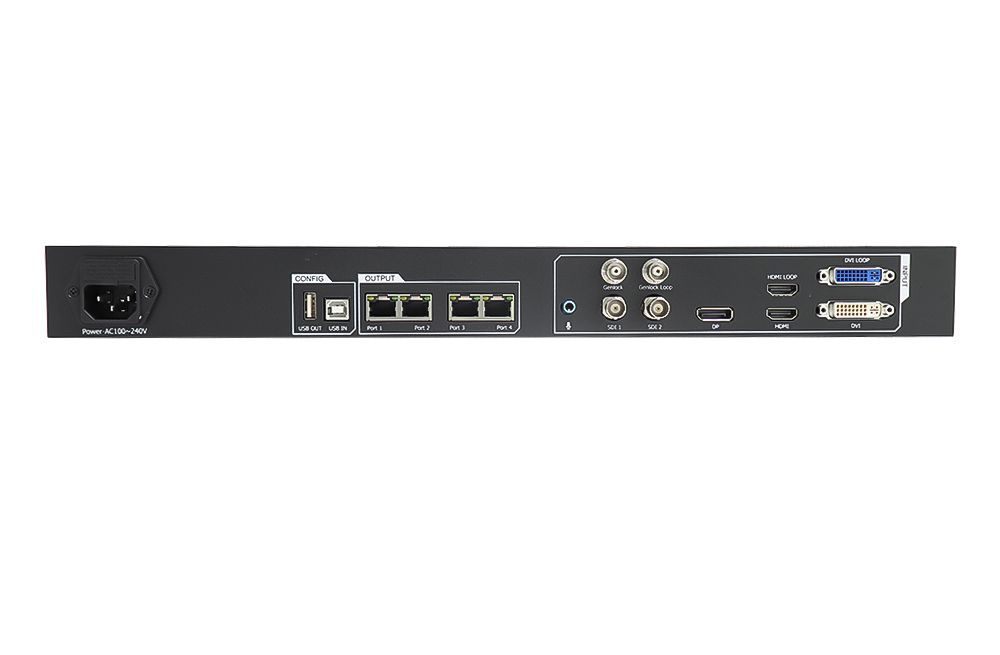

Interfaces
SDI	2 SDI inputs, 1080P
DP	DP input, VESA Standard, support input resolution up to 1920*1200@60Hz
HDMI	HDMI input (with loop), EIA/CEA-861 Standard, support 1920*1200@60Hz, support HDCP
DVI	DVI input (with loop), VESA Standard (support 1920*1200@60Hz), support HDCP
Output Interface
Port1-4	RJ45，4 Gigabit Ethernet outputs
Controlling Interface
USB OUT	USB output, cascading with next controller
USB_IN	USB input, which connects with PC to configure parameters
Genlock	Genlock signal input ensures synchronism of display image
Genlock Loop	Genlock synchronous signal loop output
Specifications
Size	1U standard box
Input Voltage	AC 100~240V
Rated Power Consumption	20W
Working Temperature	-25~80℃

•Support various digital signal ports, including 2×SDI, 1×DP, 1×HDMI (with loop), 1×DVI (with loop)

•Support input resolution up to 1920*1200@60Hz

•Loading capacity: 2.6 million pixels, Maximum Width/Height: 4096 pixels

•Support arbitrary switching and scaling of video source

•Support three-picture display, the location and size can be adjusted freely

•Support HDCP1.4

•Dual USB2.0 for high speed configuration and easy cascading among controllers

•Support brightness and chromaticity adjustment

•Support improved gray-scale at low brightness

•Compatible with all receiving cards, multifunction card, optical fiber transceivers of Colorlight
