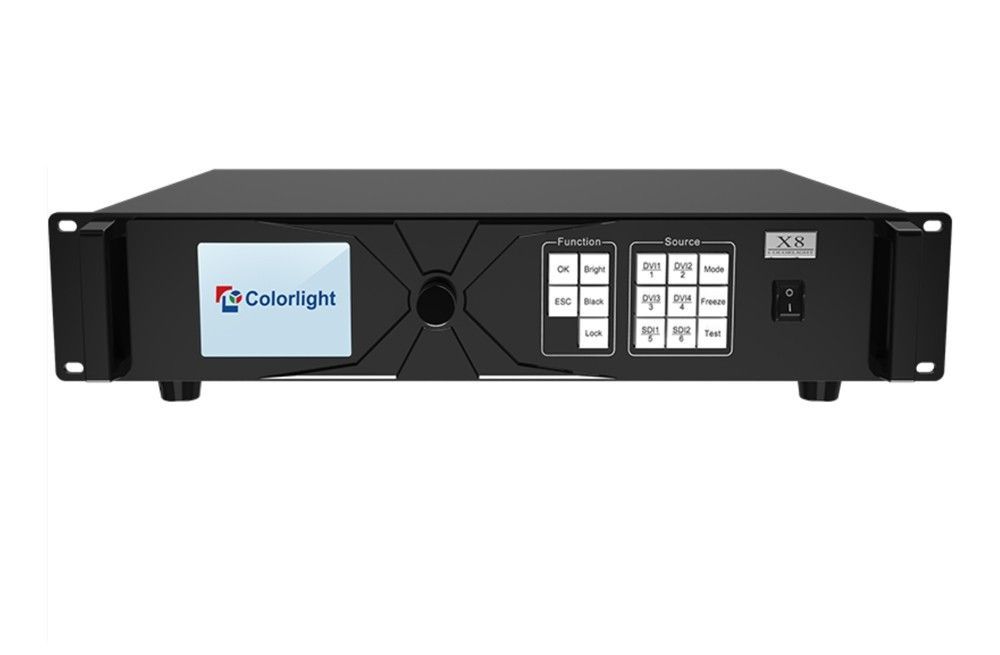

Colorlight X8 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 1920×1200 pixels. It supports digital ports (DVI and SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and five-layers displays.

$1,018.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

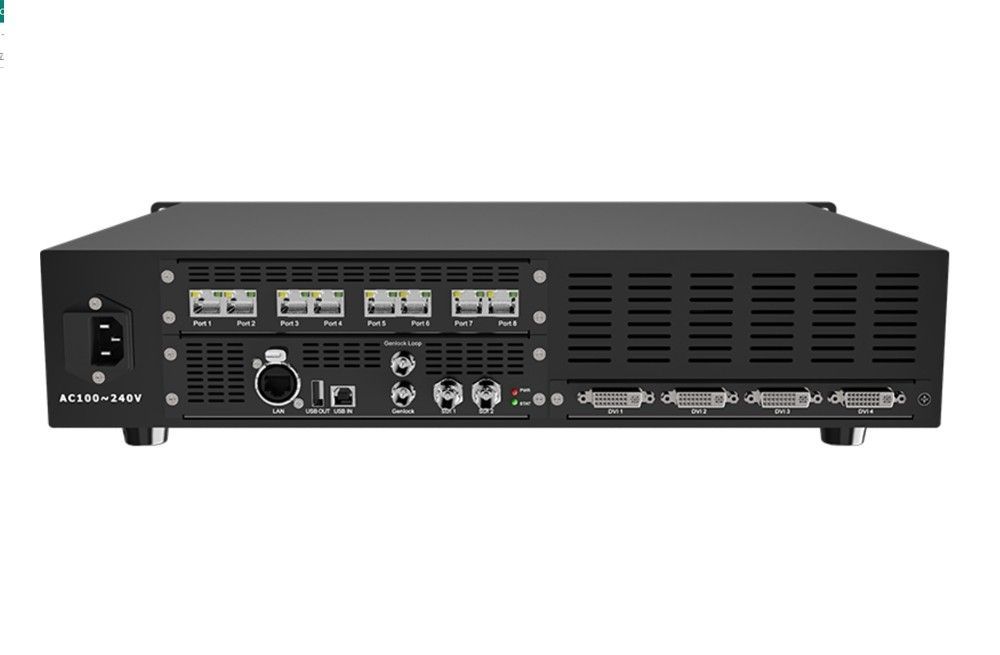

Input Interface
DVI	4 DVI inputs, in accordance with HDMI 1.4 standard
	Supports 1920×1200@60Hz, 1920×1080@60Hz, supports HDCP
SDI	2 SDI inputs, in accordance with SDI-3G standard
	Supports 1920×1080P
Output Interface
Port1-8	RJ45, 8 Gigabit Ethernet outputs
Controlling Interface
LAN	Network control (communication with PC, or access network)
USB_IN	USB input, which connects with PC to configure parameters
USB_OUT	USB output, cascading with the next controller
Genlock	Genlock signal input ensures synchronism of display image
Genlock Loop	Genlock synchronous signal loop output
Specifications
Size	2U standard box
Input voltage	AC 100~240V
Rated Power Consumption	60W
Working Temperature	-20~60℃

•Supports various digital signal ports, including 4×DVI and 2×SDI

•Supports input resolutions up to 1920×1200@60Hz

•Loading capacity: 5 million, maximum width/height: 8192 pixels

•Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution

•Supports five-layers displays, the location and size can be adjusted freely

•Supports 16 kinds of preset modes, the saved preset parameters can be loaded at any time according to needs

•Dual USB2.0 for high speed configuration and easy cascading among controllers

•Supports brightness and chromaticity adjustments

•Supports improved gray-scale performance at low brightness

•Compatible with all receiving cards, multifunction cards, and optical fiber transceivers of Colorlight

Specification Donwload:
X8-Specification
