Name: Colorlight Z6 Pro Professional LED Display Screen Controller
Brand: Shopping LED Screen controller Video processor power supply
SKU: Colorlight Z6 Pro
Price: 18000 USD
Availability: InStock

SKU: Colorlight Z6 Pro

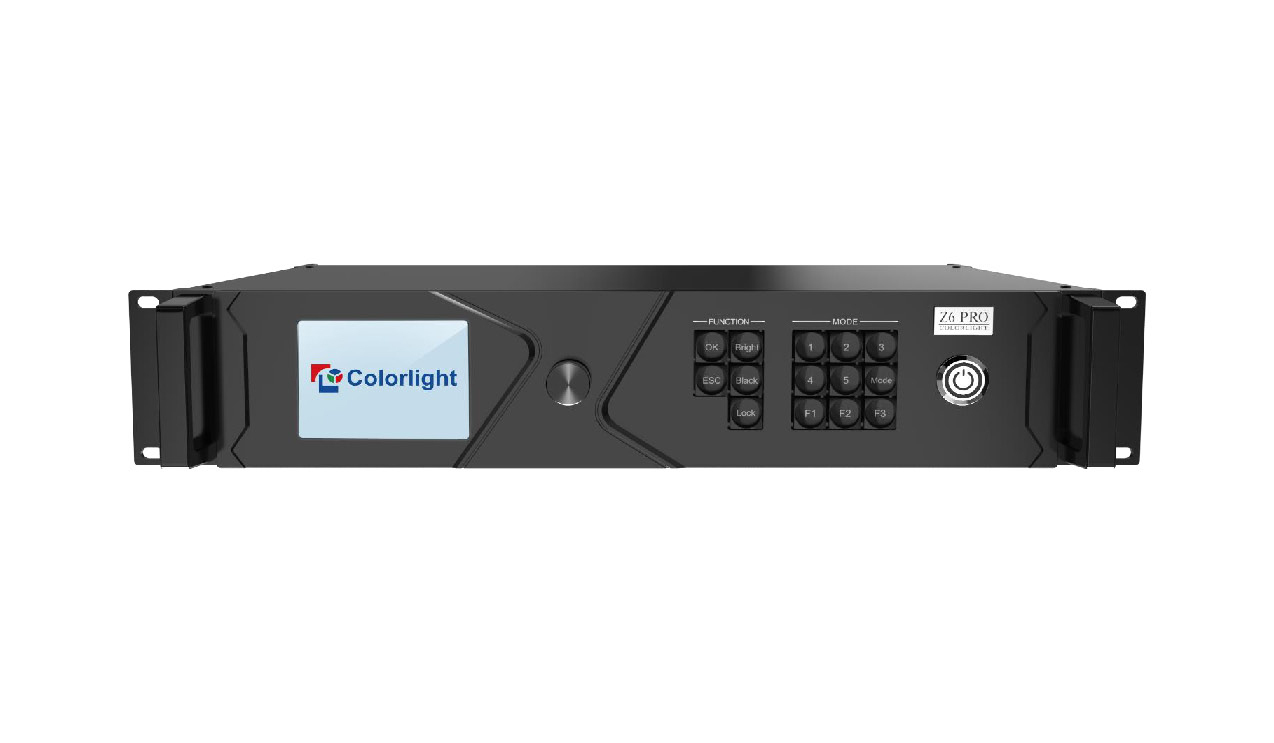

Colorlight Z6 Pro Professional LED Display Super Controller is a professional LED display controller with splicing, sending and processing functions. Z6 PRO has 4K video source input capability, UHD and HDR image processing and transmission. Z6 PRO has four 10G fiber output ports which can be applied to high-end rental display and high resolution LED displays.

$18,000.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Colorlight Z6 Pro Features:

·Supports 4 pcs 4K input board, up to 4096×2160@60Hz resolution per board；

·Supports 3 types of optional 4K input boards, including HDMI/DP, DVI×4, SDI×4;

·4 10G fiber output ports, loading capacity up to 8847360 pixels, maximum width/height: 8192 pixels;

·Low latency processing;

·Supports 16 PIP layers. The location and size can be adjusted freely;

·Supports video source switching, splicing, cropping and scaling;

·Supports HDR;

·Supports 3D video and display;

·Improved gray-scale at low brightness;

·Hue, saturation, contrast adjustment;

·Supports USB, LAN and RS232 control；

·Supports Art-net control.

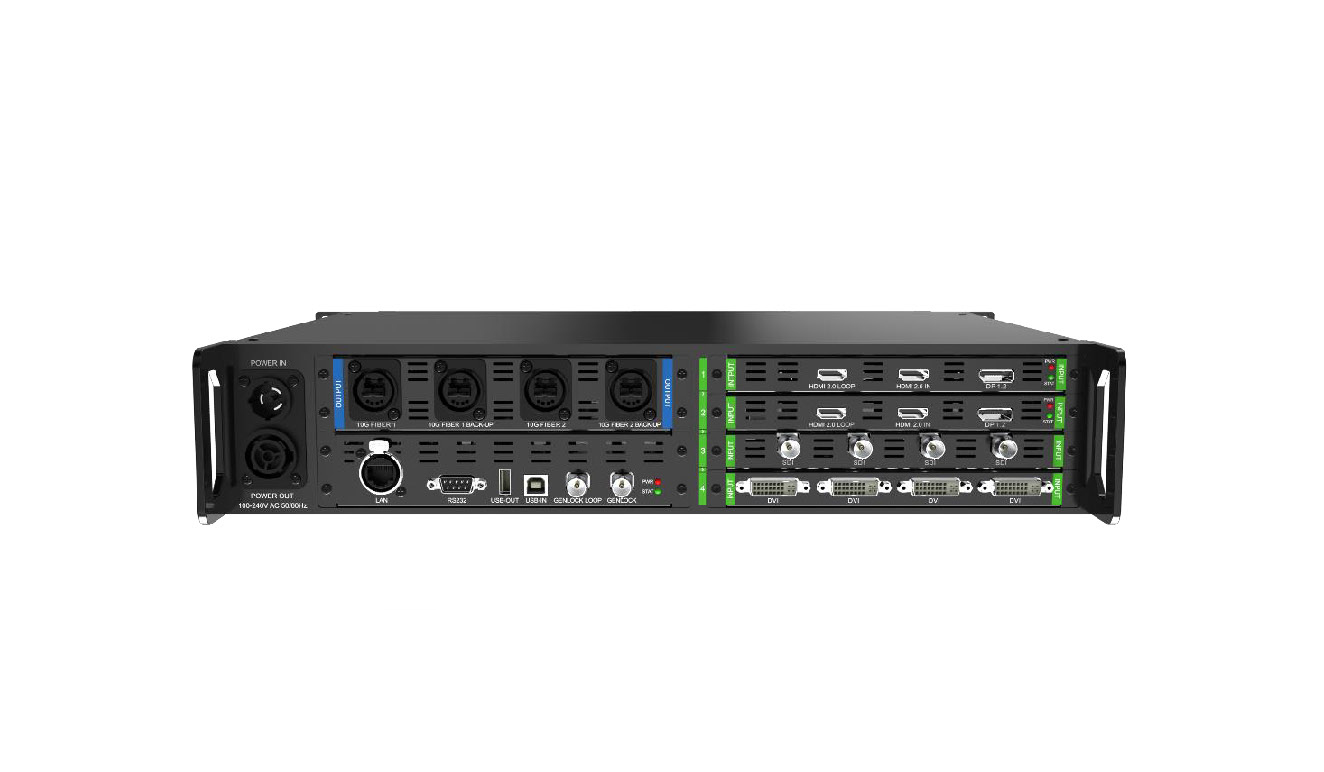

Input Interface
SDI	4 3G-SDI inputs
HDMI	2 HDMI/DP inputs
DVI	4 DVI inputs

Output Interface
10G Fiber	4 channels, 10G fiber output ports, compatible with Neutrik optical CON DUO fiber port and LC-LC fiber port

Controlling Interface
100M Ethernet	100M-Ethernet Control port (communication with PC, or access network), and can be used as Artnet control port
USB_OUT	USB output, cascading with next controller
USB_IN	USB input, which connect with PC to configure parameters
RS232	DB9 port, for commands and control via a central device
GENLOCK	Genlock signal input ensures a perfectly synchronous image display
GENLOCK_LOOP	Genlock synchronous signal loop output
3D sync	Connect to 3D emitter （Optional）

Input Index
Port	Number	Resolution Specification		Remarks
SDI	4	1080p, 1080i, 720p
HDMI /DP	1 HDMI2.0+LOOP， 1 DP1.2；	HDMI ： EIA/CEA-861 standard, HDMI-2.0 compliant, HDCP2.2 compliant DP：DP-1.2 standard and HDCP1.3 compliant	3840×2160@60Hz	8bit: supports RGB444, YCbCr444, YCbCr422, YCbCr420 10bit: supports YCbCr422, YCbCr420
			1920×1080@60hz	8/10bit: supports RGB444, YCbCr444, YCbCr422, YCbCr420
			4096×2160@60Hz	8bit: supports RGB444, YCbCr444, YCbCr422, YCbCr420
DVI	4	VESA Standard, support HDCP, compatible with HDCP1.4	1920×1080@60hz	8bit : supports RGB444, YCbCr444, YCbCr422, YCbCr420

Output Index
Interfaces	Compatible with Neutrik optical CON DUO fiber port and LC-LC fiber port
Color Depth	Resolution Specification
	2D mode	3D mode
8bit	8847360 pixels total, maximum height/width: 8192 pixels；	4423680 pixels total，maximum height/width: 8192 pixels;
10bit	8294400 pixels total, maximum height/width: 8192 pixels；	4147200 pixels total, maximum height/width: 8192 pixels;
Transmission distance	2km

Specification of complete machine
Size	2U standard box（W 482.6mm x H 87mm x D 430mm）
Input Voltage	AC 100~240V,50/60Hz
Rated Power Consumption	150W
Working temperature	-20~50℃

Specification Download:

Colorlight Z6 Pro Professional LED Display Screen Controller Specification

Colorlight Z6 Pro Professional LED Display Screen Controller User Manual
