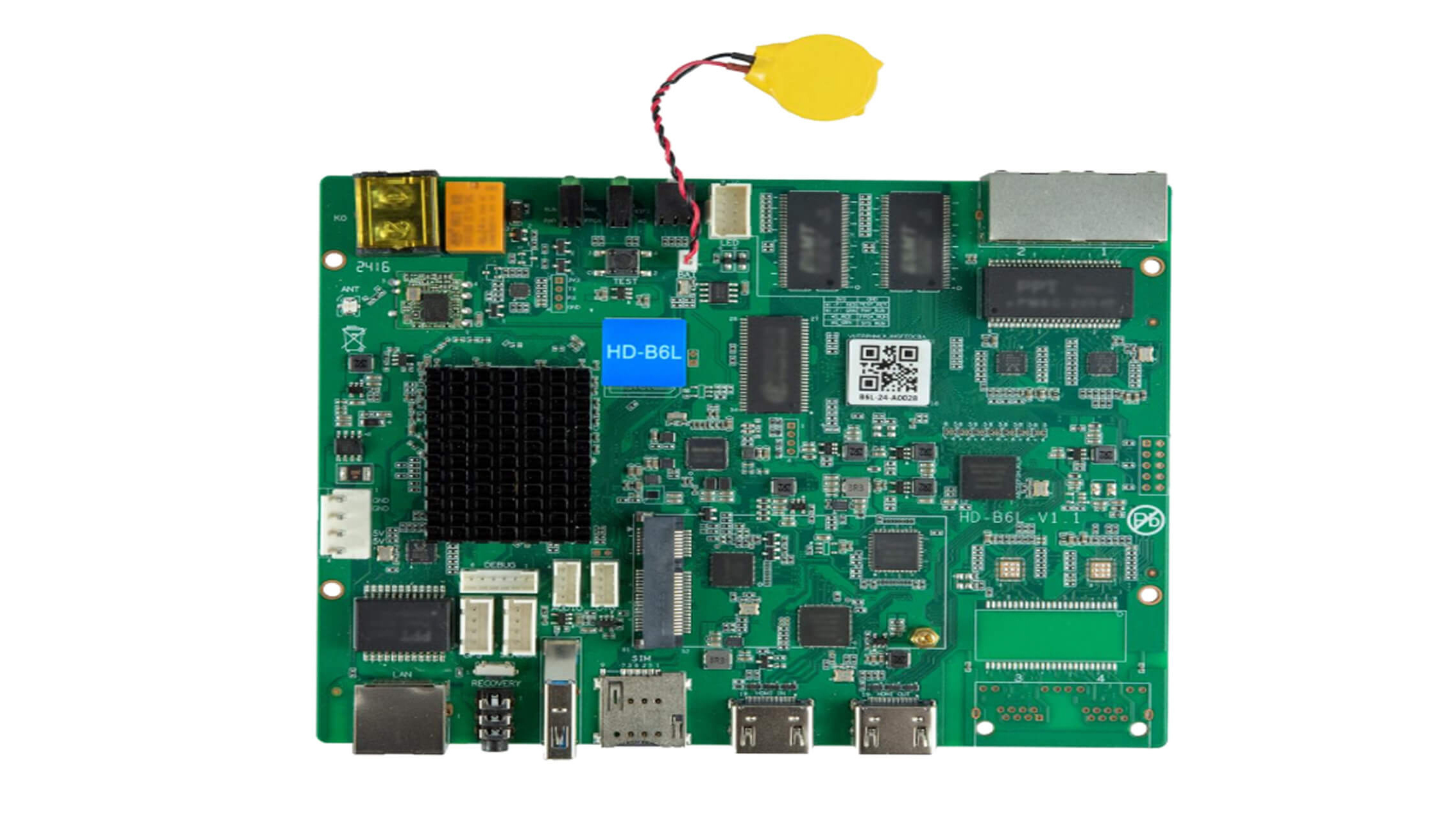

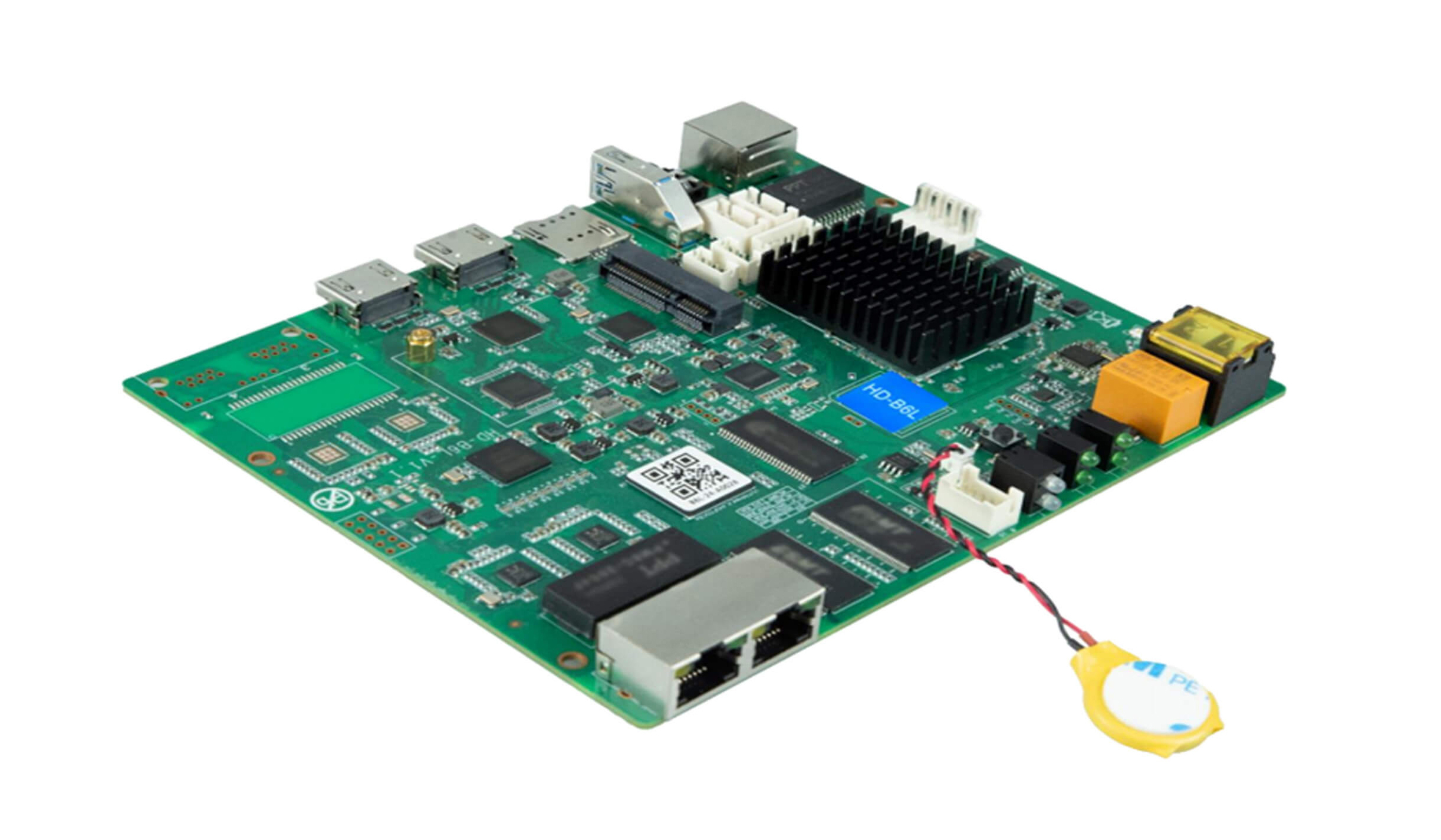

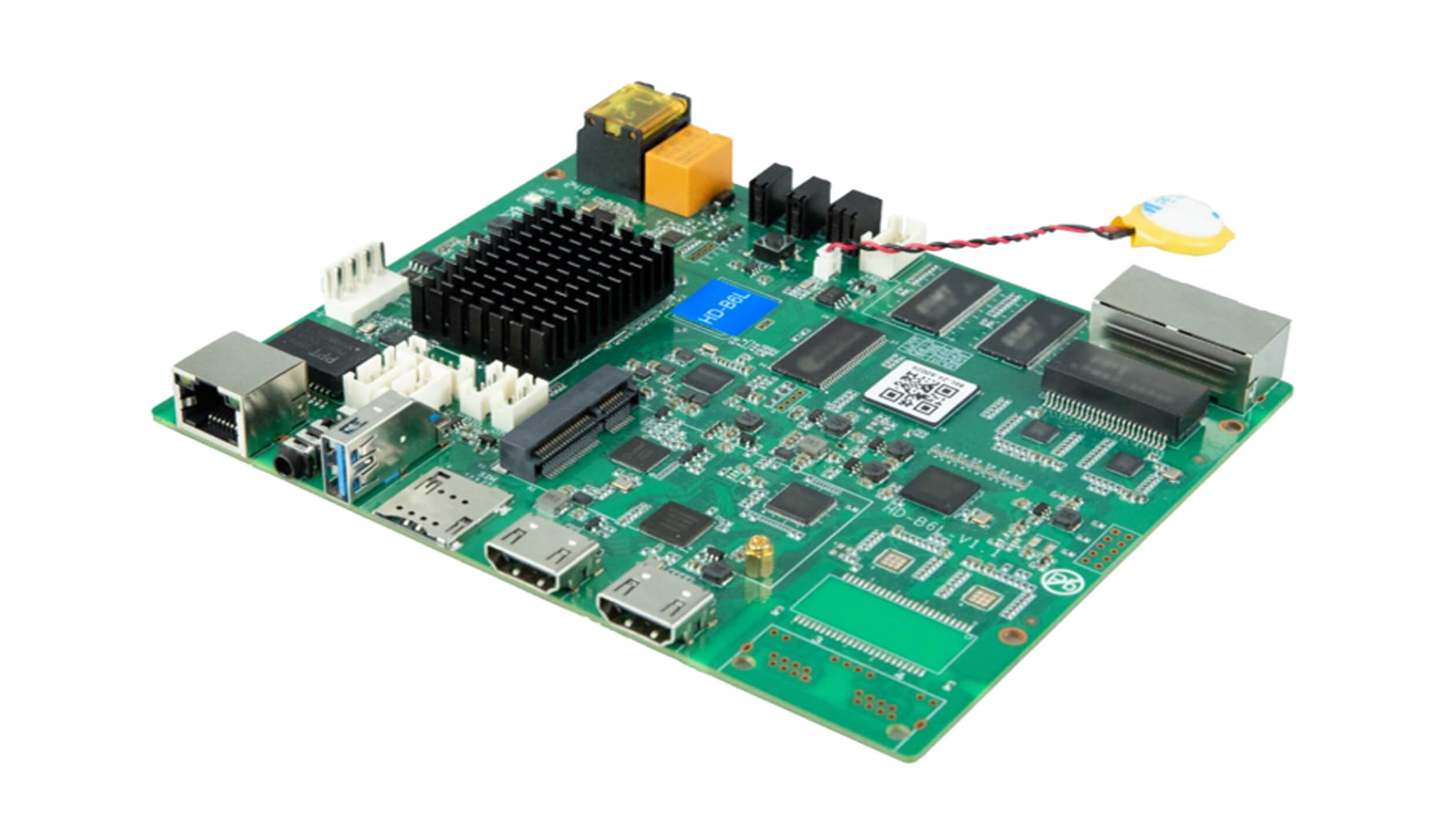

Product Overview
HD-B6L (B6L for short) is a multimedia control card for LED poster screens. It comes with HDMI input and output as standard, and supports HDMI splicing display. It also supports playing videos, pictures, Gif animations, text, WPS documents, tables, clocks, timing and other program contents.
B6L comes with Wi-Fi as standard, and supports wireless control via the mobile phone APP “LedArt”. It supports remote cluster management and power control via the Internet; it supports USB interface to update/play programs. It supports synchronous playback of HDMI signals. It supports external connection of various environmental monitoring sensors to realize real-time viewing of environmental monitoring data. It is widely used in display fields such as mobile poster screens, mirror screens, and splicing screens

Product Features
Input：
1. Support 1 Gigabit input network port for debugging parameters, sending programs and accessing the Internet;
2. Support 1 HDMI input interface, support automatic zooming of synchronous images, and support synchronous and asynchronous picture-in-picture functions;
3. Support 1 USB communication interface for updating programs and expanding capacity;
4. Support 2 dedicated sensor interfaces for external environmental monitoring sensors or GPS, etc.

Output：
1. Standard 2 Gigabit output network ports, Cascade with receiving card to realize display screen loading.
2. The maximum control range of Single B6L is 130W pixels, supports a maximum width of 16384 pixels or a
maximum high of 4096 pixels, and the cascade splicing can reach 260W pixels(for Multiple B6L);
3. 1 TRS 3.5mm and 1 4PIN standard two-channel audio output;
4. 1 HDMI signal output for cascade splicing, supporting up to 10 levels.

Function：
1. Standard 2.4GHz Wi-Fi, supports mobile phone APP wireless control (supports Wi-Fi AP, Wi-Fi STA mode);
2. Onboard 1 relay for remote power control;
3. Support multi-channel video window playback (support up to 2 channels of 4K or 6 channels of 1080P or 10
channels of 720P or 20 channels of 360P);
4. Support 4G access to XiaoHui Cloud Platform to achieve Internet remote cluster management (optional);
5. The cascade state supports the basic parameters, connection relationship and brightness parameters of the
secondary screen synchronization receiving card of the main screen;
6. Support synchronous playback, asynchronous playback and synchronous and asynchronous mixed playback.

Specifications Download:
Huidu HD-B6L LED Poster Screen Control Card Specification
