HuiDu HD-C16L LED display asynchronous control system

Name: HuiDu HD-C16L LED display asynchronous control system
Brand: Shopping LED Screen controller Video processor power supply
SKU: HuiDu HD-C16L
Price: 70 USD
Availability: InStock

SKU: HuiDu HD-C16L

$70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us

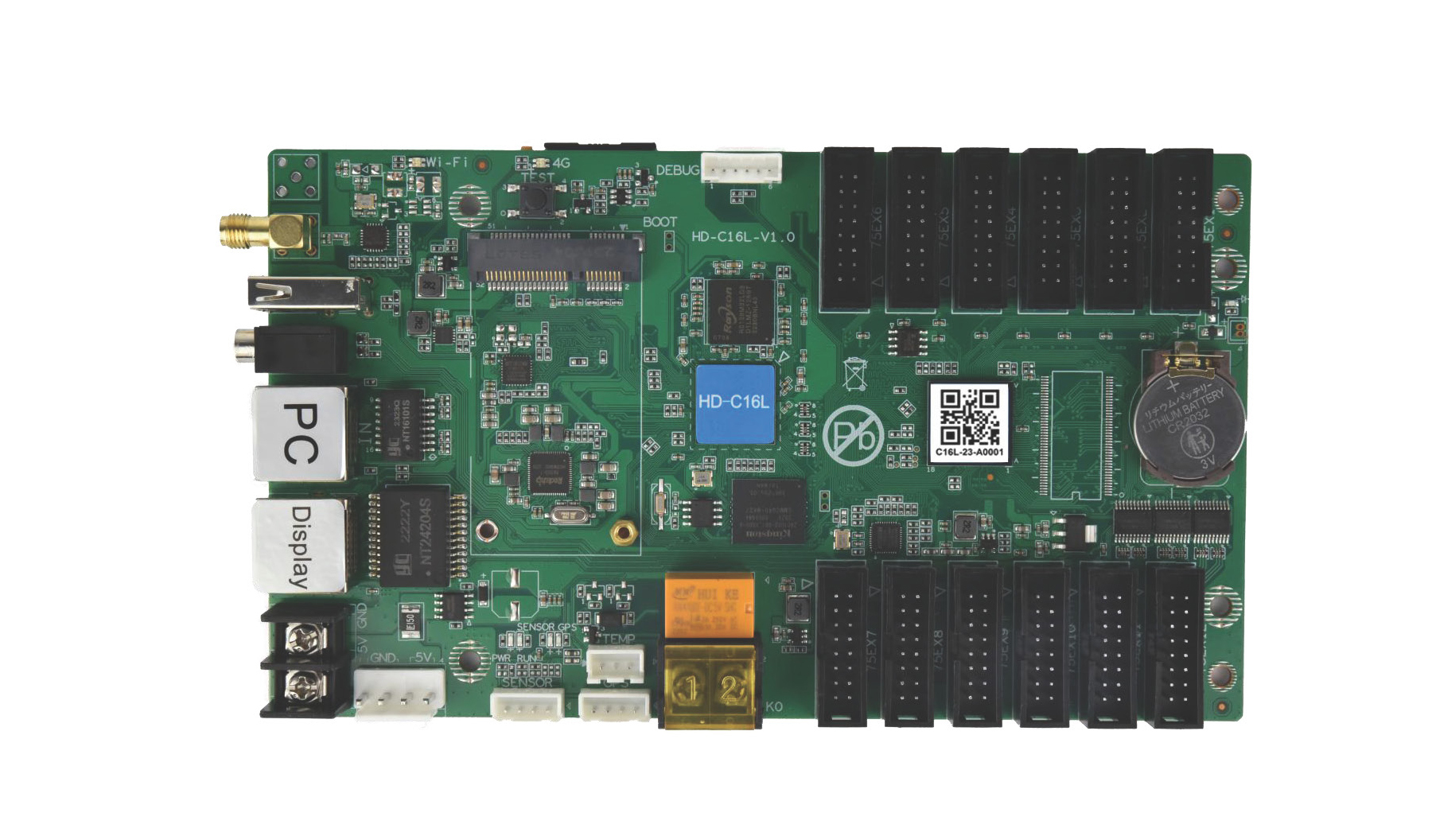

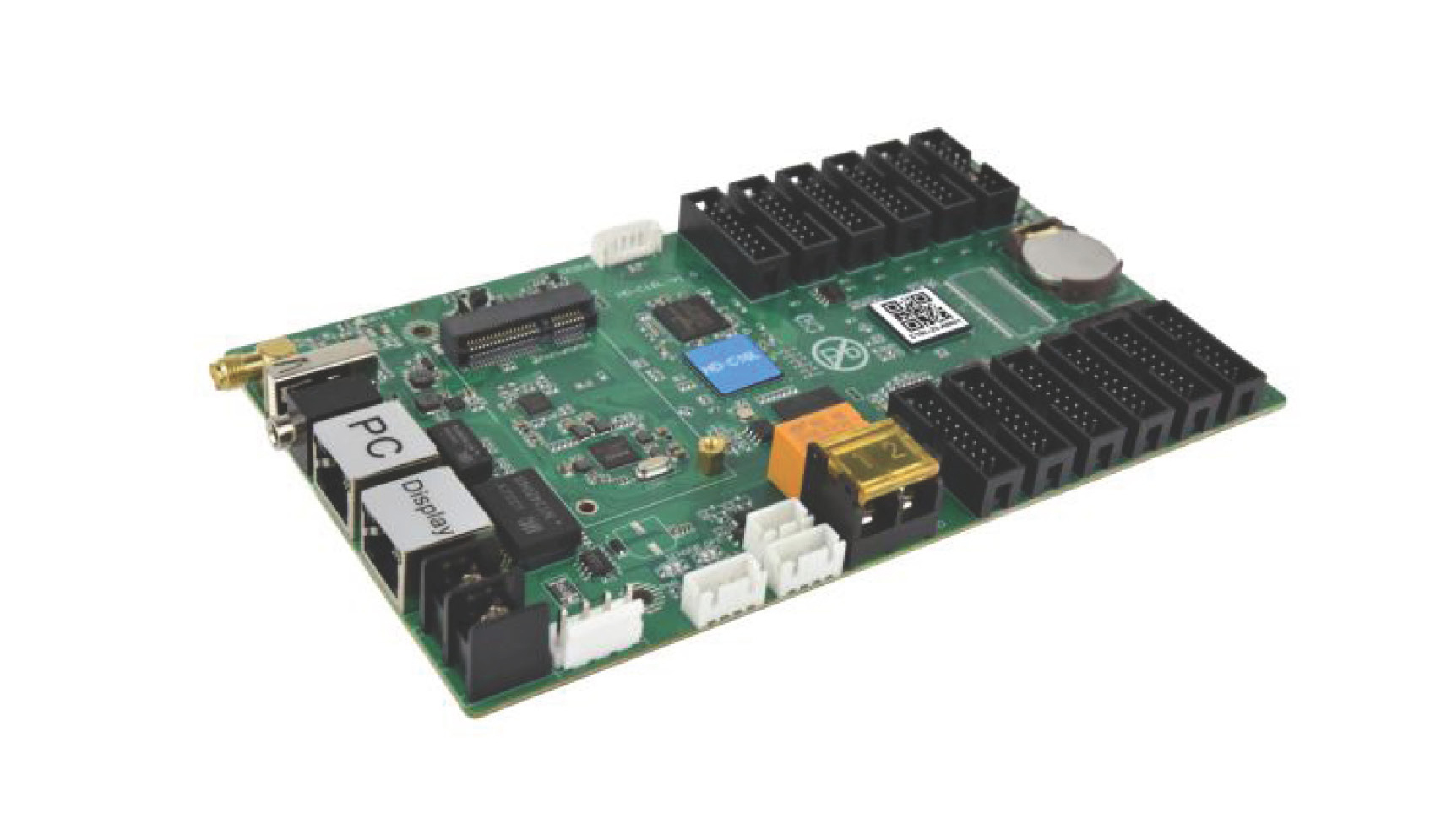

C16L is a new generation LED multimedia playback card that integrates sending card, receiving card and playback terminal; compared with the traditional asynchronous playback solution,It can reduce the need for a computer for playback terminals, making it easy to control at any time. It comes with a receiving card onboard that can be directly connected to the screen, which is relatively more cost-effective; it supports video playback, Pictures, Gif animations, texts, WPS documents, tables, clocks, timings and other program contents; supports 60Hz frame rate output for smooth word movement and remote control Control power supply and other functions.

HuiDu HD-C16L LED display asynchronous control system Features：

enter:
1. Supports 1 100M communication network port, used for debugging parameters, sending programs and accessing the Internet;
2. Supports 1 USB communication interface, which can be used to update programs and expand capacity;
3. Supports 1 dedicated interface for temperature sensor, 1 dedicated interface for GPS sensor and 1 universal sensor input interface.

Output:
1. The maximum control range is 650,000 pixels, a single card can load 20W pixels, and a cascade can load 65W pixels; the widest discount supports 8192 pixels
Pixels (width>1920 triggers discount), supports up to 1920 pixels;
2. Equipped with 1 Gigabit output network port as standard, which can be directly cascaded to the HD-R series receiving card to control the display;
3. Onboard 12 HUB75E interfaces;
4. 1 channel TRS 3.5mm standard two-channel audio output.

Function:
1. Comes standard with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP, Wi-Fi-STA mode);
2. Onboard 1-way relay can remotely control the power supply;
3. Supports 2-channel video window playback (up to 2-channel 1080P);
4. Support 4G access to Xiaohui Cloud platform to realize remote machine management on the Internet (optional);
5. Support UART communication;
6. Supports 1 channel RS-232 or RS-485 communication (optional).

Specification Download：

HuiDu HD-C16L LED display asynchronous control system Specification
