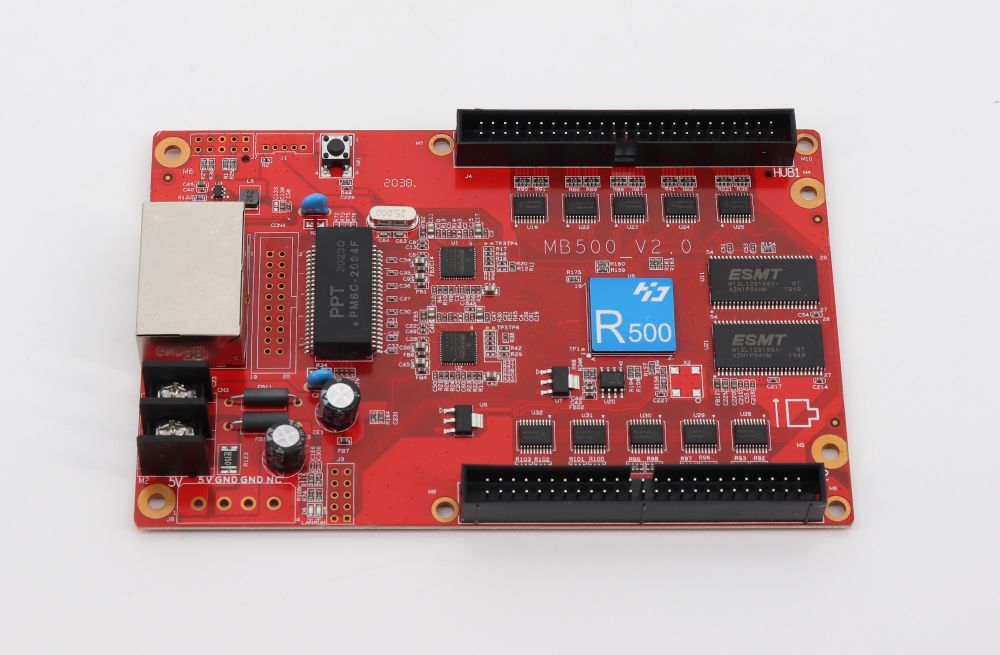

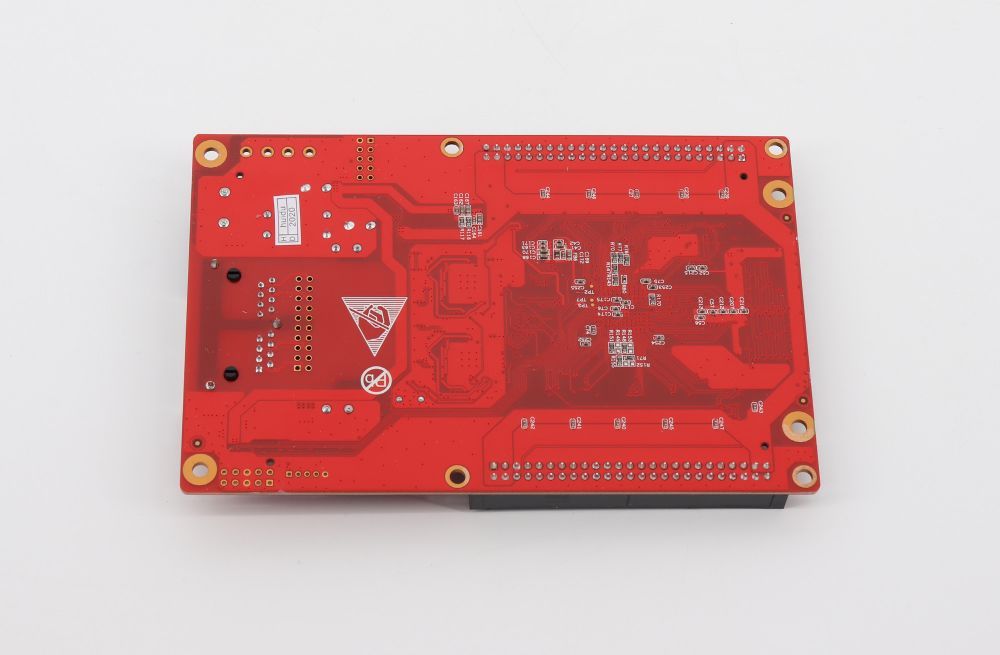

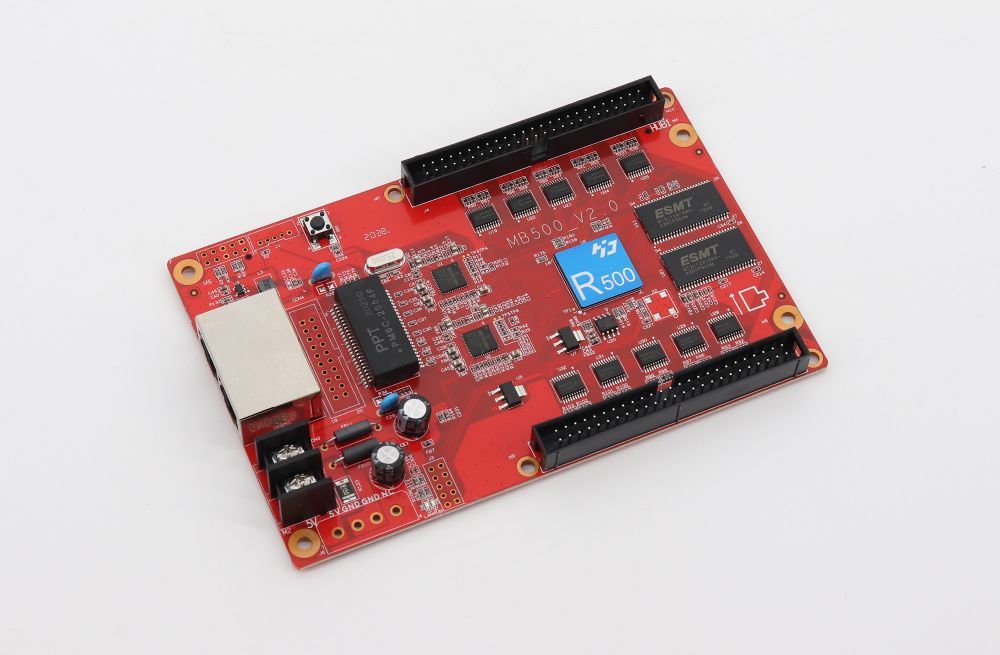

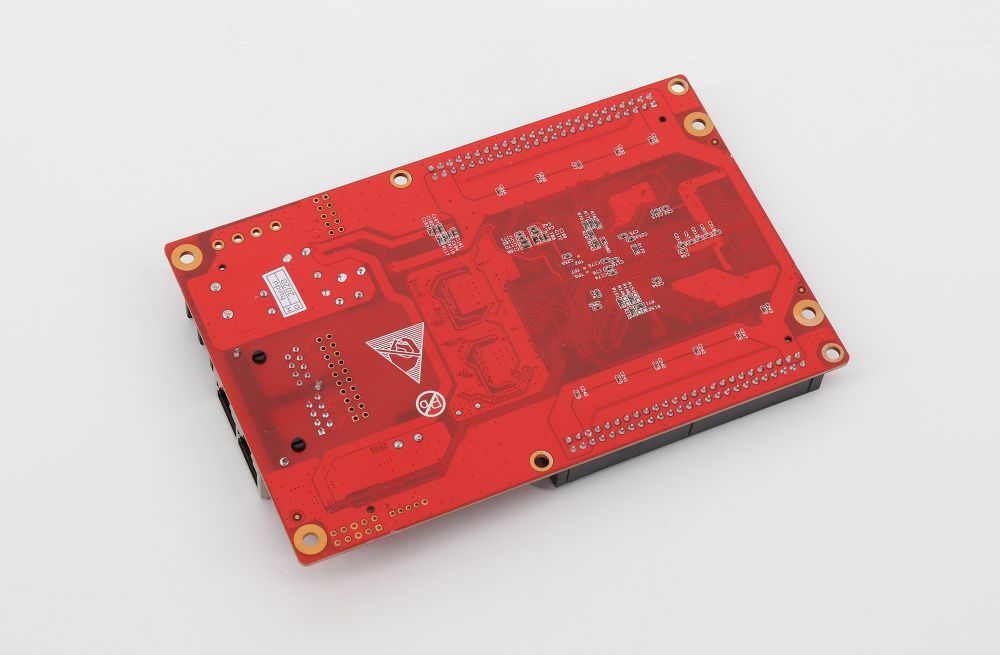

Huidu HD-R500 Asynchronous Full Color Cascading Receiver Card Introduction:

1) receiving the control computer via Gigabit Ethernet data cable, without having to send the card;
2) Dual Ethernet ports automatically recognize input and output.

Huidu HD-R500 Asynchronous Full Color Cascading Receiver Card Specification:

Module Type	Be compatible with indoor/ outdoor single/dual/full color module;virtual module is supported;PWM chips such as MBI5041/5042, MBI5050, MY9221, MY9268 are supported;
Scan Mode	All scan modes from static to 1/32 are supported.
Area of single receiver card	256*128（recommended）
Quantity of single network line cascading receiver card	64pcs
Connection of multiple cards	Receiver card can rank randomly, setting the connection location by software's automatic identification or by hand.
Grey Level	0-65536
Smart Setting	Smart setting is completed by few simple steps, screen unit plates in any alignment can be matched by screen alignment setting.
Play Content	Video, animation, picture, text, word, table, PPT, clock and time are supported to play.
Test Function	The receiving card integrates the screen testing function, users can carry out color band (including red, green, blue and white), gray, slant, grid and multi points tests by pressing the self-detection button.
Time Switch	Support customized/computer time swith
Port	Two 5V power ports，two Ggabit Ethernet ports and a group of standard switch ports
Input Voltage	4V-6V
Work Temperature	-20℃-85℃
