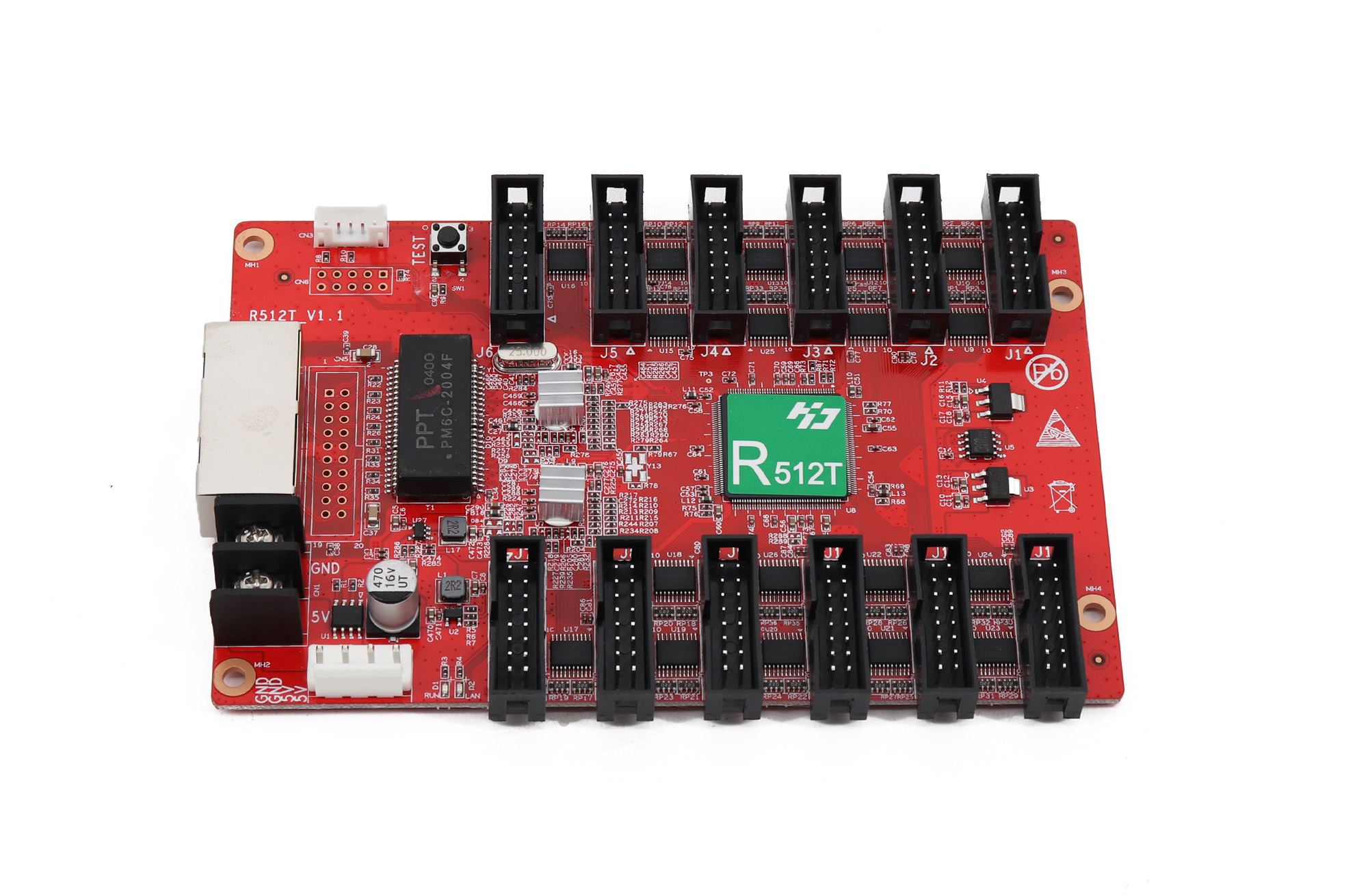

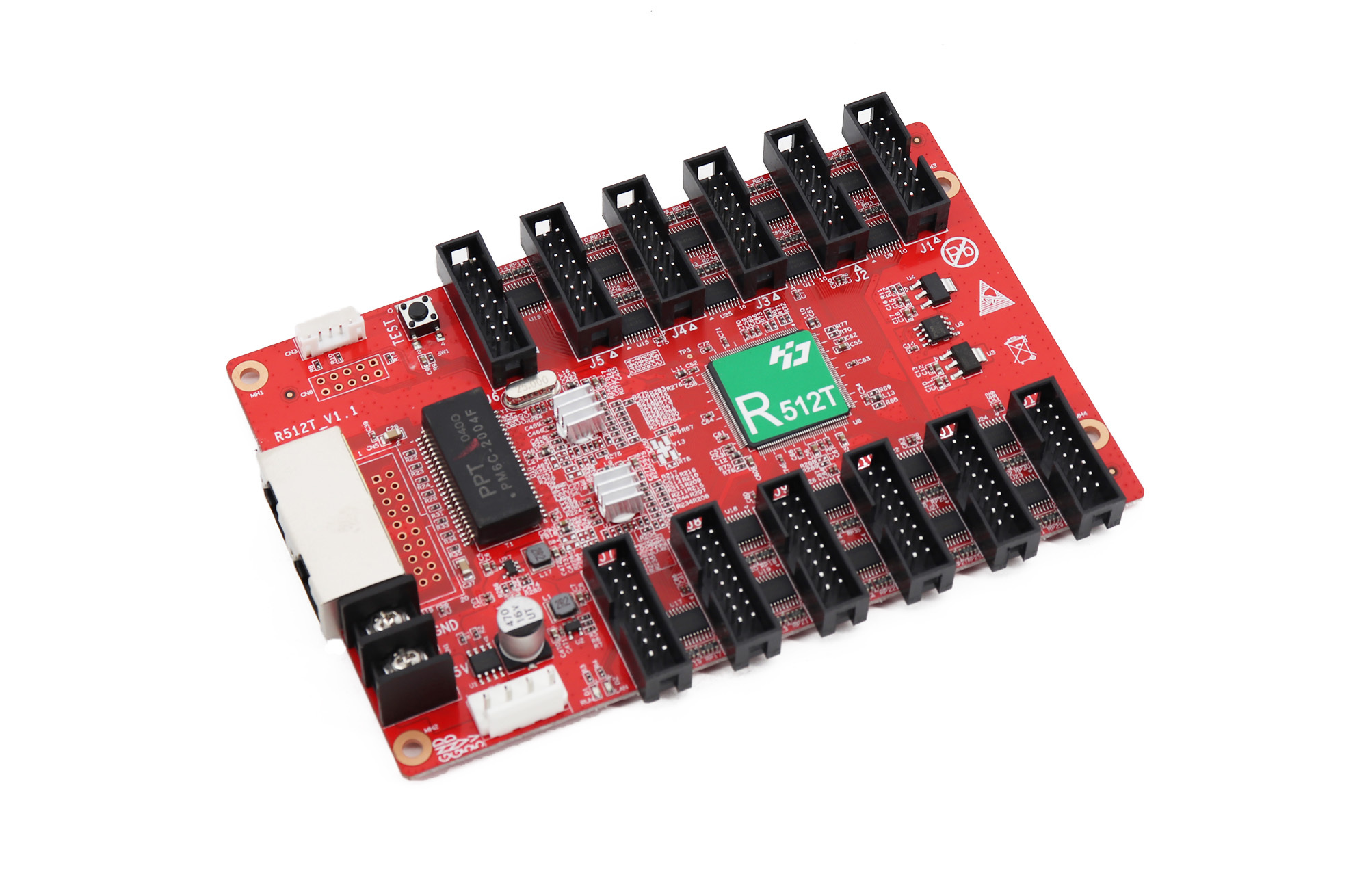

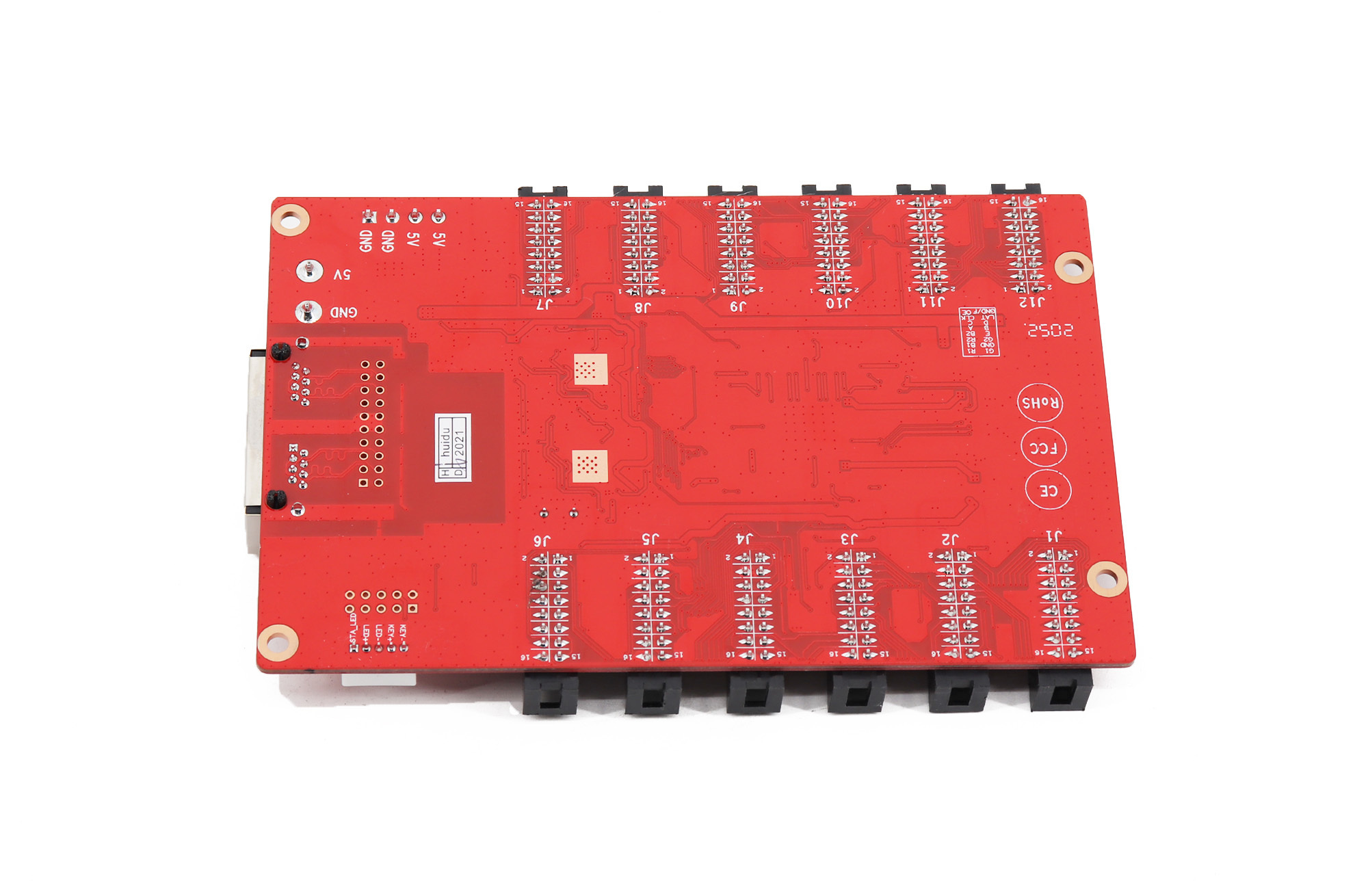

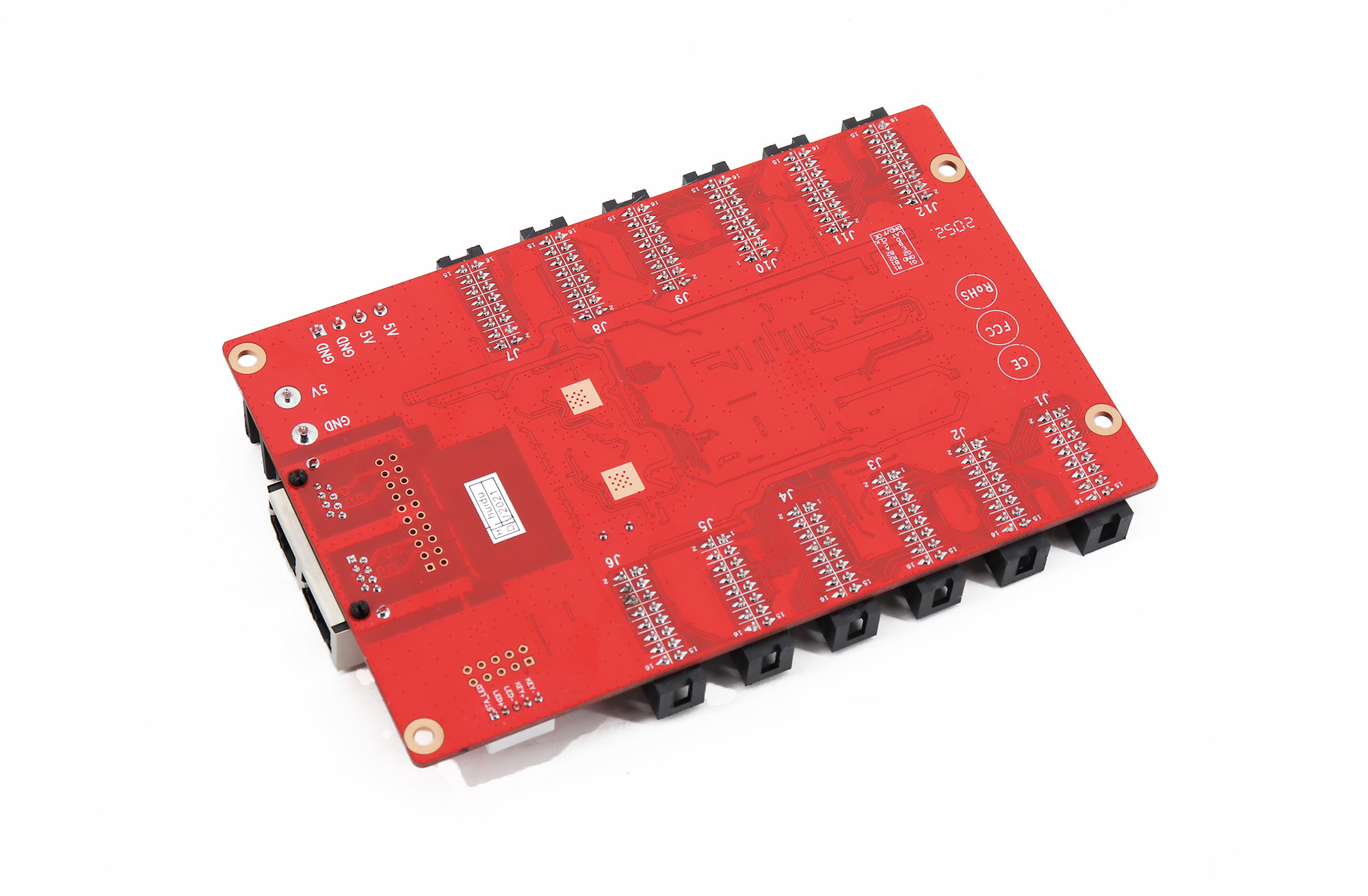

HUIDU HD-R512T LED Display Full Color Receiving Card

Name: HUIDU HD-R512T LED Display Full Color Receiving Card
Brand: Shopping LED Screen controller Video processor power supply
SKU: HUIDU-HD-R512T
Price: 12.5 USD
Availability: InStock

SKU: HUIDU-HD-R512T

HUIDU HD-R512T LED Display Full Color Receiving Card Features：

·Integrated with 12 lines HUB75E port

·Support regular chips and PWM chips

·Support static module, any scan mode within 2~64 scan

·Support data group exchange and data group offset

$12.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Shipping Policy
Why Us

HUIDU HD-R512T LED Screen Full Color Receiving Card Features：

·Integrated with 12 lines HUB75E port

·Support regular chips and PWM chips

·Support static module, any scan mode within 2~64 scan

·Support data group exchange and data group offset setting

·Smart settings, draw points, trace points, etc.

·Support multi-card cascade, arbitrary order

·Recommended loading range: 128*512/ 128*768

HUIDU HD-R512T LED Screen Full Color Receiving Card Parameter:

Function	Parameters
With sending card	Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series.
Module type	Compatible with all common IC module, supported most PWM IC module.
Scan mode	Supports any scanning method from static to 1/64 scan
Communication method	Gigabit Ethernet
Control range	Recommend：65,536 pixels (128*512) Outdoor module width ≤256, Indoor module width ≤128
Multi-card connection	Receiving card can be put in any sequence
Gray scale	256~65536
Smart setting	A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
Test functions	Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
Communication distance	Super Cat5,Cat6 network cable within 80 meters
Port	5V DC Power2,1Gbps Ethernet port2, HUB75E*12
Input voltage	4V-6V
Power	5W
