Name: Huidu HD-R5S Plus LED Mini Receiver Card
Brand: Shopping LED Screen controller Video processor power supply
SKU: Huidu HD-R5S Plus
Price: 10.8 USD
Availability: InStock

SKU: Huidu HD-R5S Plus

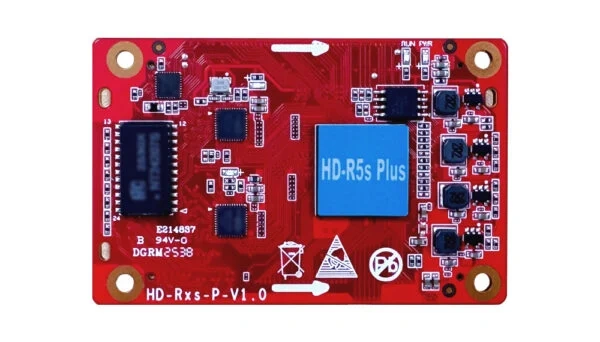

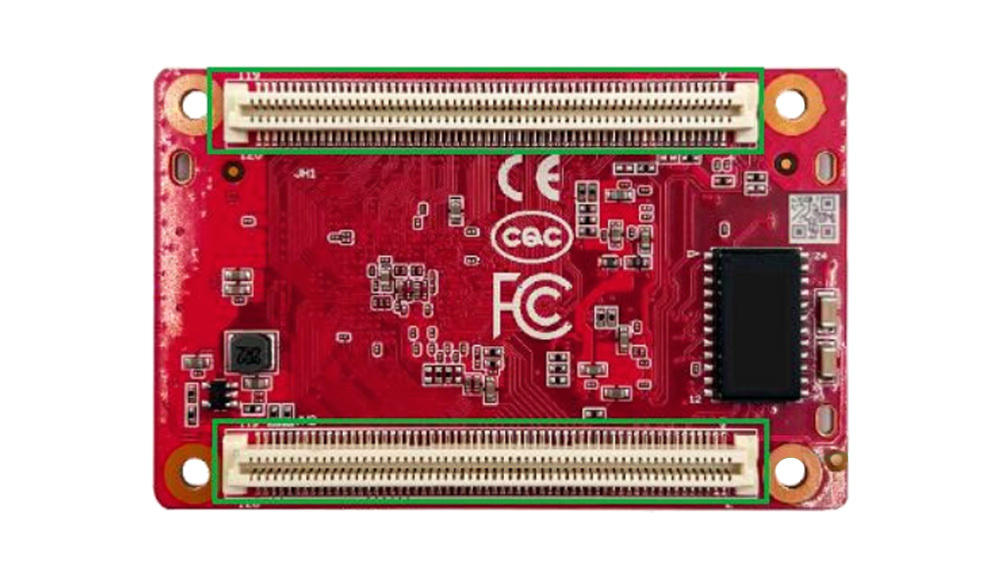

The R5s Plus is a small-sized receiver card with a high-density connector interface launched by Huidu Technology . A single card can control 512*512 pixels , support 32 groups of RGB parallel data or 64 groups of serial data (expandable to 128) , and has a super large load capacity, with a maximum controllable pixel size of 260,000.

$10.80

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Overview

Features:

Supported Sending Types：It supports synchronous and asynchronous dual-mode playback boxes, asynchronous sending cards, synchronous sending cards, and video processors.
Supported modules：Supports modules with all common chips; supports mainstream PWM chip modules.
Scanning method：Supports any scanning mode from static to 1/128 scan , and supports spot and blank spot settings. Communication methods：Gigabit Ethernet ports
Load range：Maximum load: 512 * 512@60Hz (Note: Actual load capacity depends on the number of interfaces and module resolution).
Multi-card connection：Receiver cards can be sorted arbitrarily, achieving nanosecond-level synchronization.
Gray levels：Supports levels 256 to 65536
Smart Settings：Smart setup can be completed in just a few simple steps, and the screen wiring configuration allows it to work with display unit boards with any wiring method.
Test Function：The receiver card integrates a screen testing function to test the brightness uniformity and flatness of the display module.
Communication distance：Cat5e and Cat6 network cables within 80 meters
Rotate by multiples of 90°：The screen rotates in multiples of 90 degrees (0/90/180/270 degrees).
Point-by-point correction：In conjunction with the grayscale correction system, it supports point-by-point brightness and color correction, as well as adjustment/repair of bright and dark lines.
RGB independent gamma adjustment：By adjusting the gamma values of ” R “, ” G “, and ” B ” , problems such as uneven grayscale and inaccurate white balance on the display screen are solved , thereby improving the realism of the picture.
Monitoring function：The receiver card ‘s temperature and voltage can be directly monitored without external devices , and the current running time can be recorded.
Configuration parameters are backed up twice：The receiver card configuration parameters can be saved to the factory area , and can be restored from the factory area when the configuration parameters are modified.
Dual backup receiver card：event of a primary card failure , the system automatically switches to the backup card to ensure continuous display and prevent interruptions or malfunctions.
Flashboard：For LED boards with Flash memory, the correction coefficients can be stored and read back for application.

Specification Download:
Huidu HD-R5S Plus LED Mini Receiver Card Specification
