1 ： Gigabit Ethernet port, used to connect the sending card or receiving card, the same two network ports are interchangeable,http://www.huidu.cn/ 5
2 ： Power interface, can be accessed with 4.5V ~ 5.5V DC voltage；
3 ： Power interface, can be accessed with 4.5V ~ 5.5V DC voltage；
4 ： Work indicator, D1 flashes to indicate that the control card is running normally; D2 flashes quickly to indicate that Gigabit has been recognized and data is being received.
5 ： HUB75E port， connect to the modu

$14.80

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

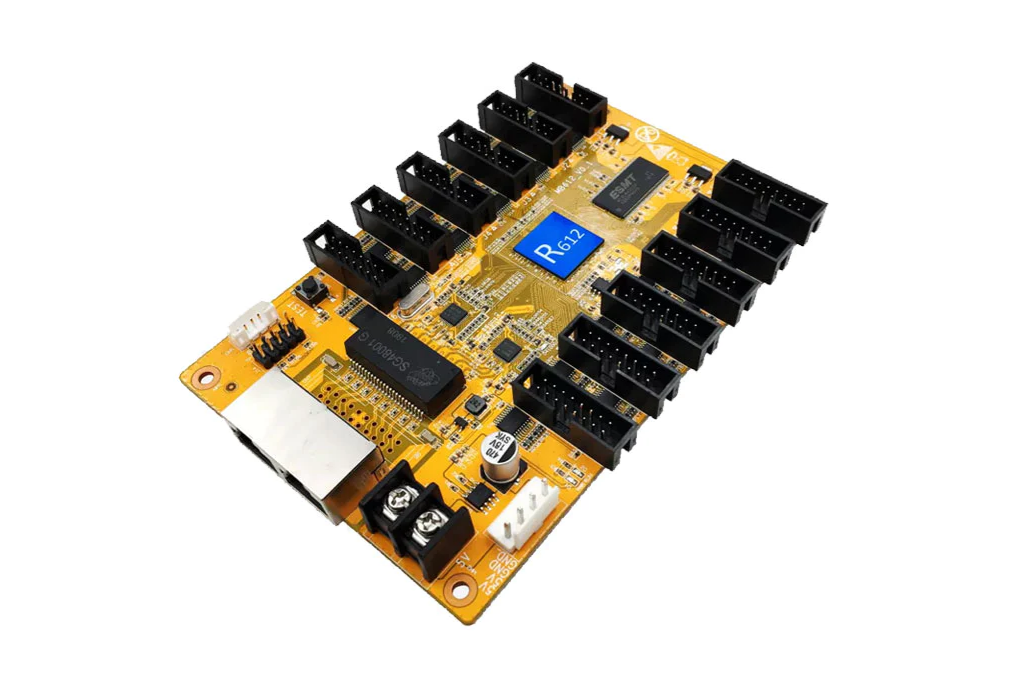

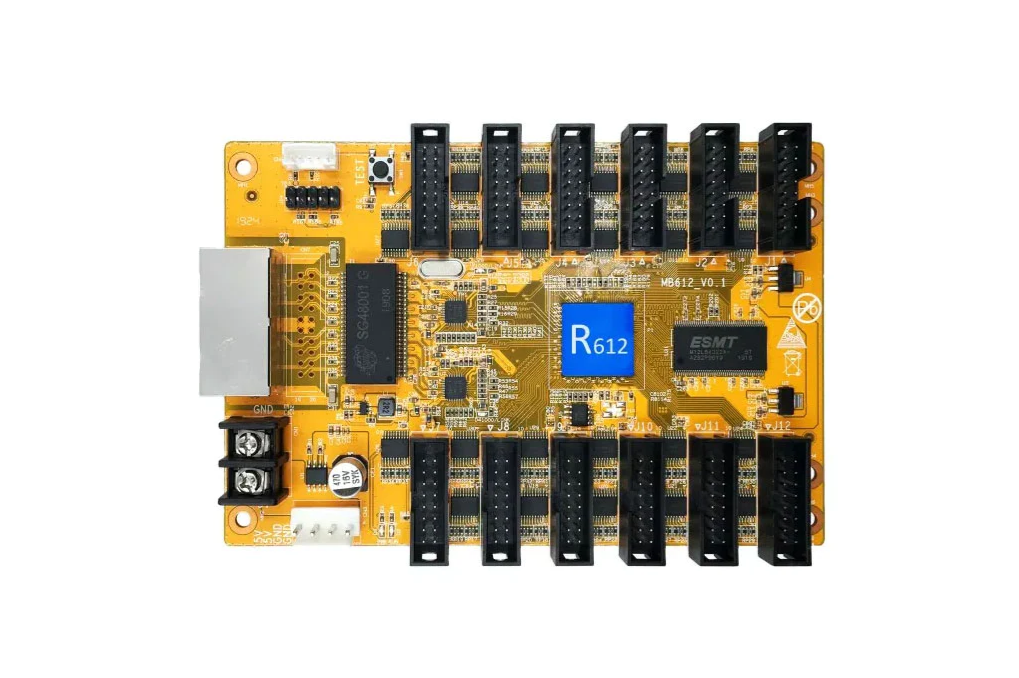

Huidu HD-R612 LED Screen Wall Full Color Receiving Card Features

Huidu HD-R612 LED Screen Wall Full Color Receiving Card Parameter:

Fit for sender	A4、 A5、 A6、 A601、 A602、 A603 dual mode player； A3、 A30、 A30+、 C10、 C10C、 C30、 C15、 C15C、 C35、 C35C Asynchronous controller； T901、 T901B、 T901S synchronous controller； VP210、 VP410 video processor
Module type	Compatible with all common IC module, supported most PWM IC module.
Scan mode	Supports any scanning method from static to 1/64 scan
Communicatio n method	Gigabit Ethernet
Control range	Recommend： 256*256 pixels Outdoor module width ≤256, Indoor module width ≤128
Multi-card connection	Receiving card can be put in any sequence.
Gray scale	256~65536
Smart setting	A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
Test functions	Receiving card integrated screen test function,Test display brightness uniformity and display module flatness.
Communicatio n distance	Super Cat5,Cat6 network cable within 146 meters
Port	5V DC Power2,1Gbps Ethernet port2, HUB75E*12
Input voltage	4V-6V
Working temperature	-40℃~85℃
