Product Overview

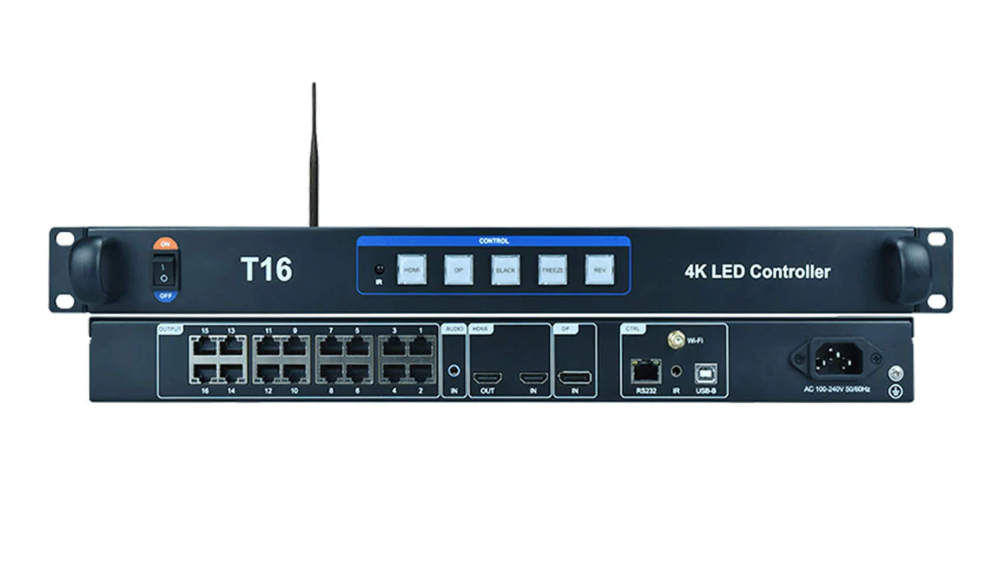

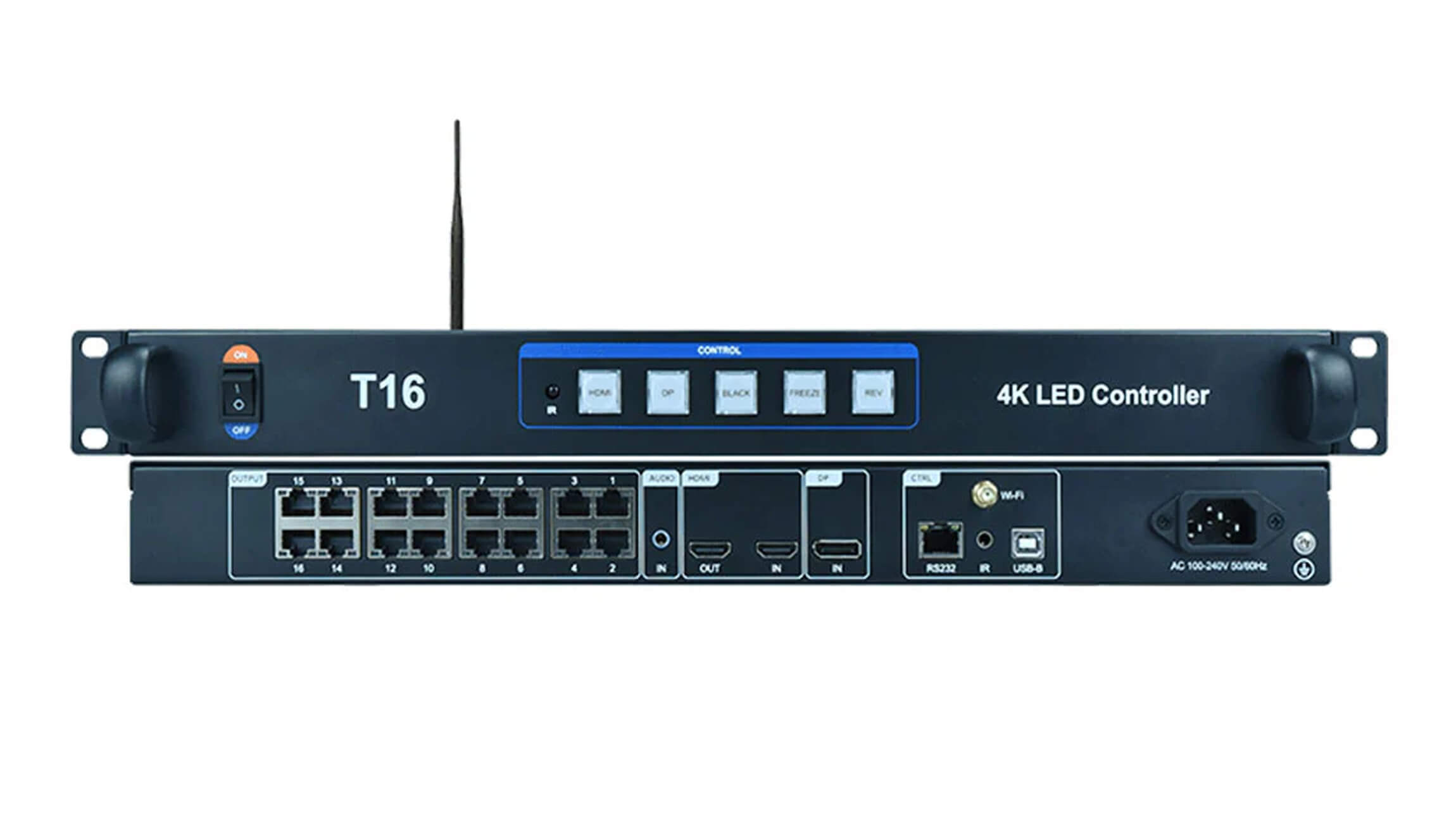

HD-T16 (T16 for short) is a transmitter with powerful video signal reception capabilities, supporting either DP1.4 or HDMI2.0 source inputs. It supports a maximum of 8.84 million (4096×2160) pixels, a maximum width or height of 8192 pixels, and a maximum of 4096×2160@60Hz 4K video signal input, which can greatly meet the configuration requirements of ultra-long, ultra-high and ultra-large screens on site. Integrated 16 Gigabit network port output, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that need synchronous playback, while T16 is equipped with Wi-Fi function as standard, supporting wireless control of PC software.

Product Features

Input
 Support 1channel of DP1.4, 1 channel of HDMI2.0signal input, two video signals can be switched arbitrarily;
 Support 1 TRS 3.5mm standard two-channel audio input, can be connected to a multi-function card to transmit audio.
Output
 Standard configuration of 16 Gigabit Ethernet ports, directly cascaded to the receiving card;
 1 channel HDMI OUT, used for display screen program preview;
 The maximum control is 8.84 million pixels (4096×2160), the maximum horizontal support is 8192 pixels, and the maximum vertical support is 8192 pixels.
Function
 Support 4096×2160@60Hz synchronous signal input, point-to-point display;
 Standard Wi-Fi, support PC software wireless control;
 Support key black and freeze function;
 Support multiple units seamless splicing;
 Support infrared remote control (optional).

Connection Diagram

Specification Download:
Huidu HD-T16 4K Synchronous Sending Box specification
