1）Integrated video processing, sending card function, 16 gigabit network port output, total pixels 10.4 million points；
2）5-channel high-definition digital and analog video input, up to 4K@60Hz input；
3）Multiple audio input and output；
4）Support dual pictures PIP、POP；
5）Free switching of any channel；
6）Parameter setting and saving function, scene preset saving and recall；
7）"Navigation Settings" function, convenient for quick settings；

$695.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

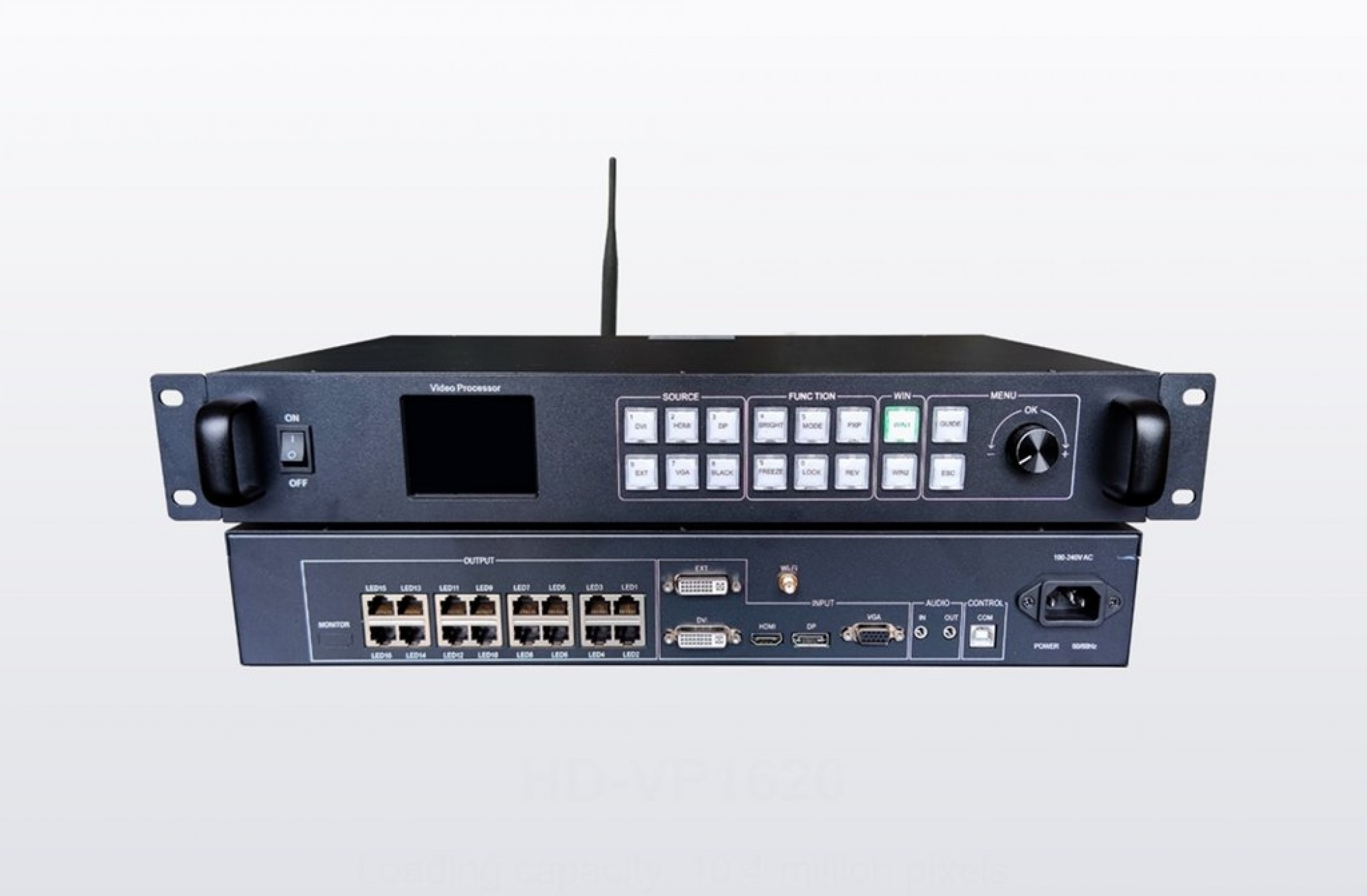

HUIDU HD-VP1620 LED Display All-in-one Video Processor Features：

1）Integrated video processing, sending card function, 16 gigabit network port output, total pixels 10.4 million points；
2）5-channel high-definition digital and analog video input, up to 4K@60Hz input；
3）Multiple audio input and output；
4）Support dual pictures PIP、POP；
5）Free switching of any channel；
6）Parameter setting and saving function, scene preset saving and recall；
7）"Navigation Settings" function, convenient for quick settings；
8）The "connection setting" function no need computer control, and directly sets the connection parameters of each cabinet through the panel buttons;
9）The device can be debugged and controlled through panel buttons, USB, Wi-Fi (mobile APP, developing)

HUIDU HD-VP1620 LED Display All-in-one Video Processor Parameters：

Function	Parameters
DVI Input	Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920x1200, HD to 1080p
HDMI Input	Interface form: HDMI-A Signal standard: HDMI1.3 backward compatible Resolution: VESA standard,≤3840×2160@60Hz
DP Input	Interface form ：DP Signal standard:DP1.2向下兼容 Resolution: VESA standard,≤3840×2160@60Hz
VGA Input	Interface form: DB15 socket Signal standard: R, G, B, Hsync, Vsync: 0 to 1Vpp ± 3dB (0.7V Video + 0.3v Sync ) 75 ohm black level: 300mV Sync-tip: 0V Resolution: VESA standard,≤1920×1080p@60Hz
EXT Input	DVI or SDI，Default standard DVI
AUDIO IN	Input x1，3.5mm audio port
AUDIO OUT	Output x1，3.5mm audio port
Network port Output	16-way network port output interface，connected to the acceptance card，total pixels1040W，Widest 16000，Highest 3840 Each network port carries 65W pixels, and the widest single network port is 2048 pixels and the highest is 2048 pixels.
Square USB port (Type B)	Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software.
Wi-Fi	Support mobile phone APP for sending card, receiving card parameter debugging, program upgrade, etc.--- developing
Power interface	100-240V~50/60Hz
Whole machine power	<=75W
Weight	<=3.6kg
Size（mm）	Case size：（Length）482mm（width）302.8mm（hight）65.5mm
Machine case	1.5U standard industrial chassis
