HD-VP620/VP820 is a All-in-one video processor, which integrates the functions of synchronous sending card and video processor, supports 4K source video signal input and dual picture output, supports multi-channel video source arbitrary switching, audio input and output, etc..

$375.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

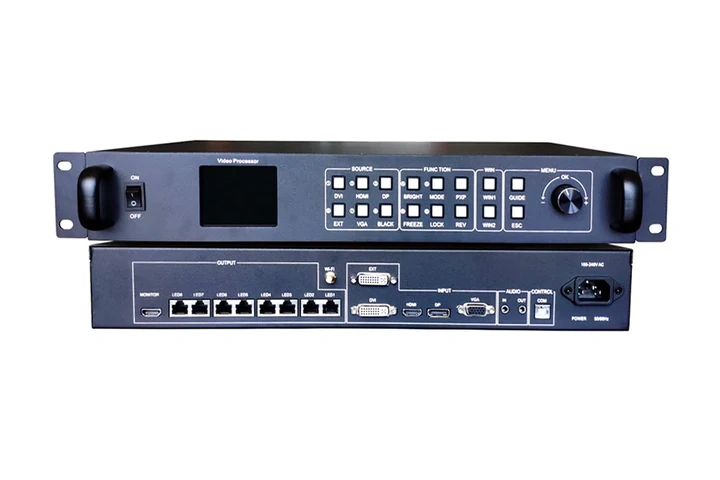

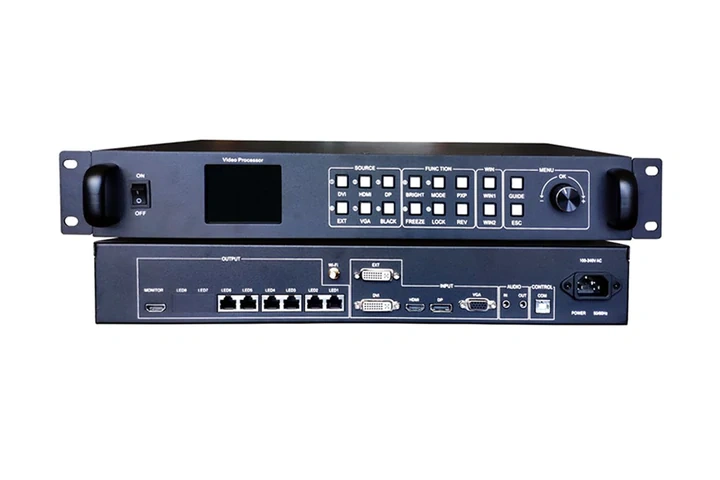

Huidu LED Video Processor HD-VP620 All-in-one LED Display Controller Features：

1）Integrated video processing, sending card function, 6 gigabit network port output, total pixels 3.9 million points；

2）5-channel high-definition digital and analog video input, up to 4K@60Hz input；

3）Multiple audio input and output；

4）Support dual pictures PIP，POP；

5）Free switching of any channel；

6）Parameter setting and saving function, scene preset saving and recall；

7）"Navigation Settings" function, convenient for quick settings；

8）The "connection setting" function no need computer control, and directly sets the connection parameters of each cabinet through the panel buttons;

9）The device can be debugged and controlled through panel buttons, USB, Wi-Fi (mobile APP, developing)

Huidu LED Video Processor HD-VP620 All-in-one LED Display Controller Parameter:

Function	Parameter
DVI Input	Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920x1080, HD to 1080p
HDMI Input	Interface form: HDMI-A Signal standard: HDMI2.0 backward compatible Resolution: VESA standard,≤3840×2160@60Hz
DP Input	Interface form ：DP Signal standard:DP1.2backward compatible Resolution: VESA standard,≤3840×2160@60Hz
VGA Input	Interface form: DB15 socket Signal standard: R, G, B, Hsync, Vsync: 0 to 1Vpp ± 3dB (0.7V Video + 0.3v Sync ) 75 ohm black level: 300mV Sync-tip: 0V Resolution: VESA standard,≤1920×1080p@60Hz
EXT Input	DVI or SDI，Default standard DVI
AUDIO IN	Input x1，3.5mm audio port
AUDIO OUT	Output x1，3.5mm audio port
Network port Output	6-way network port output interface，connected to the acceptance card，total pixels 5.2 million，Widest 8000 dots, Highest 3840dots.
MONITOR	Synchronous monitoring of HDMI output interface, external LCD display，1920x1080@60Hz
Square USB port (Type B)	Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software.
Wi-Fi	Support mobile phone APP for sending card, receiving card parameter debugging, program upgrade, etc.--- developing
Power interface	100-240V~50/60Hz
Whole machine power	<=75W
Weight	<=3.6kg
Size（mm）	Case size：（Length）482mm（width）302.8mm（hight）65.5mm
Machine case	1.5U standard industrial chassis
