Overview

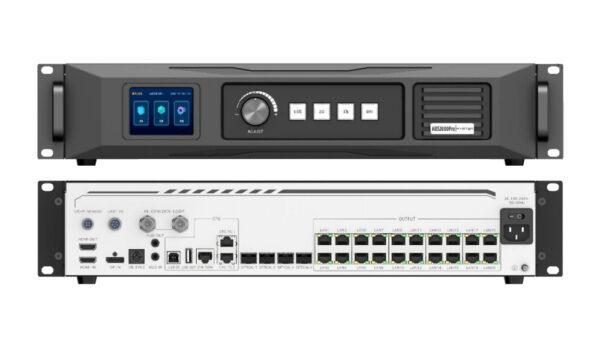

The KBS2000 Pro is a high-performance transmitter with powerful load capacity and rich features. A single unit supports one DP1.2 input and one HDMI2.0 input, with a maximum resolution of 4096×2160@60Hz. It supports 20 Ethernet ports and two main and two backup optical outputs, supporting a maximum load of 8.85 million pixels. The device communicates with a PC via a square USB/Gigabit Ethernet port, and allows for device cascading control via the Gigabit Ethernet port. It supports passive correction, spherical distortion, HDR, 3D_LUT, Genlock, 3D display, arbitrary cross-wiring, and redundant Ethernet port backup. It is primarily used in rental and fixed installation applications, such as concerts, stadium events, conference rooms, and exhibitions.

Features:

⚫ Supports 1 HDMI 2.0 input and 1 DP 1.2 input.
⚫ Supports HDMI loop-out cascading.
Selectable loop-out via HDMI or DP. Maximum cascading capacity: 8 units.
⚫ Supports 20 Gigabit Ethernet ports and 4 optical outputs.
Single Ethernet port supports 650,000 pixels; maximum total unit capacity: 8.85 million pixels; maximum width per unit: 8000 pixels.
⚫ HDR display.
Supports HDR10 and HLG standards.
⚫ 3D LUT function.
Supports color adjustment of video sources via 3D LUT files.
⚫ Genlock function.
External synchronization source signal for system synchronization.
⚫ Supports EDID management.
Maximum input resolution: 4096×2160@60Hz, customizable within this pixel range, maximum width 8000, maximum height 8000.
⚫ Supports passive luminance and chrominance correction.
When used with the KESDA correction system, it can perform luminance and chrominance correction for each LED point independently of the video source, eliminating brightness and chrominance differences and ensuring consistent display across the entire screen.
⚫ Fast correction data transmission.
Supports KESDA’s fast correction data transmission technology, twice as fast as traditional methods, significantly improving correction efficiency.
⚫ Spherical shape adaptation.
Uses built-in algorithms to support various types of spherical screens, compatible with KR, Hxs, and Mx series receiver cards.
⚫ Supports arbitrary cable routing.
No rectangular load limitations; empty areas do not occupy load resources, improving network port utilization.
⚫ Supports multiple control methods.
The device supports USB/Gigabit connection to a host computer for debugging.
⚫ Supports cascading control.
The devices can be centrally controlled via gigabit cascading, with a maximum of 8 units cascaded.
⚫ Supports 3D display (load halved).
Achieves 3D display effects when used with a 3D transmitter and 3D glasses.
⚫ Supports brightness and color temperature adjustment.

Specification Download:
Kystar KBS2000 Pro LED Display Control System Sending Box (Chinese)
