Overview

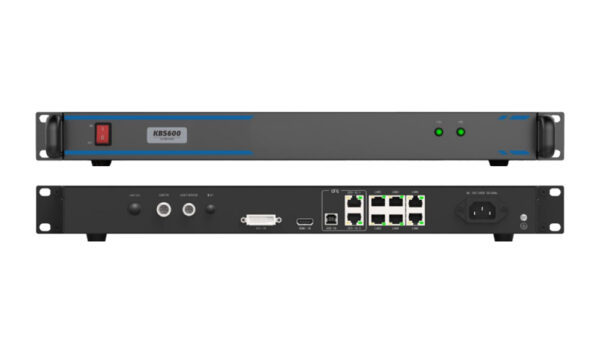

The KBS600 is a high-performance transmitter with powerful load capacity and rich functionality. A single unit supports one HDMI 1.3 input and one DVI input, with a maximum input resolution of 2048×1152 at 60Hz. It supports six Ethernet outputs, with a maximum load capacity of 2.35 million pixels. The device communicates with a PC via a square USB/Gigabit Ethernet port, and allows for device cascading control via the Gigabit Ethernet port. It supports passive correction, spherical distortion, 3D display, arbitrary cross-wiring, and Ethernet port redundancy backup. It is primarily used in rental and fixed installation applications, such as concerts, stadium events, conference rooms, and exhibitions.

Features:

⚫ Supports 1 HDMI 1.3 input and 1 DVI input.
⚫ Supports 6 Gigabit Ethernet ports.
Single Ethernet port supports 65W pixels, maximum total unit capacity 2.35W pixels, maximum width per unit 4000 pixels.
⚫ Supports EDID management.
Maximum input resolution 2048×1152@60Hz, customizable within this pixel range, maximum width 4000 pixels.
⚫ Supports passive luminance and chrominance correction.
In conjunction with the KESD correction system, it can perform luminance and chrominance correction for each LED point independently of the video source, eliminating brightness and chrominance differences and ensuring consistent display across the entire screen.
⚫ Fast correction data delivery.
Supports KESD’s fast correction data delivery technology, twice as fast as traditional methods, significantly improving correction efficiency.
⚫ Spherical distortion correction.
The device utilizes built-in algorithms to support various types of spherical screens and is compatible with KR, Hxs, and Mx series receiver cards.
⚫ Supports arbitrary cable routing.
No rectangular load capacity limitations; empty areas do not occupy load capacity resources, improving network port utilization.
⚫ Supports multiple control methods.
The device supports USB/Gigabit connection to a host computer for debugging.
⚫ Supports cascading control.
The device can be uniformly controlled via Gigabit cascading, with a maximum of 8 units cascaded.
⚫ Supports brightness and color temperature adjustment.

Specification Download:
Kystar KBS600 LED Display Control System Sending Box (Chinese)
