Video Input
Type	No.	Description
DVI-D（24+1）	1	· Max resolution supported is 1920*1200@60Hz ， downward compatibility. ·Compatible with HDMI1.3 and lower version, EDID version 1.3
HDMI(TYPE A)	1	·Max resolution supported is 1920*1200@60Hz， downward compatibility ·Compatible with HDMI 1.3 and lower version, EDID version 1.3
VGA (HD-15)	1	·Max resolution supported is 1920*1200@60Hz ， downward compatibility. ·EDID version 1.3 .Signal level：R、G、B、Hsync、 Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75Ω； black level：300mV Sync-tip：0V
CVBS（BNC）	2	·NTSC/PAL adaptive Signal level ：1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω
Video output
Type	No.	Description
DVI-D（24+1）	2	·Max resolution supported is 19201300@60Hz， downward is compatible ·Compatible with HDMI1.3 and lower version， EDID version 1.3 .User-defined resolution supported, such as 15361536@60Hz, 1200*1800@60Hz
Control interface
Type	No	Description
RS232（RJ 11）	1	.Baud rate 9600， RJ 11 to RS232 cable provided.
Features
Fade in/fade out	.Every channel supports fade in/out switch.

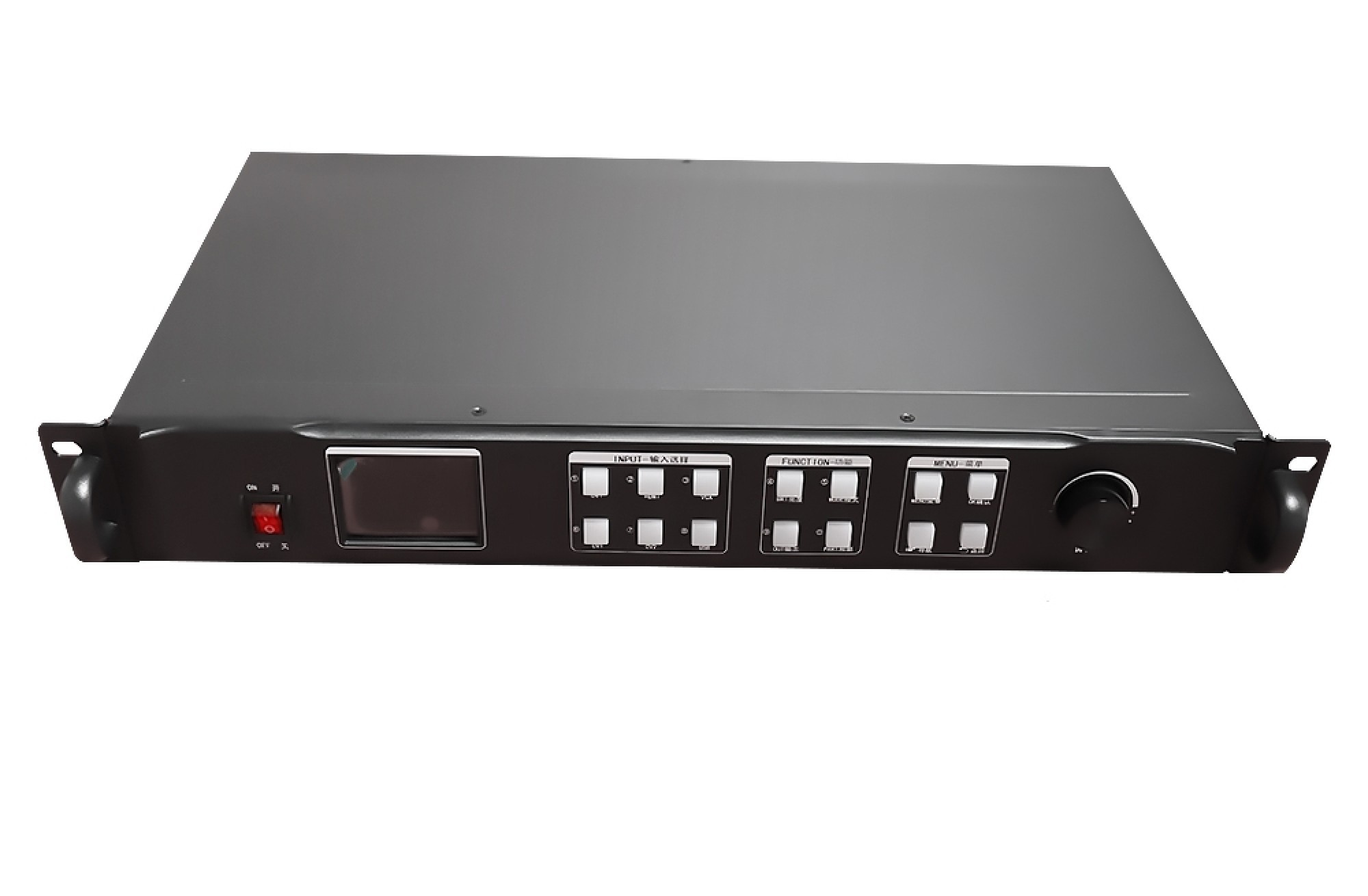

Humanized interface	.KS600 has color LCD panel, numerical buttons and adjustment knob and supports wizard setting.
Scheduled task	·Make timing operation to complete automatic management via KYSTR software
Others
Software control	RS232 /USB		Dimension (mm)	66(H)× 432(L)×225(W)
Weight(Kg)	3.5		Input power	100-240VAC， 47-63Hz， ≤2A
Work environment	Temperature: 0-40℃； humidity: 0-95%		Warranty period	1 year
