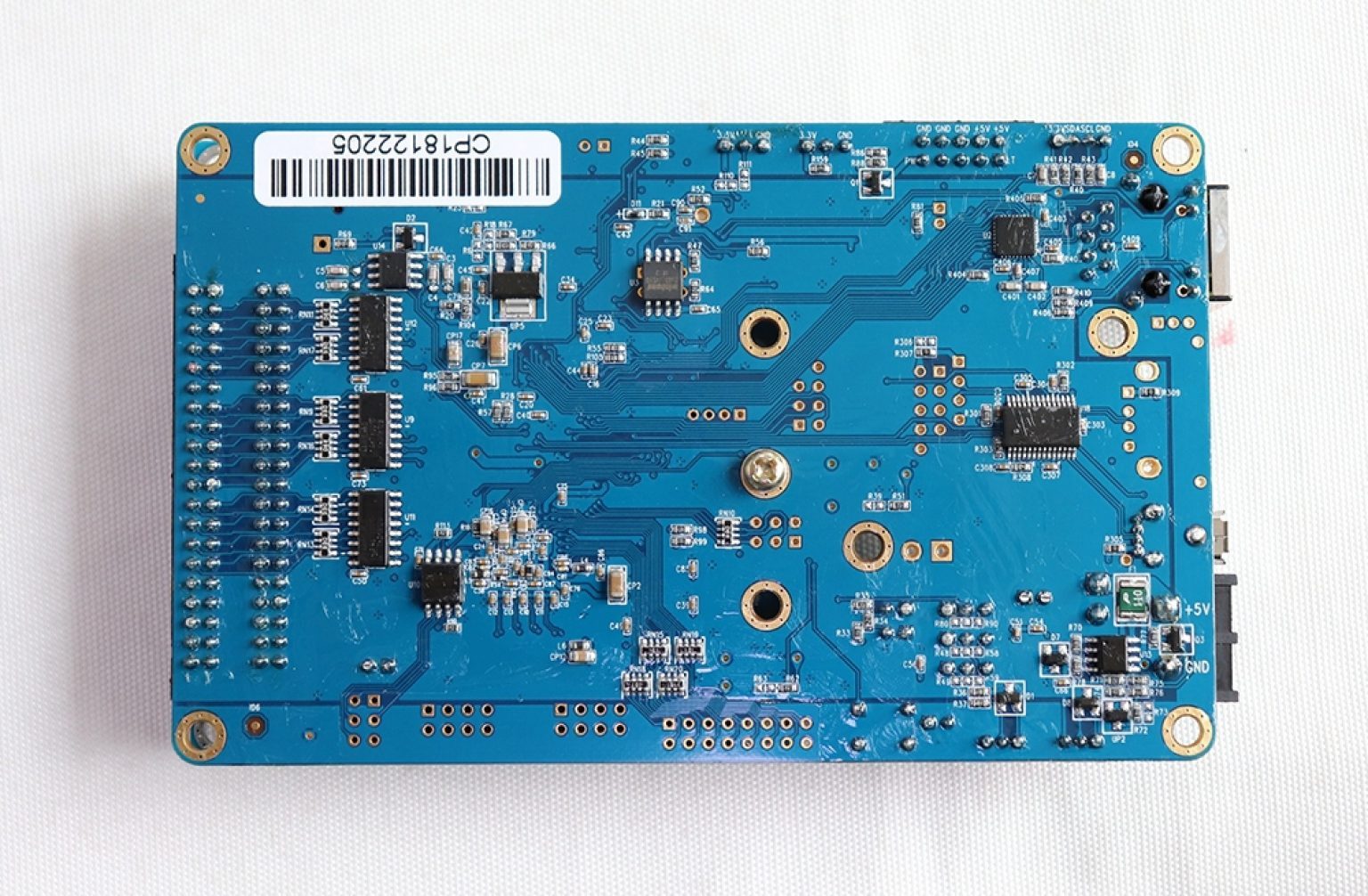

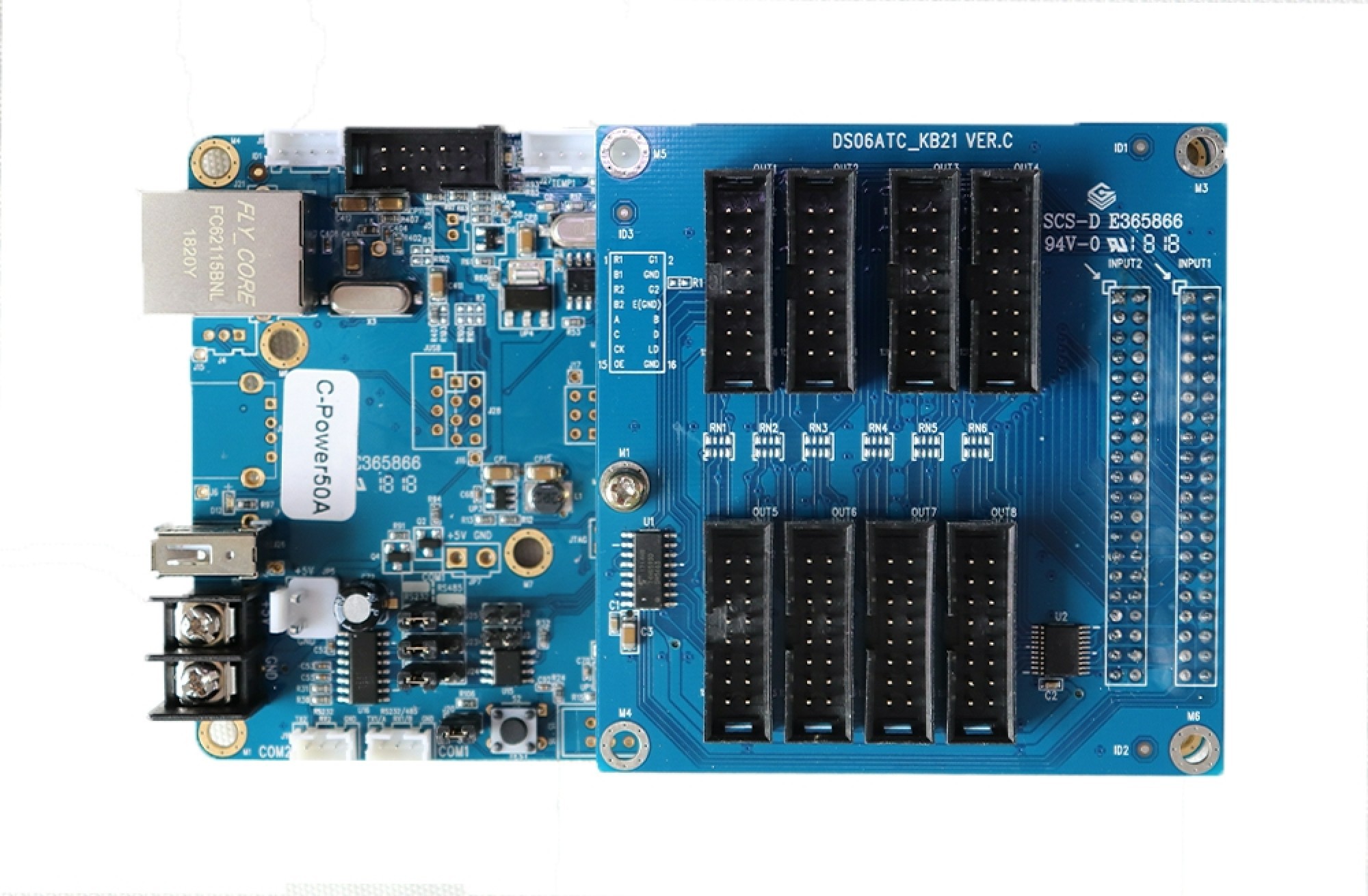

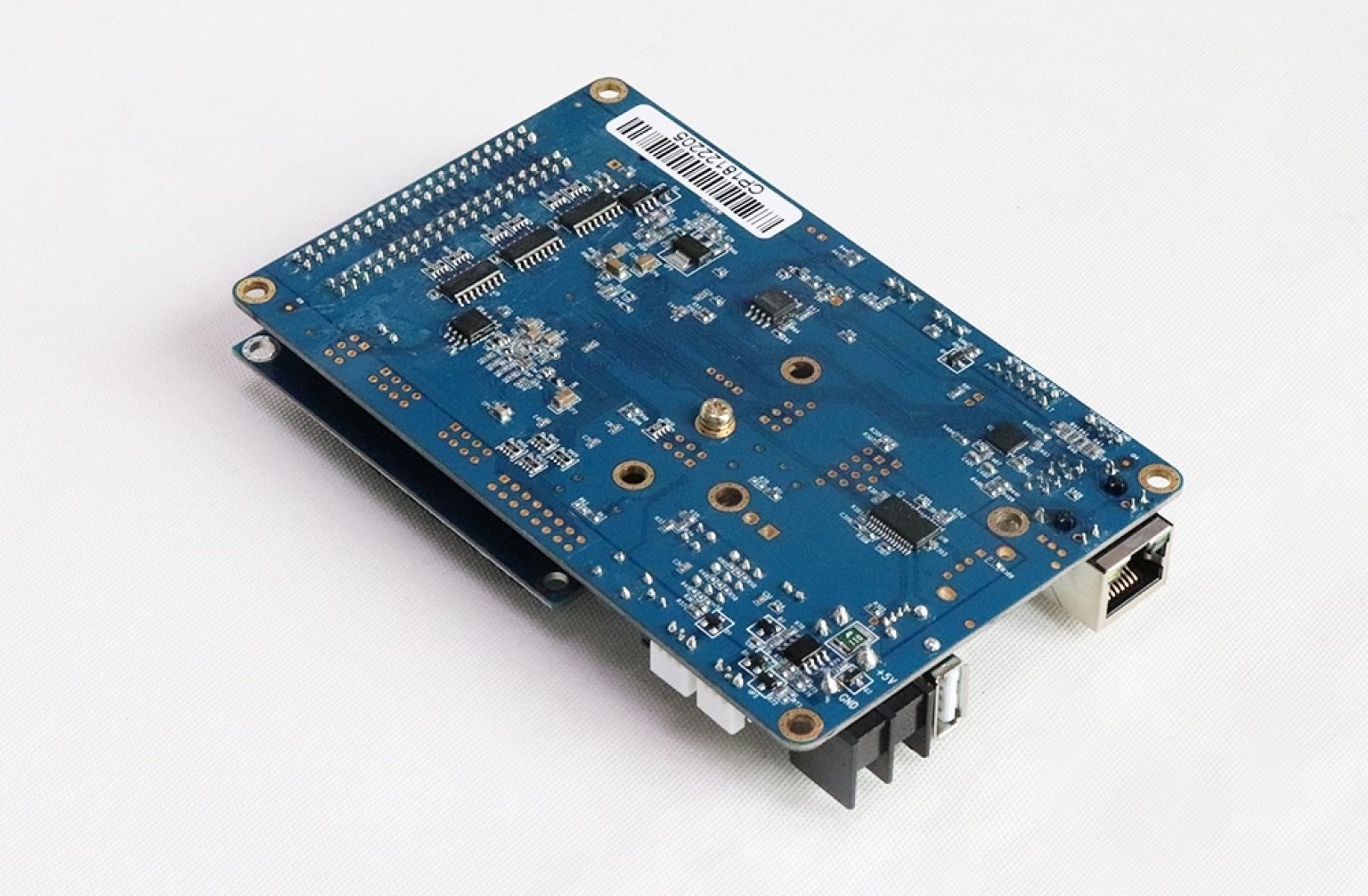

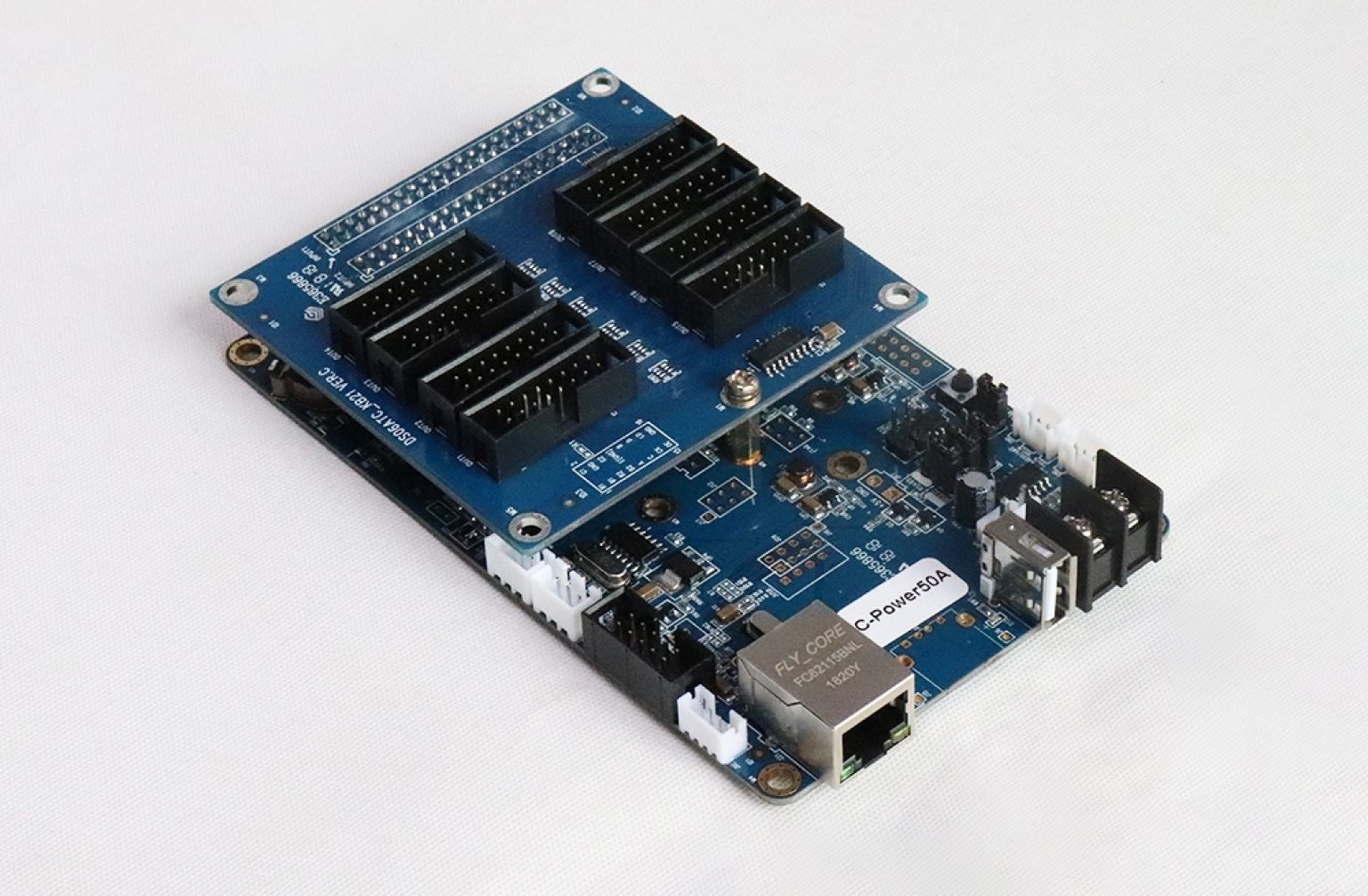

Lumen C-Power 5 Series LED Card Full Color Controller System with 4096-grade grey-scale, more powerful function with lower price, which make them much higher cost-performance and more competitive in the market.
Lumen C-Power 5 Series Full Color Controller Product Introduction:
    C-Power 5series card is the newly released newest full color grey-scale controller of Shenzhen Lumen Electronics Co.,ltd.
    C-Power 5series card is more powerful with lower price, which make them much higher cost-performance and more competitive in the market.
    C-Power 5series card is with 4096-grade grey-scale, support smart setting, easily to set all kinds of LED display.
    C-Power 5series card and C-Power full series products the same, with the same external protocol and secondary development interface.
    C-Power 5series card different versions:
  C-Power50A(TCP/IP and USB version) ; C-Power51A(WIFI version);C-Power51A-U(WIFI and USB version);
  C-Power51A-RN(WIFI and TCP/IP version); C-Power52A（GPRS version）;
  C-Power53A（3G version）;C-Power54A（4G version）
Lumen C-Power 5 Series Full Color Controller Feature and Specification:

Control size	512*256pixels, 4096-grade gray scales
(full , mono/RG color)	512*256pixels, 4096-grade gray scales
Memory	Total size: 256MByte（2Gbit)
	Program size: 128MByte
	Font library space: 128MByte
Program	All programs are transmitted by compression package, and then decompressed on control card.
	Supports video program
	Supports animation(swf,gif) , picture, text, clock, temperature, etc.
	Text program edit in any language, any font and any size, free adjust
	Transparent text and clock program can be edit to cover photo or video
	More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
	With multi-program mode. Stores up to 512 programs to the Led screen.
	With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
	Supports programs played at the appointed period (for example: week, hour, minute )
Separate window mode	Supports the segmentation of up to ten playing windows for each program.
Separate window mode	Supports playing the content in different formats for each playing window.
Affiliated features	With real-time clock (RTC) management and setting, support digital and analogue clock.
	Supports environmental data programs like temperature, etc.
	Supports sensors installed externally (32-grade brightness)
Font library	128MB font library space
	The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,
	Up to 8 different font libraries can be stored and displayed at the same time
	We supply font library edit tools and update tools
	Support Hong Kong supplementary character fonts, Hindi
Standard software	LedCenter V5.3.3 or above
Standard communication mode	TCP/IP and USB version：TCP/IP network interface、U disk interface
	WIFI version：integrate WIFI module
	GPRS version：integrate GPRS module(Dual-band or Quad-band)
	All version of the standard RS232/RS485 : maximum baud rate: 115200
InDa remote & keyboard	Program list edit and display control by infrared controller or keyboard
External communication components	Supports various wireless communication modes: ZigBee, RF…
Others	Provides customized development interface andits manual.
	Provides demonstration program and source codeforcustomized development
	Besides, provides “Wireless information issue”version.
