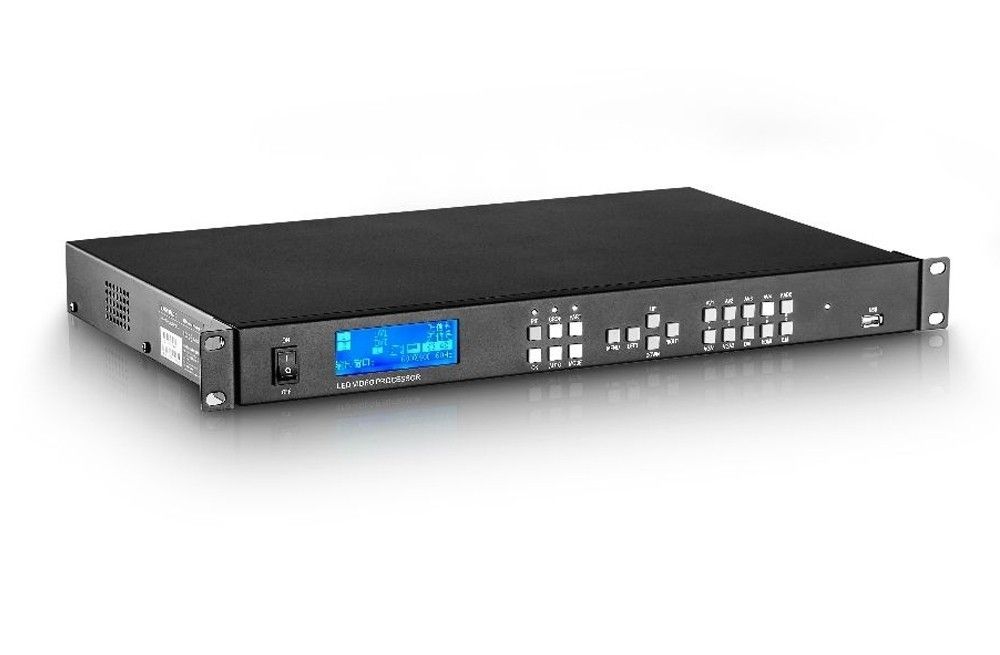

Magnimage LED 540C LED Display Video Processor

LED-540C series is the video processor developed for the large screen display system, adopted the top image processing chips, internal 12 bits processing, with clearer images and richer colors.
It supports the seamless switch beterrn different input signal sources and picture in picture function.

$456.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Magnimage LED 540C LED Display Video Processor

LED-540C series is the video processor developed for the large screen display system, adopted the top image processing chips, internal 12 bits processing, with clearer images and richer colors.
It supports the seamless switch beterrn different input signal sources and picture in picture function.

Magnimage LED 540C LED Display Video Processor functions:

Seamless splicing
Switching
Fade in/fade out
Image crop
Image freeze
Dual image
Template setting
Multi-machine casecade
Text overlay
Accurate brightness control
Hot back
User friendly operation
Single machine maximum output resolution:2560×1152/60Hz 2304×1152/60Hz 1536×1536/60Hz

Magnimage LED 540C LED Display Video Processor Specification:

Inputs

Ports	No.	Resolution Specification
AV	4	PAL NTSC SECAM
VGA	2	VESA
DVI	1	VESA
HDMI	1	HDMI 1.3
SDI^*	1	3G SDI

Outputs

Ports	No.	Resolution Specification
DVI loop	1	Same as DVI input
SDI loop^*	1	3G SDI
VGA	1	1024×768/60Hz/75Hz/85Hz/100Hz/120Hz 1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz-Reduced 1920×1080/60Hz/50Hz 2560×816/60Hz 1920×1200/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz
DVI	2

^* Optional

Cosole specification

Power supply	100～240 AC 50/60Hz
Power consumption	25W
Operation temperature	0～45℃
Product dimension(LWH)	482.0×282.0×125.0mm
Packing dimension(LWH)	555.0×395.0×125.0mm
N.W.	3.5kg
G.W.	5.5kg
