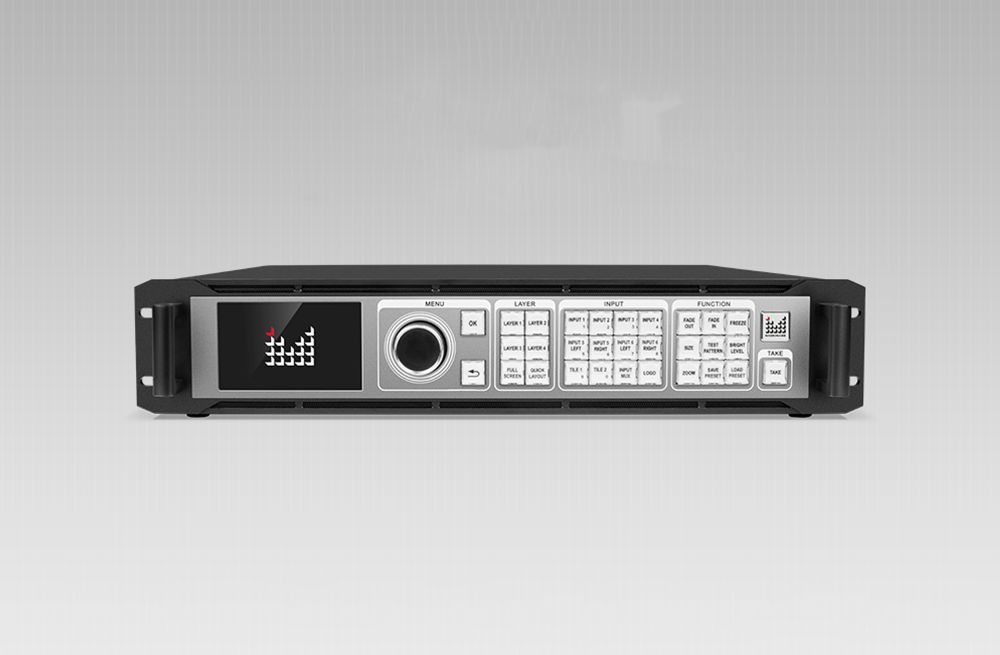

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Features:

 8K x 2K mosaic outputs: W4000 has two output modes: DVI output and HDMI output. The outputs are divided into two groups, each group including 4 DVI and 2 HDMI 2.0
 Multiple input ports: DVI-D (4K×1K/60Hz), DP1.1, HDMI1.4, SDI (3G-SDI）
 Two expanded input ports: DP1.2 (4K×2K/60Hz or 8K×1K/60Hz) and HDMI 2.0

$1,898.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Features:

 8K x 2K mosaic outputs: W4000 has two output modes: DVI output and HDMI output. The outputs are divided into two groups, each group including 4 DVI and 2 HDMI 2.0
 Multiple input ports: DVI-D (4K×1K/60Hz), DP1.1, HDMI1.4, SDI (3G-SDI）
 Two expanded input ports: DP1.2 (4K×2K/60Hz or 8K×1K/60Hz) and HDMI 2.0
 Different working modes are available: Mosaic mode, HDMI Switcher mode, Backup mode
 Mosaic mode: 8K×2K/60Hz input and output pixel-to-pixel display
 HDMI Switcher mode: 4K preview/switch, seamless switching between 3 layers and 3 layers
 Backup mode: input signal hot backup or manual backup and seamless switching between input signal or tile input
 Multi-machine cascading mosaic synchronously, and Take seamless switching
 HDR 10
 10 BIT processing
 HDCP1.4 & 2.2 compliant
 Touched screen operation
 Supports saving & loading of maximum 20 presets, and time tasks
 Supports setting of brightness, Gamma, contrast, saturation, color temperature etc., low light level and high gray level
 Built-in test pattern
 Supports pixel point acquisition, real-time display of RGB values of pixels at any position in the output window
 Supports PC software control, network port and RS232 connection
 Supports LOGO, chroma key function
 Supports USB upgrade

Magnimage LED-W4000 LED Wall Screen 8K x 2K Video Processor Parameter:

Port	Quantity	Resolution
DVI	4	3840×1080/60Hz and EDID management
DP	4	3840×1080/60Hz、3840×2160/30Hz and EDID management
HDMI	3	3840×1080/60Hz and EDID management
SDI	1	480i/60Hz 576i/50Hz 720p/60Hz 1080i/50Hz/60Hz 1080p/50Hz/60Hz(3G SDI)
Extend Input Indication
Port	Quantity	Resolution
DP1.2	2	4096×2160/60Hz、7680×1080/60Hz and EDID management
HDMI2.0	2	3840×2160/60Hz and EDID management
Each group extendable 1xDP, 1xHDMI, 1xHDMI loop, maximum 2 groups
Output Indication
Port	Quantity	Resolution（single output）
DVI	4×2	1024×768/60Hz 1280×1024/60Hz 1024×768/120Hz
		1280×720/59.94Hz 1280×720/60Hz 2048×1920/60Hz
		1600×1200/60Hz 1600×1200/60Hz-reduced 1680×1050/60Hz
		1920×1080/59.94Hz 1920×1080/60Hz 1920×1080/50Hz
		1920×1200/60Hz 1920×1280/60Hz 2048×1152/60Hz
		1024×1280/60Hz 1536×1536/60Hz and EDID
HDMI	2×2	1920×1080/60Hz 1920×1080/120Hz 3840×1080/60Hz
		3840×2160/30Hz 3840×2160/60Hz 4096×1280/60Hz
		4096×1280/30Hz 4096×2160/60Hz 2560×1080/120Hz
		2560×1440/90Hz and EDID
Genlock	IN×1、OUT×1

Input power supply	100-204V AC 50/60Hz
Power consumption	90W
Operating temperature	0~45°C
Overall dimension（L×W×H）	482.6×446.3×92.5mm
