This splicing processor is 3-channel splicing, 1-channel monitoring, with a total load point of 7.95 million points. The widest/highest stitchable 11520/5760 dots. It can realize functions such as equal division splicing, unequal division splicing, three-screen splicing roaming, etc.

$108.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

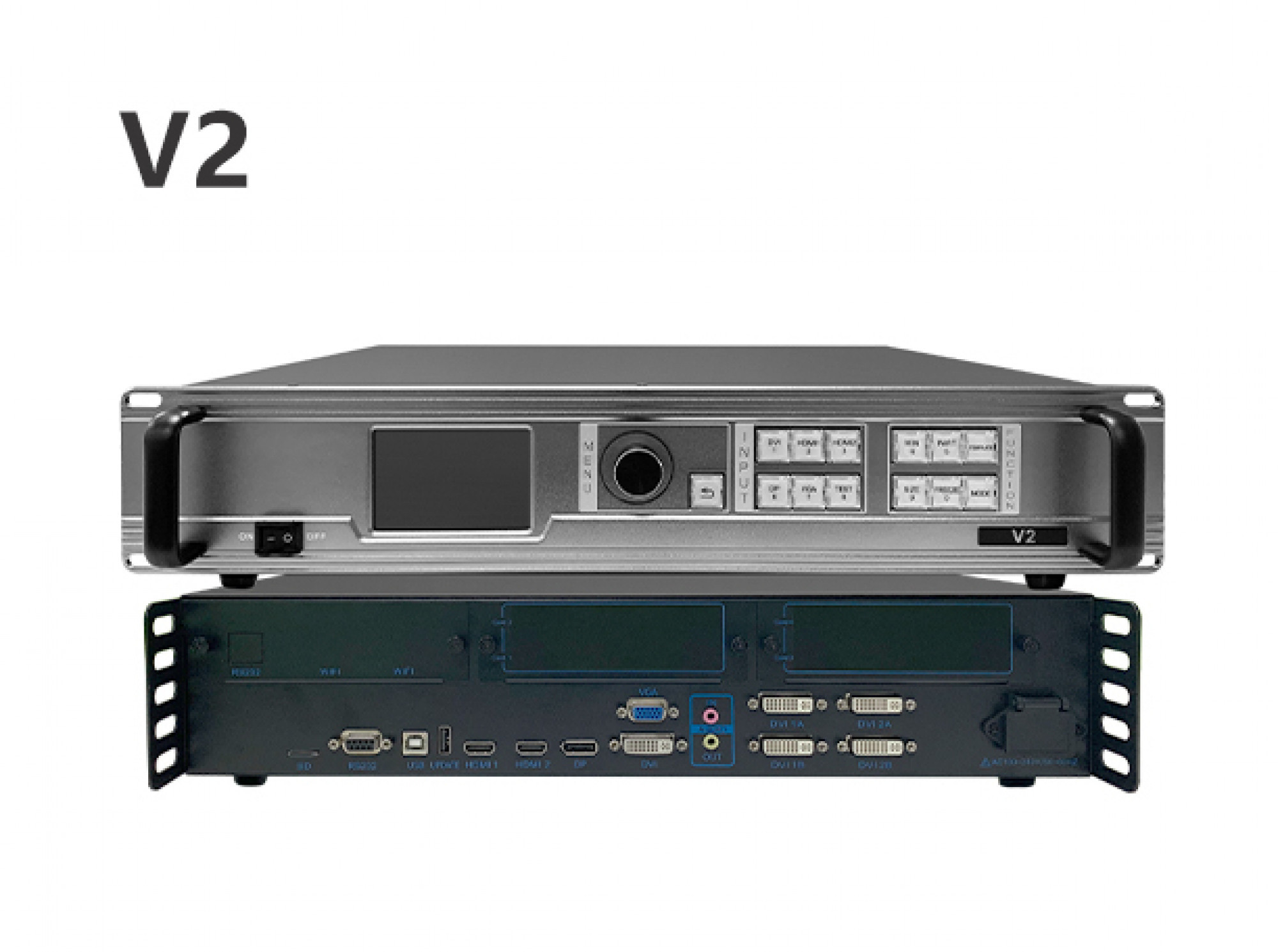

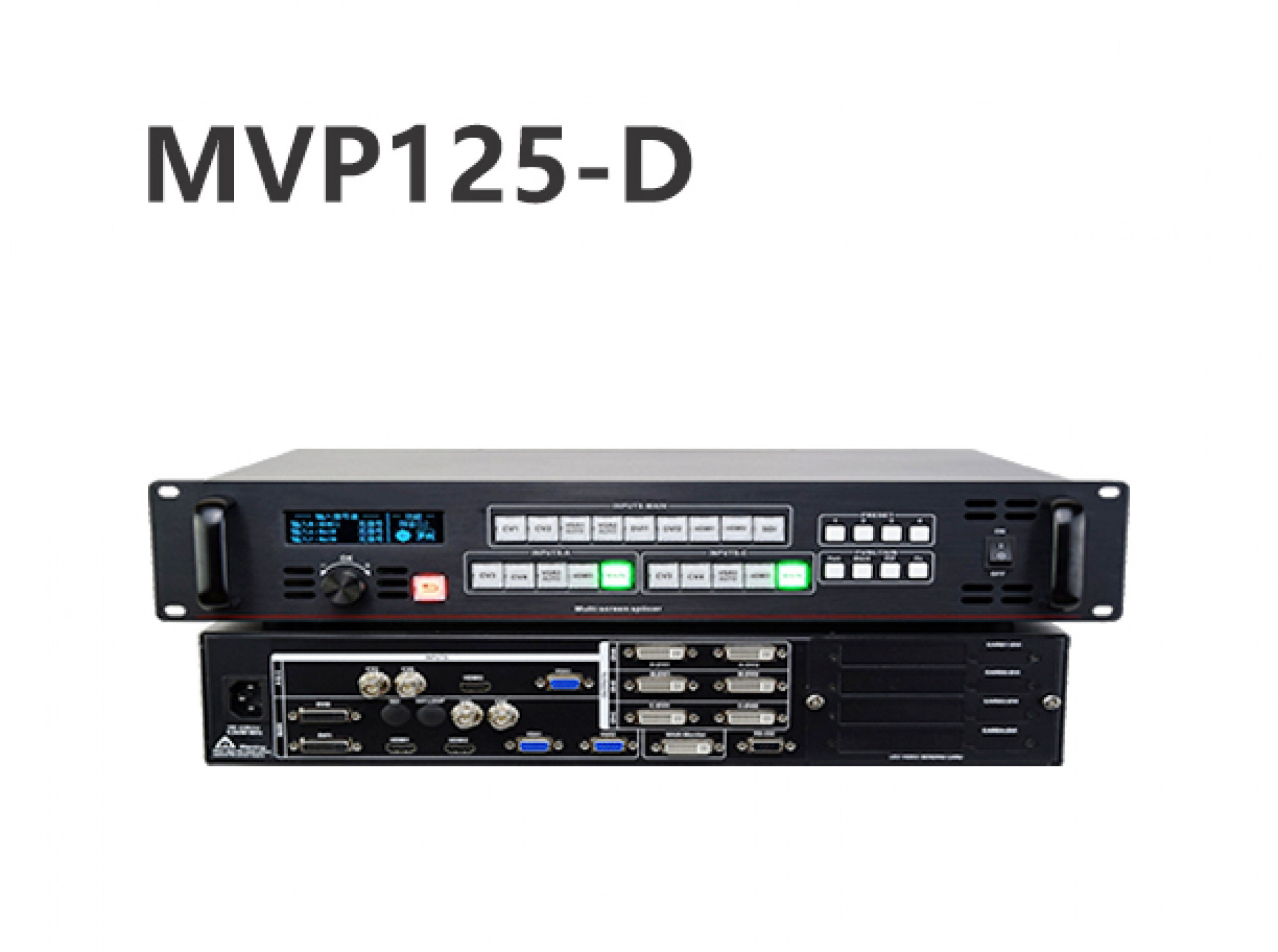

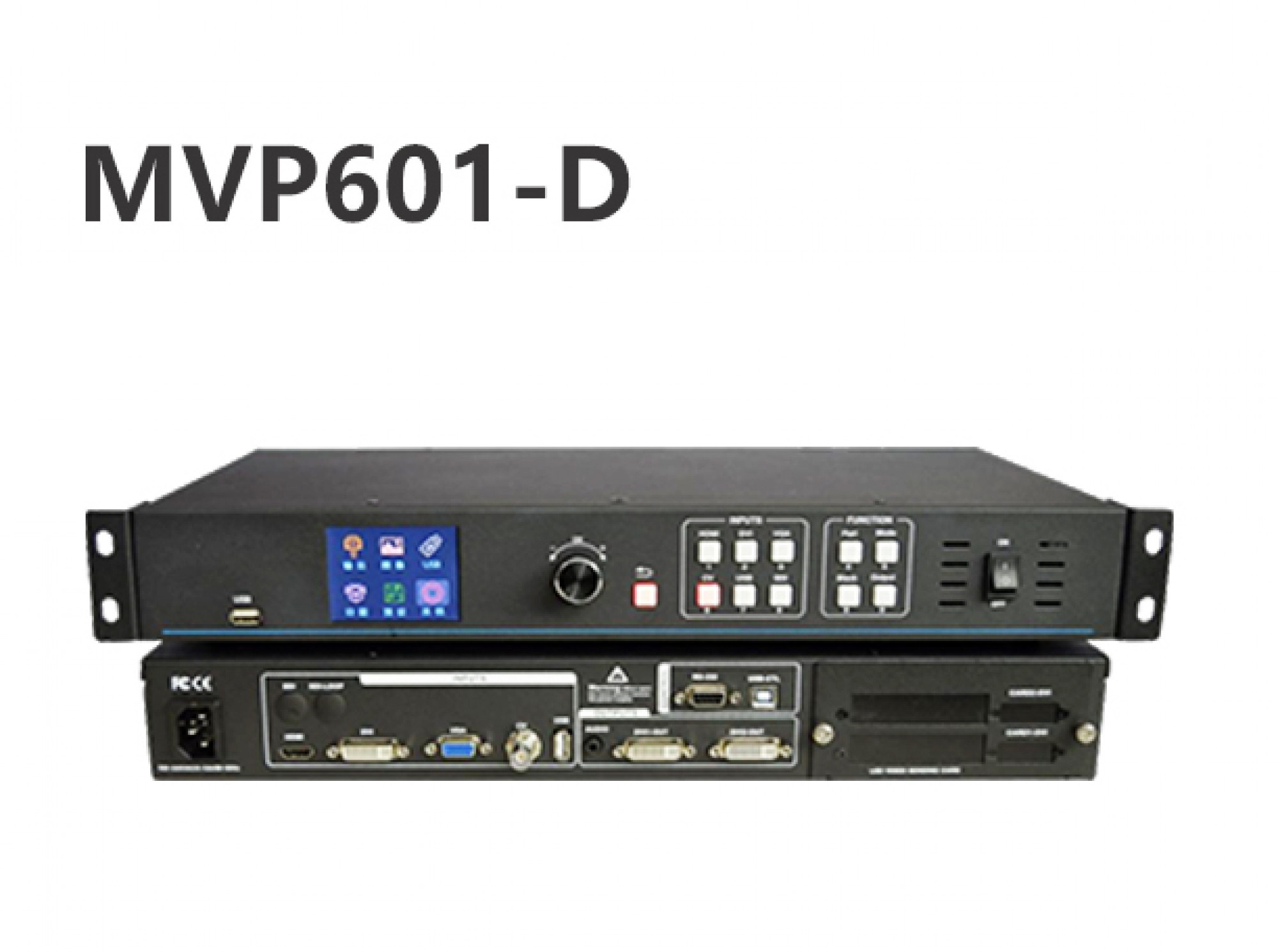

Mooncell V2/MVP125-D/MVP601-D Full Color LED Video splicer series features：

DVI video input
Enter Quantity: 2
Interface form: DVI socket
Signal standard: DVI1.0, HDMI1.3 backward compatible
Support resolution: VESA standard, PC to 1920X1200, HD to 1080P

HDMI video input
Enter Quantity: 3
Interface form: HDMI socket
Signal standard: DVI1.0, HDMI1.3 backward compatible
Support resolution: VESA standard, PC to 1920X1200, HD to 1080P

VGA video input
Enter Quantity: 3
Interface form: DB15 socket
Signal standard: R, G, B, Hsync, Vsync: 0 to1vpp±3dB(0.7V Video+0.3V Sync)
75 ohm black level: 300mV Sync-tip: OV
Support resolution: VESA standard, PC to 1920X1200,

Composite video CVBS input (CV)
Number of inputs: 4
Interface form: BNC
Signal standard: PAL/NTSC 1vpp±3d8(0.7V Video+0.3V Sync) 75 ohm
Support resolution: 480i, 576i

3G-SDI video input option
Enter Quantity: 1
Interface form: BNC
Signal standard: SD-SDI, HD-SDI, 3G-SDI
Support resolution: 1080p 60/50/30/25/24/25(PsF)/24(PsF)
720p 60/50/25/24
1080i 1035i
625/525 line

Specifications Download
Mooncell V2 Video splicer series Specifications
Mooncell MVP125-D Video splicer series Specifications
