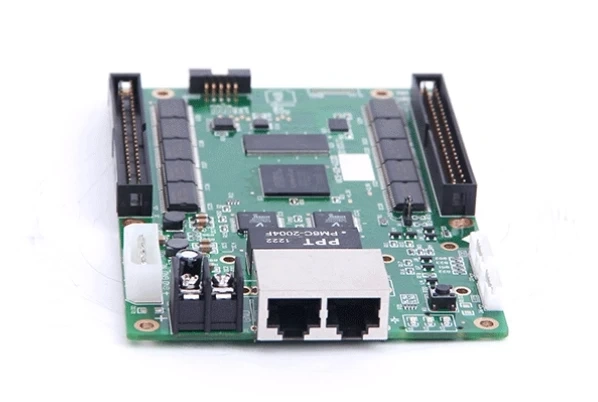

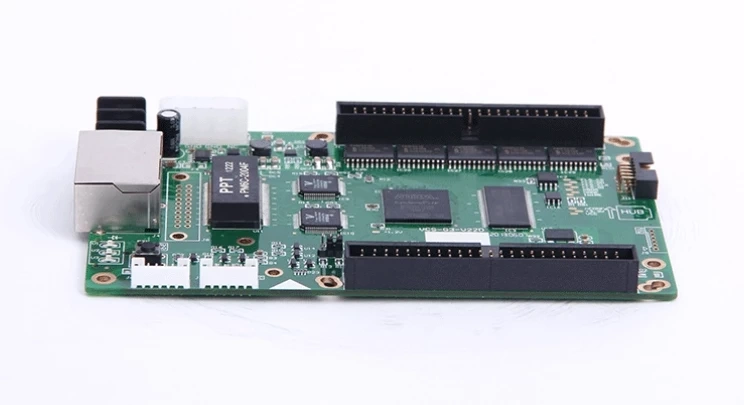

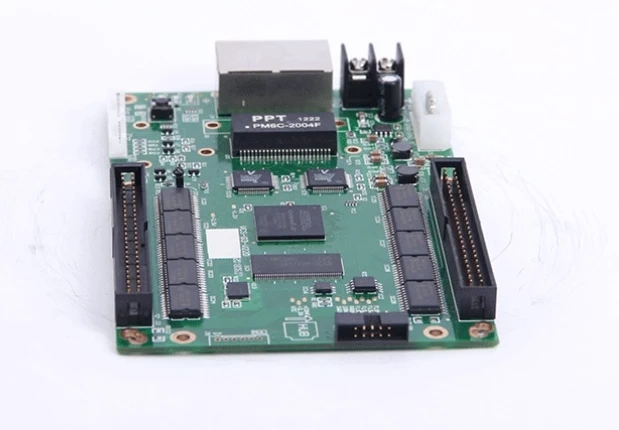

Name: Mooncell VCSG3-V22D LED Screen Receiving Card
Brand: Shopping LED Screen controller Video processor power supply
SKU: Mooncell-VCSG3-V22D
Price: 52 USD
Availability: InStock

SKU: Mooncell-VCSG3-V22D

Mooncell VCSG3-V22D LED Screen Receiving Card

$52.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Mooncell VCSG3-V22D LED Screen Receiving Card Features:

1. It conventionally has 16 sets of RGB Output, which can be extended to 32 Sets.

2. The maximum output of the RGB is 21 sets

3. One single card Connection in series can get 64sets of RGB output, which can be extended to 128

4. The maximum pixel that one can could load is 64K, each set of the data could load 8k pixel.

5. Input voltage: 3.5V–6V

6. High Refresh rate, high brightness and high gray grade with common IC(Driver).

7. Dual backup for the network Cable

8. To get the single pixel calibration without decreasing the pixel load area

9. Variety of Drivers are supported. It supports PWM IC, Point by point Detecting IC and Conventional IC.

10. It supports to save the settings before hand.

11. It supports to monitor all the parameters of the receiving card.

12. It supports to monitor the environment.

13. Intelligent recovery function, swapping the receiving cards without the need of loading all the data again.

14. Companied with Mooncell Intelligent Power Supply( two power supplies as in parallel, equalized current, short-circuit protection) you will never ever get black screen.
