Name: Novastar A10S Plus Large LED Panel Receiving Card
Brand: Shopping LED Screen controller Video processor power supply
SKU: Novastar A10S PLUS
Price: 39 USD
Availability: InStock

SKU: Novastar A10S PLUS

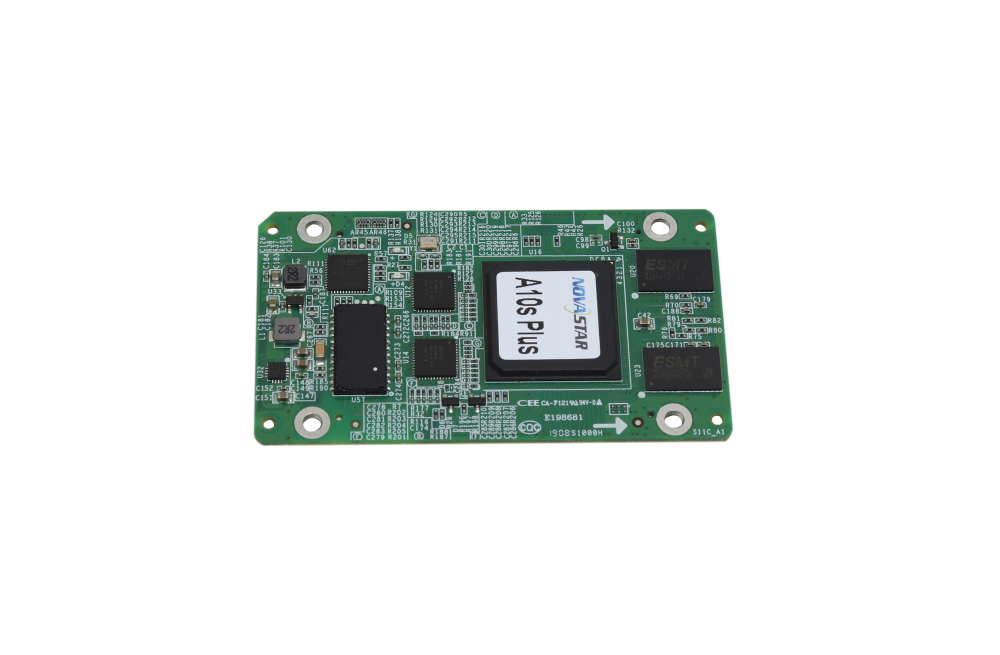

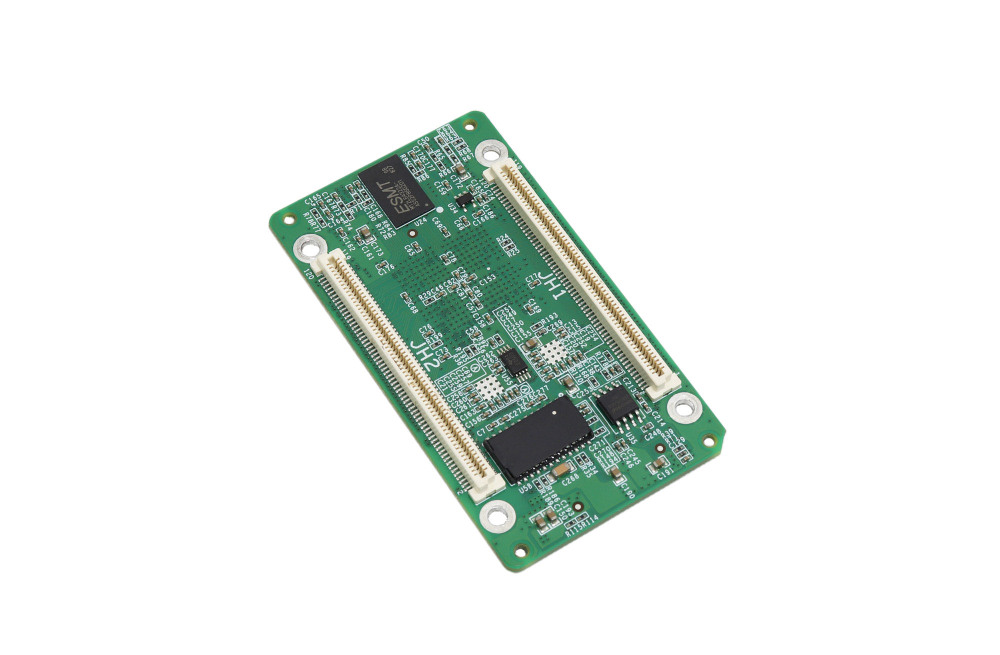

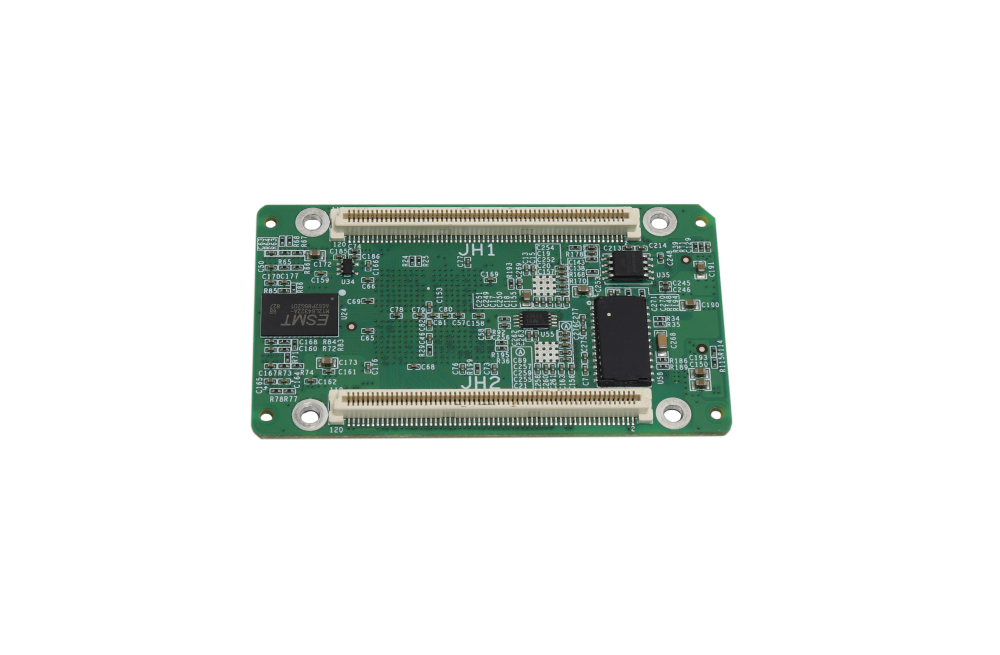

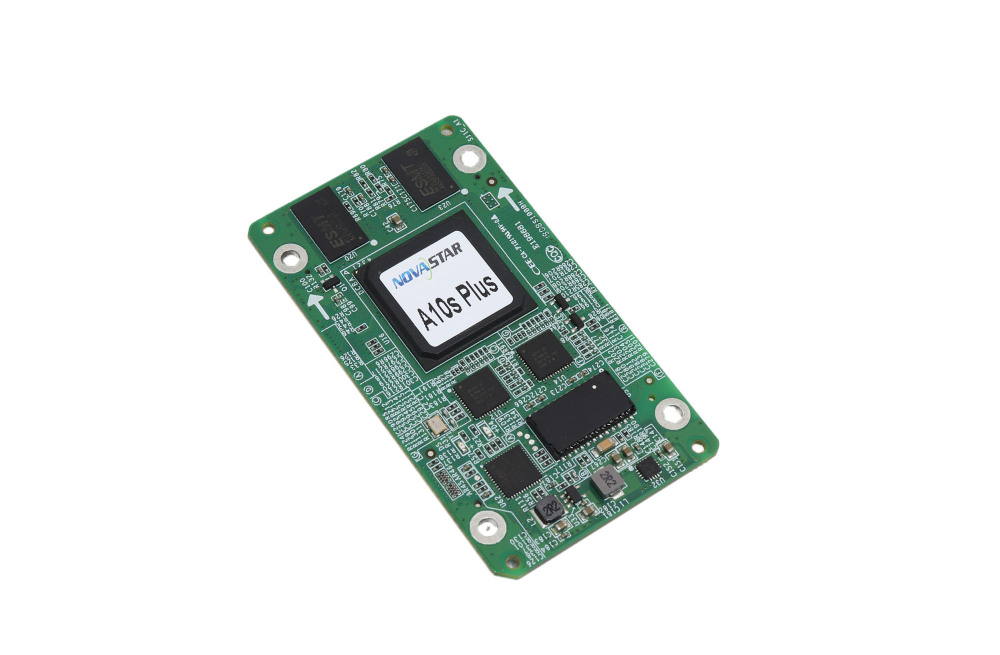

Novastar A10S Plus High-end Large LED Panel Receiving Card is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 pixels. It can support up to 32 groups of parallel data or 64 groups of serial data.

$39.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Novastar A10S Plus Large LED Panel Receiving Card is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 pixels. It can support up to 32 groups of parallel data or 64 groups of serial data.

Novastar A10S Plus Features:

Advanced Hardware Design:

The small hardware footprint saves cabinet space and is suitable to a variety of applications.
Uses dust-resistant high-density connector to limit effects of dust and vibration, resulting in high stability and reliability.
Integrated network transformer features simple design and improved electromagnetic compatibility.

Useful Software Design:

Supports up to 1/64 Scan.
Supports the following functions when working with NovaLCT (V5.2.0 and later)
- Supports random order scanning of module.
- Lights the modules with data row extracting and channel extracting.
- Supports precise grayscale correction.
- Supports individual Gamma adjustment for RGB.
- Supports bit error detection.
Supports HDR function.
Supports low latency function.
Supports 18Bit+ to display image with high brightness or low grayscale.
Supports ClearView high image quality display.
Supports LVDS transmission (supported by dedicated firmware program).
Supports smart module (supported by dedicated firmware program).
Supports quick seam correction.
Supports 3D function
Supports auto module calibration.
Supports Mapping function.
Supports setting of pre-stored image on receiving card.
Supports module Flash management.
Supports voltage and temperature monitoring of card without use of peripherals.
Supports cabinet LCD.
Supports image rotation in 90° increments.
Supports display rotation at any angle.

Novastar A10S Plus LED Panel Receiving Card Parameter:

Maximum Loading Capacity	512×512 pixels
	Input voltage	DC 3.3 V– 5.5 V
	Rated current	0.5 A
Electrical Parameters	Rated power consumption	2.5 W
Operating Environment	Temperature	-20°C–70°C
Operating Environment	Humidity	10% RH–90% RH, non-condensing
Storage Environment	Temperature	-25°C–125°C
Storage Environment	Humidity	10% RH–90% RH, non-condensing
Packing Information	Packing specifications	An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 40 receiving cards.
Packing Information	Packing box dimensions	378.0 mm × 190.0 mm × 120.0 mm
Dimensions	80.0 mm × 45.0 mm ×7.3 mm
Net Weight	22.3 g
Certifications	RoHS, EMC Class B

Specification Download :
A10s Plus Receiving Card Specifications V1.0.3
