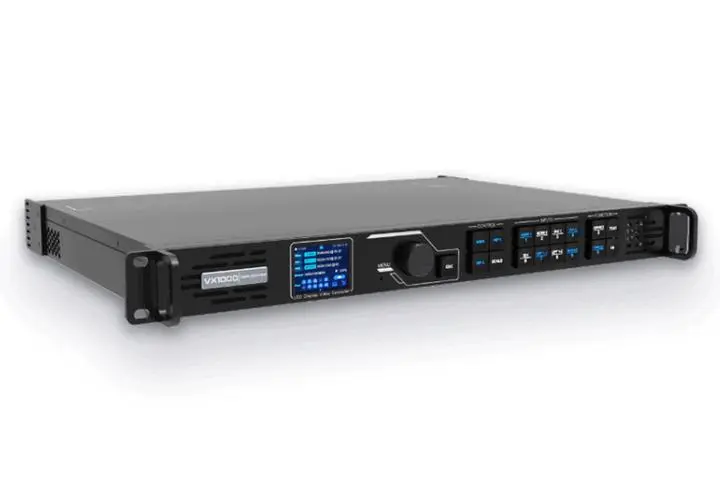

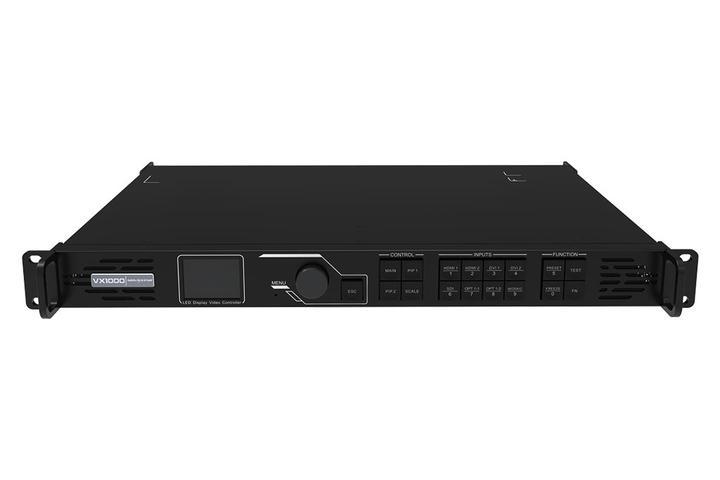

Novastar VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

• Rich interface, easy to use

10 Gigabit Ethernet ports, 6.5 megapixel with load
4-channel 4K1K@60Hz input
Support fiber optic long-distance transmission solution
Support input Mosaic splicing

• Multi-sample layers, one-click scaling

Support 3 layers 10 scenes
All layers support 4K1K input, opacity adjustment
Main layer support fade in and fade out switch
One-click full-screen zoom, support Superview III algorithm

• Full backup, safe and worry-free

Support network port backup
Support whole device backup
Support device parameter backup

• More features Come and explore!

New low latency solution, less than 1 frame
Multi-use, three modes selection
Support 3D display solution
Support TCP/IP debugging network port, USB cascade control more quickly

Specification
Model: VX1000
With load: 6.5 megapixels, width 10240, height 8192 | 3.9 megapixels, width 10240, height 8192
Layers: 3 x 4K1K layers | 3 x 2K1K layers
Input Connector: 3G-SDI*1 HDMI1.4*2 DVI(HDMI 1.4)*2 OPT1 input*1 | 3G-SDI*1 HDMI1.3*2 DVI(HDMI 1.3)*1 OPT1 input*1

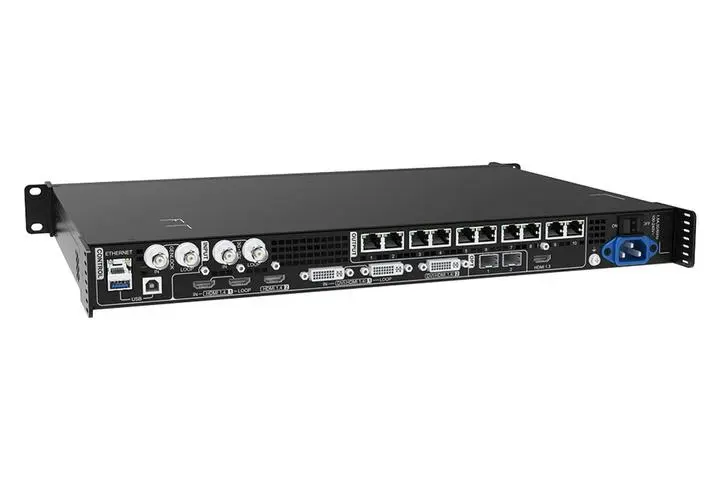

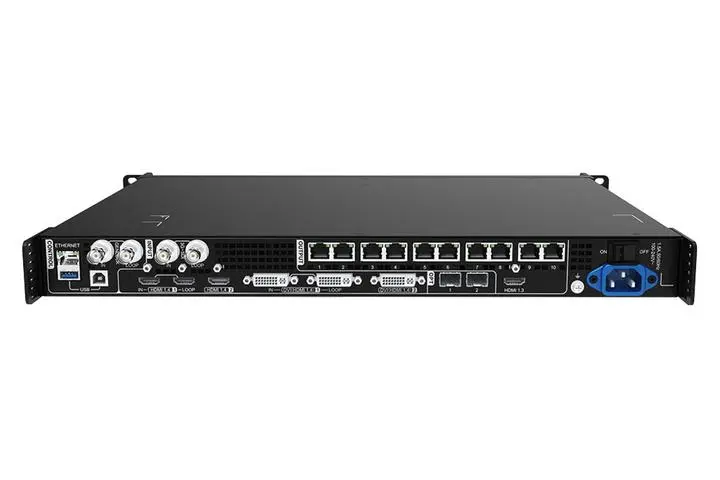

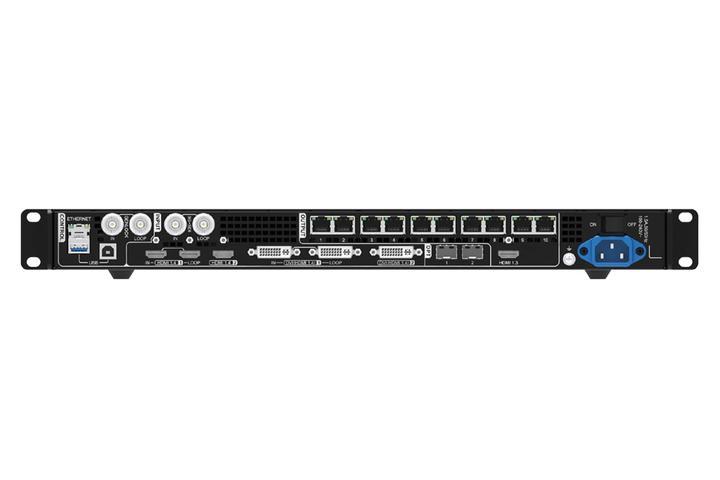

Output interface: Network port*10 HDMI 1.3*1 | Network port*6 HDMI 1.3*1
Optical interface: OPT*2
Control interface: Network port USB (input and output) Genlock (IN-LOOP)
Other functions: spliceable, cascadable, customizable function keys, support scene saving and calling, picture quality adjustment.

Novastar VX1000 LED Video processor Working Diagram



Specifications Download
VX1000-All-in-One-Controller-Specifications-V1.0.1
