Overview

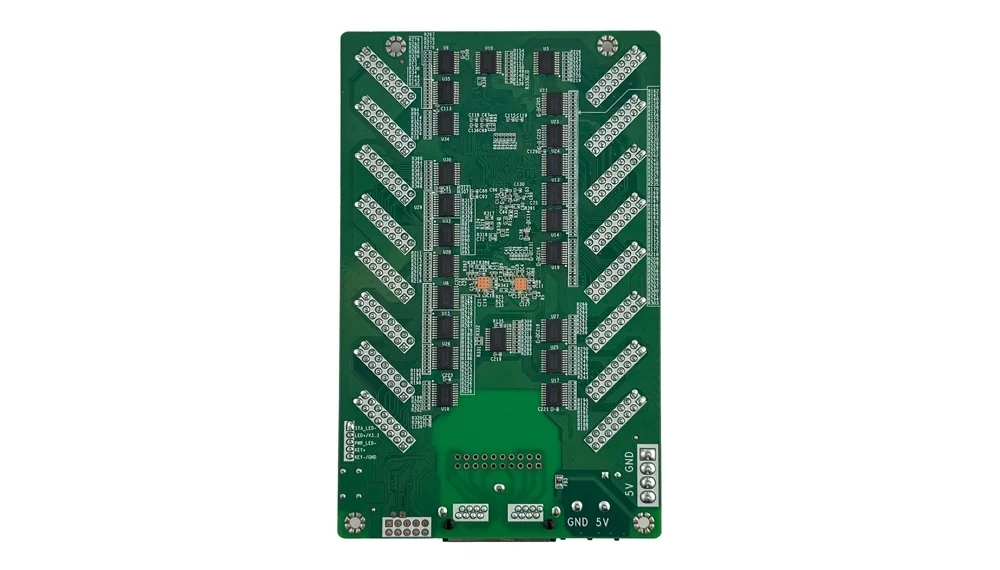

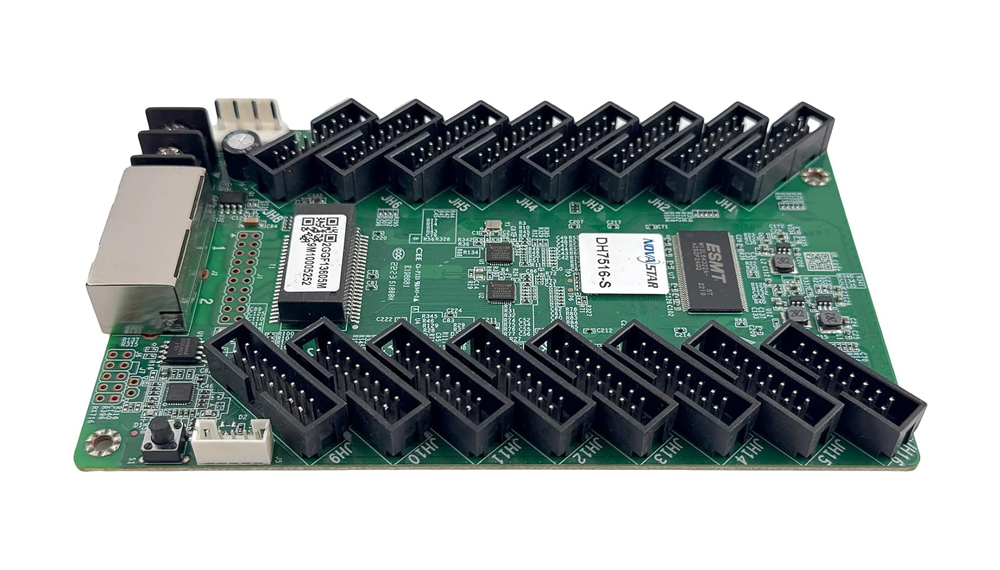

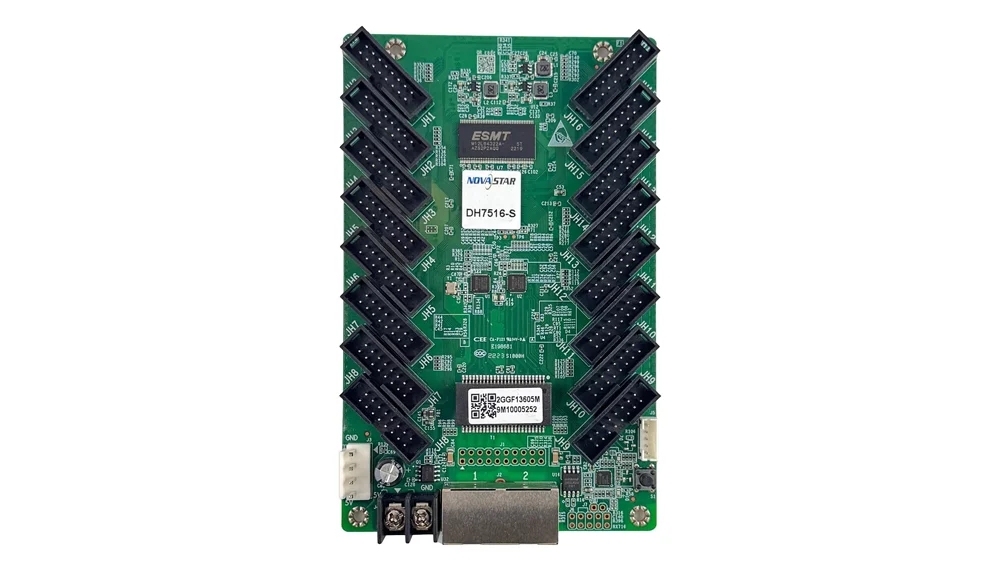

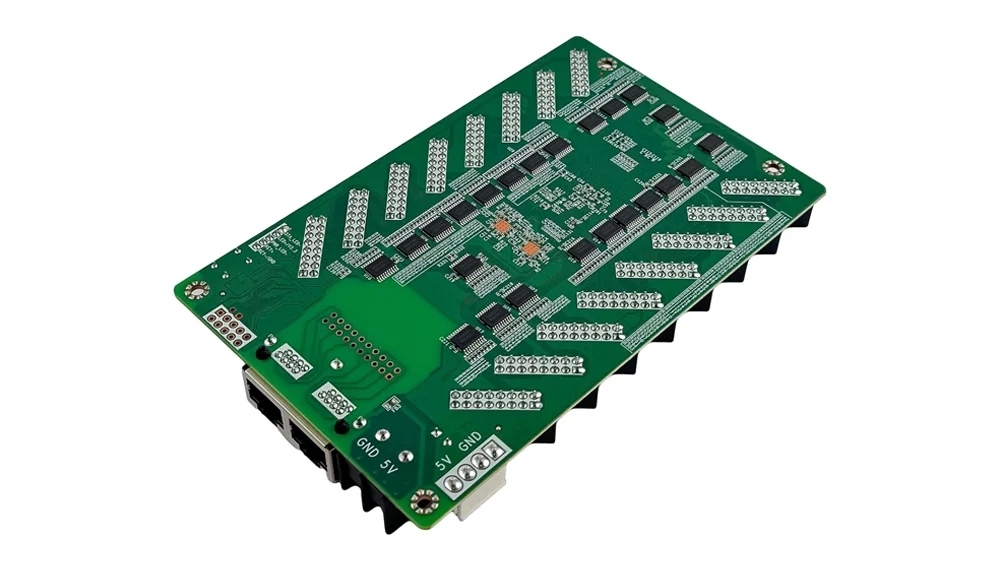

The DH7516-S is a general receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). Supporting various functions such as Brightness Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the DH7516-S can significantly improve the display effect and user experience.
The DH7516-S uses 16 standard HUB75E connectors for communication, resulting in high stability. It supports up to 32 groups of parallel RGB data and is suitable for various on-site setups.

Features

 High-Resolution Support – Handles up to 512×384 pixels, ideal for LED display controllers and LED video wall controllers, delivering crisp visuals for indoor and outdoor LED display receivers.
 16 HUB75E Interfaces – Features HUB75E LED receiver ports for stable, high-speed signal transmission in HUB75 receiving card setups for digital signage controllers.
 Pixel-Level Calibration – Offers pixel-level calibration DH7516-S and LED brightness correction for uniform color and brightness.
 RGB Gamma Adjustment – Supports RGB gamma adjustment LED for enhanced color accuracy and vibrant image reproduction.
 3D Display Compatibility – Functions as a 3D LED display controller, ideal for immersive LED display signal processor systems in events and exhibitions.
 High Refresh Rate – Provides ≥60Hz refresh rate for flicker-free visuals and low-latency LED receiving card performance in broadcasting and live events.
 Smart Module Integration – Enables LED display mapping and flexible pixel layouts via NovaStar NovaLCT (v5.3.0+) and V-Can software.
 Dual Card Backup – Features dual card backup DH7516-S for uninterrupted signal redundancy in critical applications.
 EMC Class B Compliance – Certified EMC Class B receiving card for reduced electromagnetic interference and stable operation.
 Versatile Applications – Ideal for LED display systems in digital signage, retail, control rooms, and broadcasting environments.


Specification Download:
Novastar DH7516-S LED Screen Receiving Card Specification
