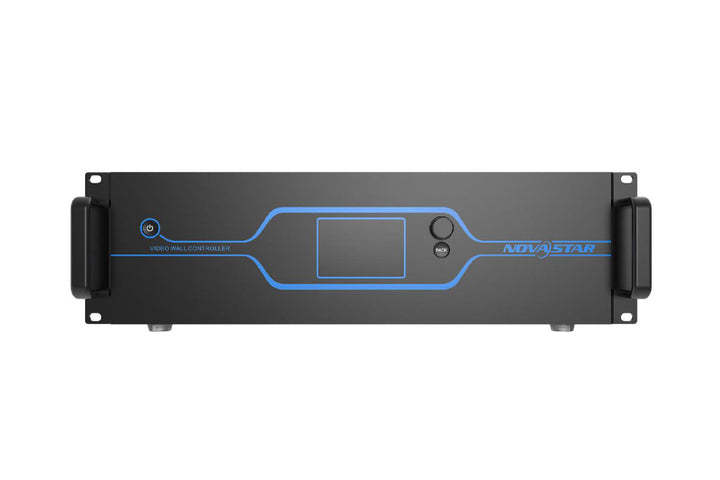

The E3000 is a HDCP-compliant video splicing processor developed by Nova Technology. The E3000 is modular and offers 4 cards with 16 inputs and 3 cards with 12 outputs. Can be configured with a variety of input and output interfaces, such as: DVI, HDMI, SDI interface, and equipped with powerful image processing capabilities, support 4K HD input and output high-quality portrait.
E3000 is equipped with 3 output cards and 12 output interfaces. Each card output load capacity can reach 4K×2K@60Hz. The single machine supports up to 24 Single Link hybrid layers. When a single E3000 is fully loaded, the output capacity can reach 24KK.
The E3000 provides 72 hours of uninterrupted and stable operation, and is widely used in large screen applications such as government, enterprises and military command centers.

Novastar E3000 LED Video Splicer Features:

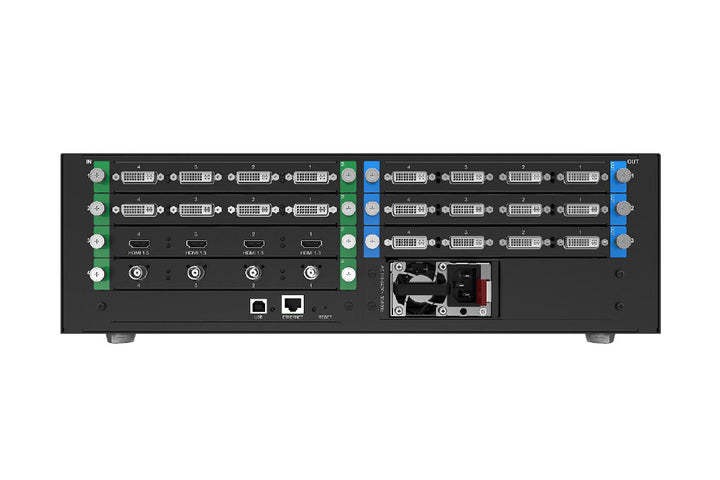

• The device adopts modular and plug-in design, and the single machine supports up to 16 inputs and 12 outputs.
• Supports up to 24 Single Link blending layers. The position and size of the layer can be adjusted. You can add borders to the layer and set and set the width and color of the border.
• Supports 3 input source EDI settings.

1. − Support for preset EDID.
2. − Support for custom EDID.
3. − Support advanced settings EDID, set the timing parameters of the video source.

• The maximum resolution of a single output card can reach 4096×2160@60Hz.
• Each layer supports brightness, hue adjustment, saturation and layer transparency adjustment.
• Support BKG settings, BKG file adaptively spreads the display.
• Support LOGO settings, the file supports up to 512 × 512, the position is adjustable.
• Supports input source fetching and storage as BKG files.
• Supports 128 user scenarios, allowing users to flexibly save and save scenes.
• PVW to the LED screen's upper screen special effects switch, can present professional quality presentation screen.
• − Take: Supports 13 effects and can set the switching speed.
• − T-bar : Manually control the “Fade in and Out” effect switching speed.
• − Straight cut: Switch the PVW screen to the LED display without special effects.
• Support for PVW preview of all inputs.
• Supports up to 12 output interfaces for simultaneous splicing output.
• Support card slot, board working status monitoring and key chip temperature function.
• Support Genlock video source synchronization function, you can select any input to achieve frame synchronization between each screen of the device.
• Support card slot, board working status monitoring and key chip temperature function.
• Supports up to 2 devices to cascade, and the output can be up to 48KK after cascading.

Novastar E3000 LED Video Splicer Specifications
Operating temperature：0℃～50℃
Storage temperature:-20℃～60℃
Operating humidity: 0%RH～95%RH
Power connector:AC110-240V 50/60Hz
Max power consumption:280W

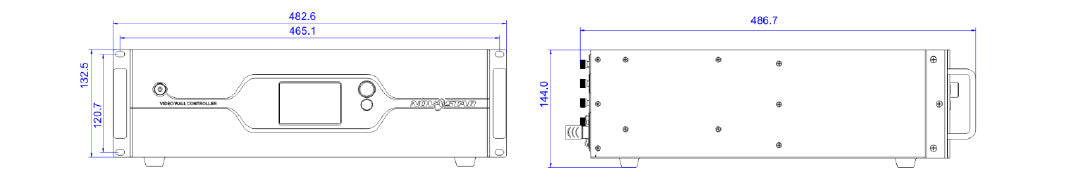

Dimensions：482.6mm×474.2mm×144.0mm
Weight:15.74kg

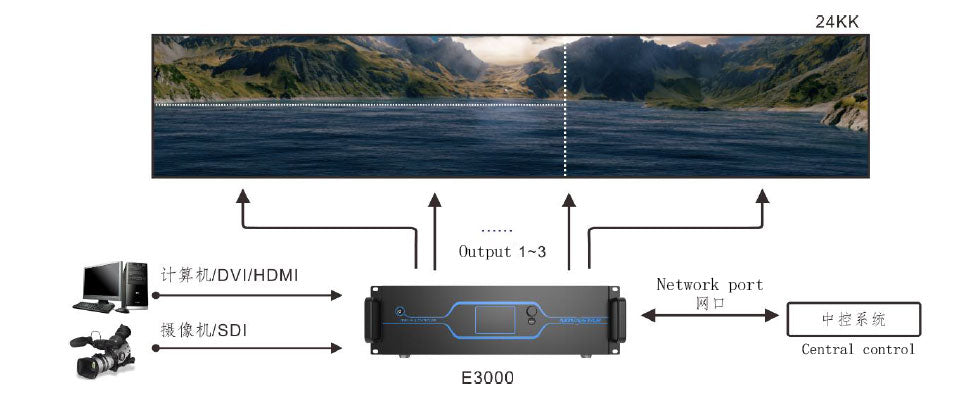

Novastar E3000 LED Video Splicer Working Diagram
