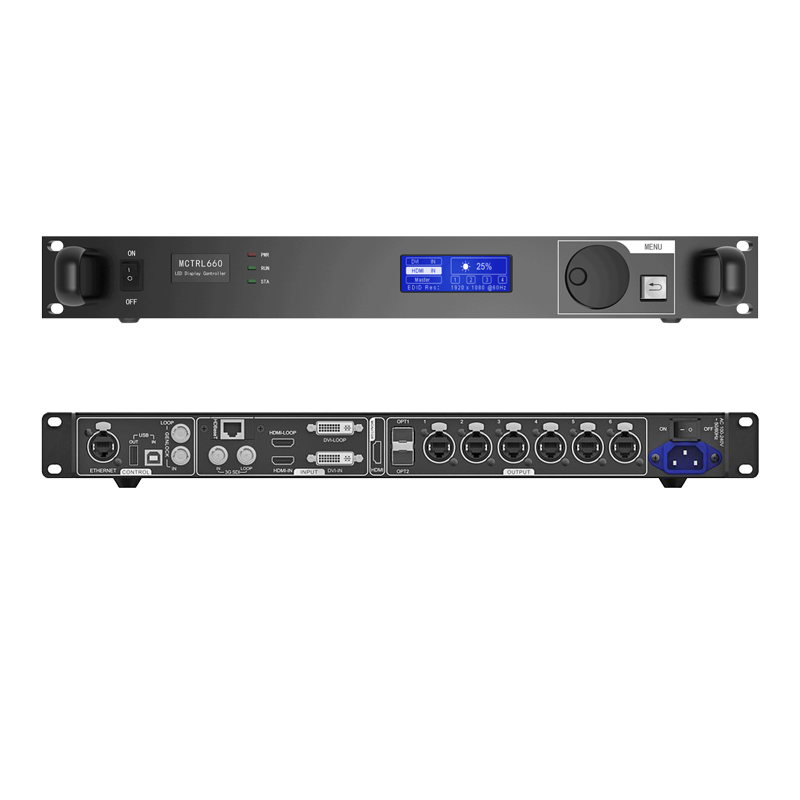

Novastar Mctrl660 send controller is a controller developed by Novastar with a single-unit loading capacity of 1920×1200@60Hz. Nova Mctrl660 utilizes UART to cascade and control multiple units.

$425.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Novastar MCTRL660 send controller is a controller developed by Novastar with a single-unit loading capacity of 1920×1200@60Hz. Nova Mctrl660utilizes UART to cascade and control multiple units.

Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more competitive mctrl660 price.

True hot backup, No flickering, no blackout
One-button upload of settings and parameters
12bit/10bit HDMI input, DVI input
HDMI.DVI loop output for cascading or monitoring
HDCP Blue-ray directly input
8bit video source loading capacity of 1920×1200@60Hz.
12bit video source loading capacity of 1440×900@60Hz

1 × DVI input

1 × HDMI input

4 × Gigabit Ethernet outputs

Supports the new generation of NovaStar calibration technology, which is fast and efficient.

Supports resolutions up to 1920×1200@60Hz and downward compatibility.

Multiple controllers can be cascaded.

Supports 18-bit grayscale processing and display.

Manual screen brightness adjustment, which is fast and convenient.

Quick screen configuration without using a computer.

Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.

Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.

Supports a variety of video formats, as described in Figure 2-1.

Connector	Connector Name	Description
Input	DVI IN	Single-link DVI connector Resolution up to 1920×1200@60Hz and downward compatible Custom resolutions supported: Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz
	AUDIO	Audio input connector
	HDMI IN	HDMI 1.3 compliant Resolution up to 1920×1080@60Hz and downward compatible Custom resolutions supported: Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz l Support HDCP 1.4.
Output	RJ45 × 4	4 Gigabit Ethernet outputs Maximum loading capacity of a single Ethernet port: 650,000 pixels Support redundancy between Ethernet ports.
Control	TO PC	Type-B USB port for connecting to PC
	UART IN	Input port for cascading devices
	UART OUT	Output port for cascading devices. Up to 20 controllers can be cascaded.
Power	AC 100V~240V-50/60Hz
