Overview

The MRV208-N is a general receiving card developed by NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). Supporting various functions such as Color Management, 18bit+, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the MRV208-N can significantly improve the display effect and user experience.

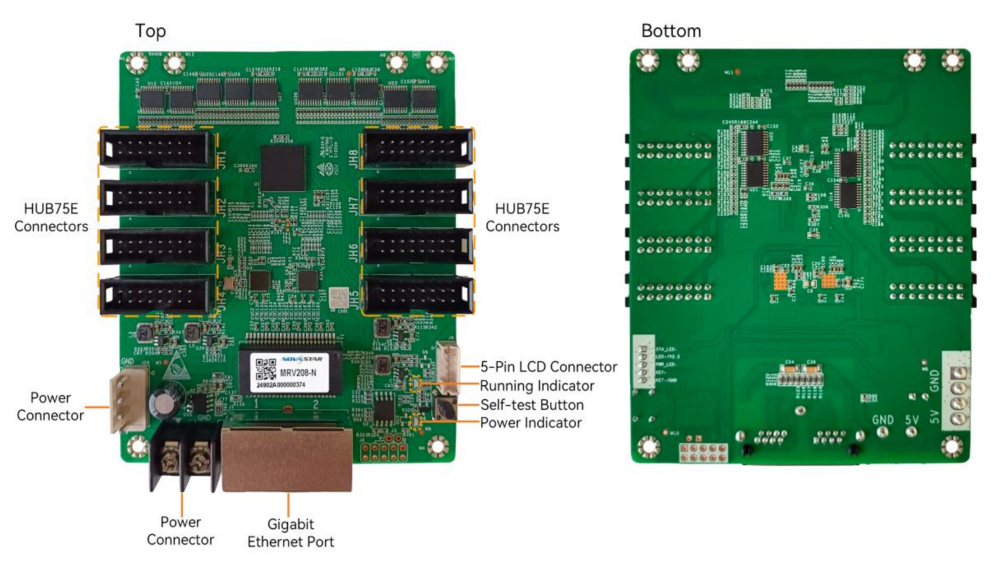

The MRV208-N uses 8 standard HUB75E connectors for high stability communication and supports up to 16 groups of parallel RGB data.
 For PWM driver ICs, the maximum load capacity per board when used with M3 controllers is:
− 512×512@60Hz (For 8bit video sources)
− 512×256@60Hz (For 10bit video sources)
 For common driver ICs, the maximum load capacity per board when used with M3 controllers is:
− 512×384@60Hz (For 8bit video sources)
− 512×192@60Hz (For 10bit video sources)

Features

Improvements to Display Effect
 Color Management
 18bit+
 Pixel Level Brightness and Chroma Calibration
 Quick Adjustment of Dark or Bright Lines
 Multi-batch Adjustment
 Low Latency
 3D
 Individual Gamma Adjustment for RGB
 90° Image Rotation
Improvements to Maintainability
 Calibration Coefficient Management
 Uploading Calibration Coefficients
 Data Group Mapping
 Mapping 1.1
 Settings of a Stored Image in the Receiving Card
 Temperature and Voltage Monitoring
 Cabinet LCD
 Bit Error Detection
 Firmware Program Readback
 Configuration Parameter Readback
Improvements to Reliability
 Loop Backup
 Dual Backup of Configuration Parameters
 Dual Program Backup

Specification Download:
Novastar MRV208-N LED Display Screen Receiving Card Specification
