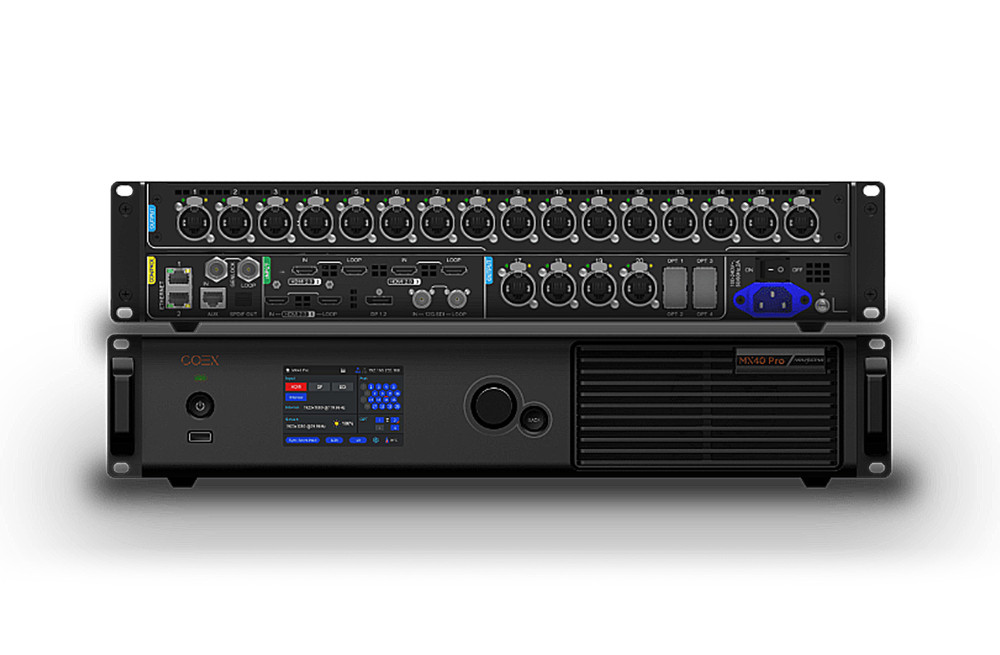

MX40 Pro is a flagship 4K independent master of Novastar's new generation control system COEX (Connect, Open, Extend, X), with rich video input interfaces (HDMI2.0, DP1.2, 12G-SDI), up to 20 output network ports, and support the new vision management platform VMP (Vision Management Platform)

1.4K/60Hz video controller
2.Inputs: 3x HDMI 2.0, 1x DP 1.2, 1x 12G-SDI
3.Outputs: 20x Gigabit Ethernet, 4x optical (optional), 3x HDMI 2.0 loop, 1x 12G-SDI loop
4.True 12-bit, HDR, wide colour gamut, high frame rate, 3D display technology
5.LED Image Booster, Dynamic Booster, XR function

Features of Novastar MX40 Pro 4K Independent LED Display Video Controller

· Various input interfaces
-2 x HDMI 2.0 (with loop-through output)
-1 x DP 1.2
-1×12G-SDI (with loop-through output)

· 12bit/10bit/8bit video source input

· Genlock sync signal input (with loop output)

· 20-channel network port output
With the receiving card A10s Pro, the load reduction at high bit depth (10bit) can be less than half.

· 4-way 10G optical fiber interface output
Support optical port duplication mode, OPT3 and OPT 4 can output duplicated signals.
- OPT 3 is the copy channel of OPT 1 or Ethernet ports 1 ~ 10.
- OPT 4 is the copy channel of OPT 2 or Ethernet ports 11 ~ 20.

· Fractional frame rate adaptation
23.98/29.97/47.95/59.94/71.93/119.88/143.86/179.82/191.81/215.78/239.76Hz.

· Dynamic engine
Greatly improves the display contrast, brings a better visual experience, and can effectively control and reduce the power consumption of the screen.

· Full grayscale correction
It makes the brightness and chromaticity of the display screen more uniform under different grayscales, and improves the picture quality of the display screen, especially suitable for indoor small-pitch screens.

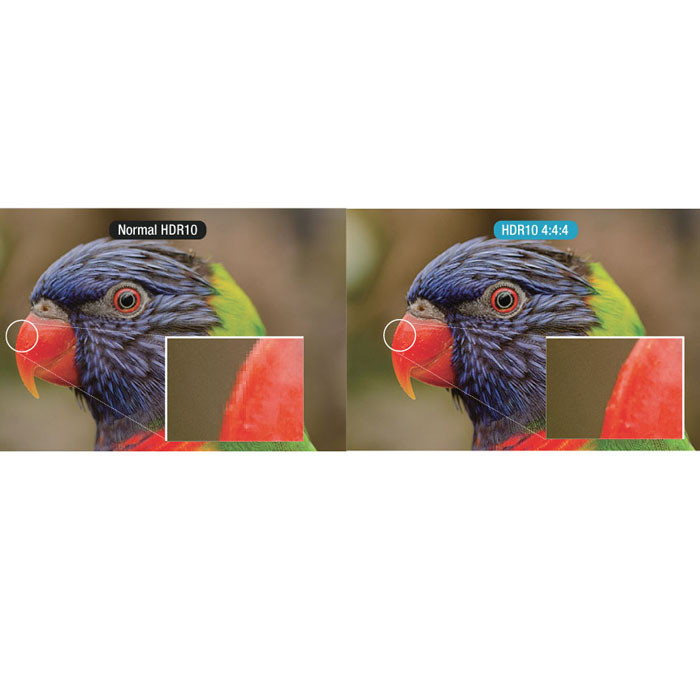

· HDR function
Both HDR10 and HLG standards are supported.
When the HDMI input source is a 10bit HDR video source, cooperate with a receiving card that supports HDR to correctly parse the video source.
With the receiving card A10s Pro, the load reduction can be reduced by less than half.

· Image quality engine
It includes the following three functions to improve the display effect from different dimensions (the specific effect is related to the driver IC):
-Color management: Freely switch the display color gamut between different color gamuts in real time, making the color presentation of the display more accurate.
- Fine grayscale: Calibrate the 65536-level grayscale (16bit) of the driver IC, optimize the low grayscale transition, bounce, color cast, pitting and other problems of the display screen, and can better assist 22bit+, RGB independent Gamma Adjustment and other display technologies make the display screen more uniform and delicate.
-22bit+: 64 times increase the display grayscale, solve the problem of grayscale loss in low light, make the image darker details richer, and the display effect more delicate.

· Point-by-point chromaticity correction
With Novastar high-precision correction system, the brightness and chromaticity of each light point are corrected, effectively eliminating the difference in brightness and chromaticity, so that the brightness and chromaticity of the entire screen are highly consistent.

· Low latency
The delay of the video source at the sending card end is less than 1ms, and it can achieve low delay without reducing the load.
When used with devices with high delay, the delay of the sending card can be increased as required.

· 3D function
With the 3D-capable receiving card, 3D transmitter EMT200 and 3D glasses, it brings an immersive 3D visual experience.
When the function is turned on, the load is halved.

· VMP software control
Use Novastar's new VMP software to perform various configurations on the display, which is practical and easy to operate.

· Ethernet cascade control
Up to 10 MX40 Pros are cascaded for unified control through the host computer.

Specification Download
Novastar MX40 Pro Specifications-Chinese
