  • NOVASTAR PCC80 Full Color Asynchronous LED Display Card
1/1
  • NOVASTAR PCC80 Full Color Asynchronous LED Display Card

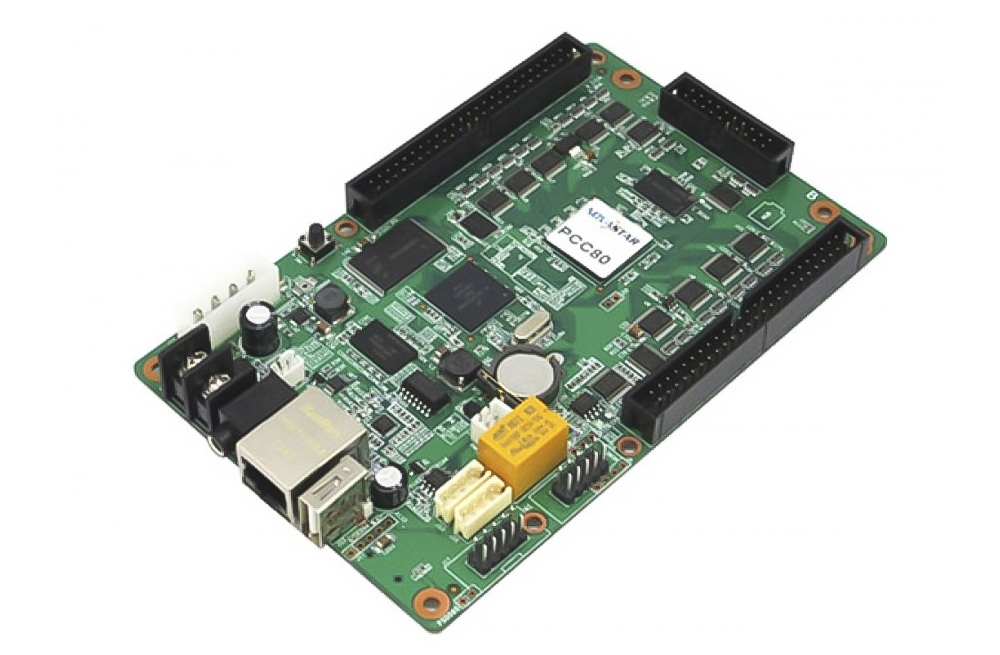

NOVASTAR PCC80 Full Color Asynchronous LED Display Card

SKU: NOVASTAR-PCC80
Maximum Resolution: 640×128;
Media Format: Video, picture, text, weather, clock, countdown, Word, Excel, Txt etc;
Video Format: MPEG4, H.264, MV, VC1, MPEG1;
Gray scale Levels: 65536 maximum;
PWM Levels For Brightness Adjustment: 256;
LED Status Detection;
$0.00 $240.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • NOVASTAR PCC80 Full Color Asynchronous LED Display Card
  • Description
  • Shipping Policy
  • Why Us

NOVASTAR PCC80 Full Color Asynchronous LED Display

Generator Introduction:

1) Maximum Resolution: 640×128;

2) Cascade Levels with Ethernet Cable:

Cascading no supported;

3) Drive IC supported: MBI5041/5042/5045,  MY9262,  MY9221,  MBI505X,  MBI515X,

MY9266/9268/9269,  SUM2030,  TLC59282/  59283,

MY9868, SUM2016/ 2017, MBI5020/ 5024/ 5034/ 5035

and many more;

4) Media Format: Video, picture, text, weather, clock,

countdown, Word, Excel, Txt, etc.

5) Video Format: MPEG4, H.264, MV, VC1, MPEG1

6) LED Displays Supported: Full-color LED display

from static to 1/32 scan, with real pixels.

7) Grayscale Levels: 65536 maximum, configurable

8) Refresh Rate: 6000Hz maximum for static

LED display, 3840Hz for scanning LED display

9) Integrated Power Switch Management: 1

10) PWM Levels For Brightness Adjustment: 256

11) Auto Brightness Adjustment: Supported

12) LED Status Detection: Open/ Short-Circuit checking (with MBI5034/ 5036/ 5039/ 5040,DM13H)

13) Brightness Loss for Calibration: 5%~8%

14) Integrated  Audio Output: Supported

15) Working Temperature: -20oC ~ 80oC

16) Power Supply Voltage: 4V ~ 5V

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.


2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.


3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.



4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.



5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.


6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.


7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.


8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.


9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.



10. The products ordered will not enjoy return and warranty if their codes are ripped off.



11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.

Why Buy from us?

1.Strong technical background. we are a professional LED screen manufacturer in Shenzhen China. our engineers are well experienced in all kinds of LED controller card configuration and operation and producing and using LED screens.

2.No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders.Many other suppliers have strict MOQ request,which is not convenient for buyers.

3.Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4.Good quality control. Our technicians inspect all the products earnestly before packaging.

5.Long warranty period. All LED controller products you buy from ledpartsmall.com are under two years warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send back to you. The shipping cost is afforded by sender.

6. Good support from our English-speaking engineersBefore and after sales 7/24, you can get full support from our engineers, we are proficient in English.
