Features

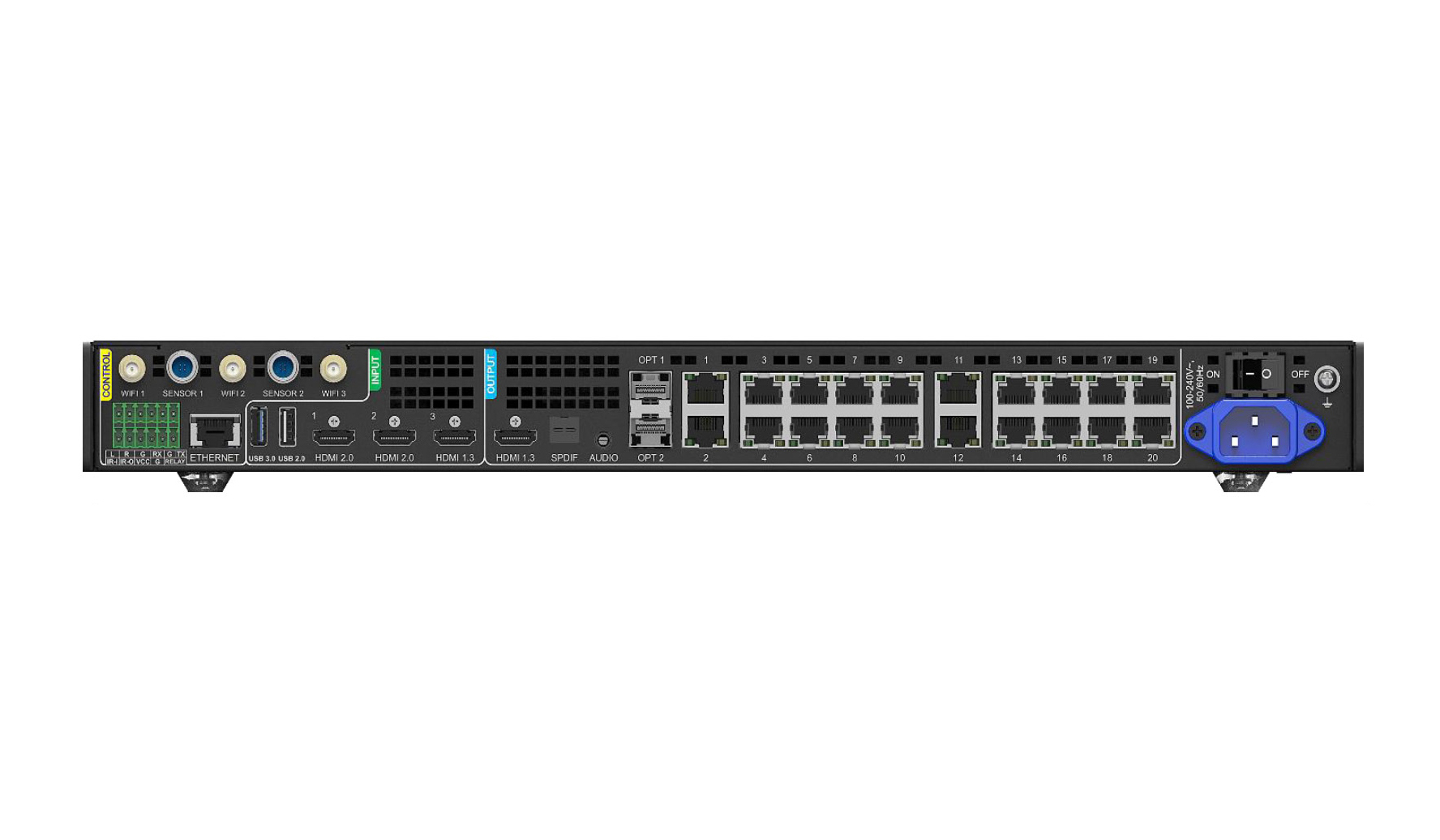

Inputs and Outputs
 2x HDMI 2.0 inputs
 1x HDMI 1.3 input
 1x USB 3.0 input
 2x USB 2.0 inputs
 1x HDMI 1.3 output for monitoring and debugging
 20x Gigabit Ethernet outputs
 2x OPT outputs
 4x audio outputs
− 1x SPDIF digital audio output
− 1x 3.5-mm audio output
− 1x HDMI eARC audio output
− 1x Phoenix audio output
 Output image scaling
− Width range: 64 to 16384 pixels
− Height range: 64 to 8192 pixels
− Total device load capacity ≤ 13 million pixels

System Functions
System Functions
 Android 13.0-based desktop UI system,supporting third-party apps

 Screen drawing and commenting (Touse this feature, please purchase awhiteboard activation code separately.)

 Wireless screen mirroring from multiple platforms
− Max resolution: 3840×2160@30Hz
− Mirror from Windows, macOS, iOS and Android

 Working with ViPlex Handy to achieve reverse control
The speaker can reversely control the LED screen via the terminal.

 Powerful processing performance
− Quad-core A73 + quad-core A53 ARM processor @ 2.2 GHz
− Support high-definition video decoding of H.264 4K@30Hz and H.265 4K@60Hz.
− 8 GB of onboard RAM
− 128 GB of storage space

 Excellent playback performance Supports playback of 1 stream of 8K video, 3 streams of 4K video, 7 streams of 1080p video, 10 streams of 720p video, 20 streams of 480p video, or 20 streams of 360p video.
Note: 8K refers to the standard 8K resolution (7680×4320@24Hz). Only H.265/HEVC and VP9 encoding formats are supported. Decoding and playback of videos with resolutions between 4K and 8K are not supported.

 Playback control via different terminals
− Intelligent playback control via mobile app: Install ViPlex Handy on your smartphone for program editing and publishing and screen control.The HDMI 1 can also be used as program content.
− Convenient playback control via
remote: Perform playback control of local programs and simple program editing on the screen.
− USB playback: Support standalone playback, plug and play, copy and play.

 Eye comfort mode

 Dual Wi-Fi modes
Allow for Wi-Fi and wireless hotspot connections at the same time.

 Dynamic Engine
Real-time analysis and dynamic adjustment are made to each frame to significantly improve the display contrast and image details for better visual experience, and effectively control and lower the display power consumption, extending the service life of the LED screen.
Note: This feature is available when the A10s Pro receiving card is used and Gamma is manually adjusted to 2.8 in NovaLCT in advance.

 AI image enhancement
Enable intelligent recognition of playing content, fine tuning of colors in each frame, and comprehensive optimization of color saturation,brightness,sharpness and dynamic motion compensation.
Note: This feature is available for the internal source and HDMI 1 only.

 Decoding and playback of HDR videos

 Effect adjustment
Offer 4 display modes including standard, meeting, vivid and skin, and allow you to adjust the brightness, color temperature, saturation,contrast, etc.

Specification Download:

Novastar TU4K Pro LED Multimedia Player Specification
Novastar TU4K Pro LED Multimedia Player User Manual
