Overview

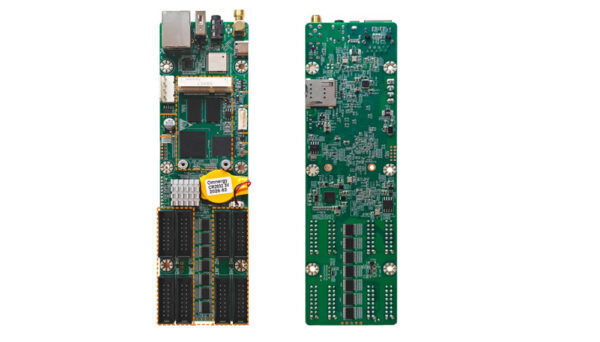

The TCC80 is an asynchronous full-color LED display control card from NovaStar. It integrates sending and receiving capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with cloud-based publishing and monitoring platforms, the TCC80 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

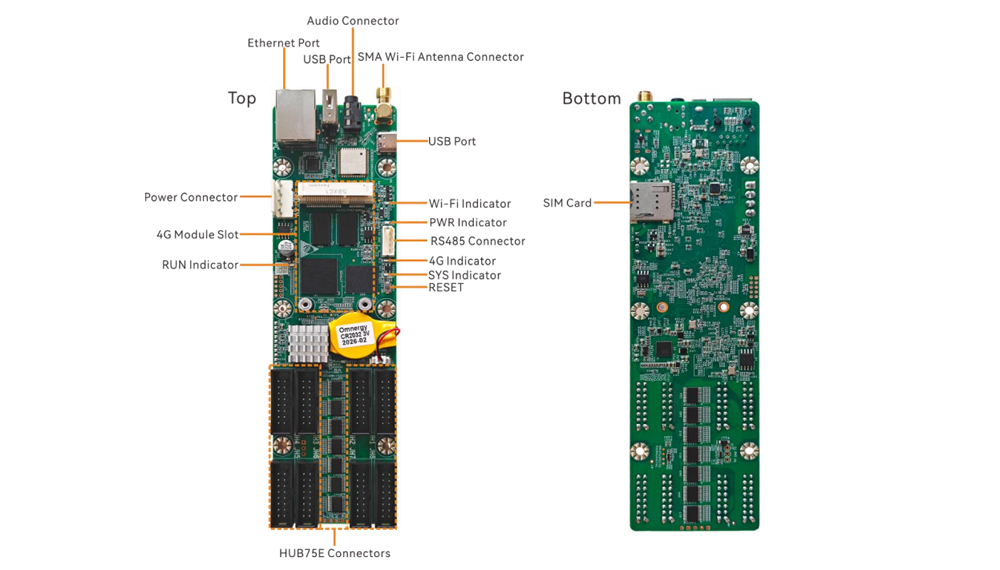

The TCC80 comes with 8 standard HUB75E connectors for communication. On-site setup, operation, and maintenance were all taken into account when designing the hardware and software, allowing for an easier setup, more stable operation, and more efficient maintenance.
Thanks to its stable and secure integrated design, the TCC80 saves space, simplifies cabling, and is suitable for the applications requiring small load capacity, such as storefront displays, vehicle-mounted displays, displays in communities, lamp-post displays, shelf displays, and cube displays

Features:

Inputs and Outputs
 For PWM driver ICs and general driver ICs (including ICN1065 and ICN1063), the maximum load capacity per TCC80 is 512×320@60Hz with an 8-bit depth.
 1x 3.5 mm audio output
Control
 1x USB 2.0 (Type A) port
 1x USB 2.0 (Type C) port
 1x Fast Ethernet port
 1x RS485 connector
Performance
 Powerful processing performance
 Flawless playback
Functionality
 All-round control plans
 Wi-Fi AP and Wi-Fi Sta can be turned on at the same time
 Synchronous playback across multiple screens
 Support for 4G modules
 Supports GPS positioning/time synchronization
Receiving Card Features
 Supports up to 16 groups of parallel RGB data or 48 groups of serial data, without support for serial data expansion.
 Color management
 18bit+
 Individual gamma adjustment for RGB
 90° image rotation
 Display of 3-color 16-point serial input
 Temperature and voltage monitoring
 Firmware program readback
 Configuration parameter readback
 Mapping 1.0
 Dual program backup
 Dual backup of configuration parameters

Specification Download:
NovaStar TCC80 Asynchronous LED Display Control Card Specification
