Product type: Multi-picture stitching processor
Support zoom: support
Source switching effects: support
Support splicing: support
Picture in Picture: support
Customzied EDID: support
Support loop-out: support
Control method: USB, serial control
Maximum output resolution: 3840 × 1200 pixels
Video input interface: CVBS × 2, VGA × 2, HDMI × 1, DVI × 3
Certification: None

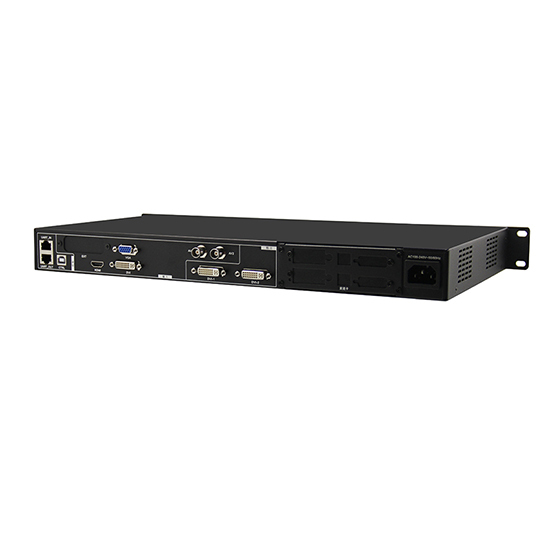

Nova VS2 is a high-performance multi-picture splicing video display processor,It is based on a powerful FPGA processing platform and supports diverse signal inputs including 2 CVBS, 2 VGA, 1 HDMI and 3 DVI. , And supports fast and seamless switching or fading switching special effects of any input source, which can bring you flexible picture construction experience.
In addition,Nova VS2 is equipped with a brand new intelligent management software. Users can use this management software to complete richer picture stitching effects and more fully meet your needs.
Support 2 DVI outputs, one of which is preview output, and the other two splicing outputs, the maximum output resolution can reach 3840×1200 @ 60HzNova VS2 has a complete video input interface, including 2 CVBS, 2 VGA, 1 HDMI, 3 DVI, support one DVI Loop;
Input resolution supports up to 1920 × 1200 @ 60Hz, and is backward compatible;
The position and size of the window can be adjusted, and you can control it as you wish;
The preview interface supports four channels of four-frame video preview;
Support 16 user scenarios, which can be called directly for easy use;
Support up to three windows at the same time, the maximum resolution of each window can reach 3840×1200, and support one OSD, you can choose to overlay in pictures or text;
Novastar VS2 is Nova’s new generation splicing video processor, with powerful image processing functions, with professional image control software and friendly human-machine interface;
Provide multiple input source switching effects to enhance and present professional-quality video;
An intuitive LCD display interface and clear key light prompts simplify system control.
Novastar VS3 multi-picture stitching processor
Product type: Multi-picture stitching processor
Maximum output resolution: 5760 × 1200 pixels
Video input interface: CVBS × 2, VGA × 2, HDMI × 1, DVI × 3
Support splicing: support
Support zoom: support
Source switching effects: Support
Custom EDID: Support
Picture in Picture: Support
Support loop-out: support
Control method: USB, serial control
Certification: None
Power supply AC 100-240V, 50 / 60Hz
Power consumption 30W
Working temperature -20 ~ 60 ℃
Dimensions 482 × 250 × 45 (mm)
Weight 3.5kg
Novastar VS3 is a high-performance multi-picture splicing processor with its based on a powerful FPGA processing platform and supports diversified signal inputs including 2 CVBS, 2 VGA, 1 HDMI and 3 DVI. , Novastar VS3 supports fast and seamless switching or fading switching special effects of any input sourc,It can bring you a more flexible picture visual experience.
Novastar VS3 is equipped with brand new intelligent management software. Users can use this management software to complete more picture stitching effects and more fully meet your needs.
Ccomplete video input interface, including 2 CVBS, 2 VGA, 1 HDMI, 3 DVI, support one DVI Loop;
Preview interface supports four-grid preview input;
The input resolution maximum:1920 × 1200 @ 60Hz;
An intuitive LCD display interface and clear key light prompts simplify system control.
Support up to three windows at the same time, the maximum resolution of each window can reach 5760×1200, and support one OSD;
The position and size of the window can be adjusted as you wish;
Powerful image processing,control software,and friendly human-machine interface;
Provide multiple input source switching effects to enhance display quality;
Support 4 DVI outputs, one of which is preview output, and the other three stitching outputs, the maximum output resolution:5760×1200 @ 60Hz;
Support 16 custom template;
Novastar VS7 Multi-picture stitching processor
Product Type: Multi-picture stitching processor
Maximum output resolution: 9.2 million pixels
Video input interface: DVI × 2, SDI × 1, HDMI × 2, optional × 2
Picture in Picture: Support
Source switching effects: Support
Support zoom: support
Support splicing: support
Control method: USB, serial control
Custom EDID: Support
Support loop-out: support
Certification:None
Support common video input interfaces
Novastar VS7 is a high-performance splicing video processor with its integrates video processing, picture splicing, special effects switching and multi-picture display. Novastar VS7 has powerful video signal receiving and processing capabilities 4K × 2K @ 30Hz video input,7 inputs and 5 independent windows at the same time. VS7 supports up to 4 DVI splicing outputs and maximum load 8KK.
Based on powerful FPGA processing platform,Novastar VS7 supports input and output EDID management and picture quality adjustment, seamless switching of multiple input and switching effects such as fade in and fade out.
VS7 is equipped with the new intelligent management software V-Can. Users can complete picture stitching effects through V-Can or VS7 front panel. VS7 can be widely used for conference,exhibition,stage event and other application.
−DVI interface, 1920 × 1080 @ 60Hz input
−HDMI1.3 interface, 1920 × 1080 @ 60Hz input
−3G-SDI interface, 1920 × 1080 @ 60Hz input
−DP1.1 interface, 3840 × 2160 @ 30Hz input
−HDMI1.4 interface, 3840 × 2160 @ 30Hz input
−VGA interface, 1920 × 1080 @ 60Hz source input
One processor with 4 DVI splicing output
Supports up to 4 interface splicing output,horizontal splicing, vertical splicing, and field stitching, maximum load of 9.2 million pixels. maximum width 3840 pixels, 4 channel splicing max width or height 15360 pixels.
HDMI preview output
− Support single input preview or output screen preview
− Support all input and output screen preview
− Supports superimposed display of information such as input resolution and frame rate
Multi-window display
5 windows layer and each window supports cross-interface output
Screen control
Support screen one-click black screen.
EDID Management
Input resolution management supporting DVI, HDMI and DP interfaces.
Screen effects switching
Support window special effect switch.
Multi-scenario management
Support to create 32 user-defined template.
Window layout
Multiple control methods
Supports the use of intelligent control software V-Can or VS7 front panel to control display.
Intuitive front-panel color LCD display interface and clear key light prompts simplify system control operations
BKG configuration
Support to select pictures as BKG, max 6 BKG pictures
Support input image quality, window image quality and output image quality adjustment
Window template management
Built-in 7 window templates
Power supply AC100V ~ 240V50 / 60Hz.
Power consumption 50W
Working temperature -20 ℃ ～ 70 ℃
Working humidity: 20% RH ~ 90% RH
Storage humidity: 10% RH ~ 95% RH
Dimension: 482.6mm × 379.5mm × 94.7mm
Weight: 5.1kg
Total weight 7.5kg
Packaging Carton 530mm × 193mm × 420mm
Accessory box 405mm × 290mm × 48mm
Accessories: 1 × power cable, 1 × network cable, 2 × DVI cable, 1 × USB cable, 1 × HDMI cable, 1 × HDMI to DVI cable, 1 × user manual
