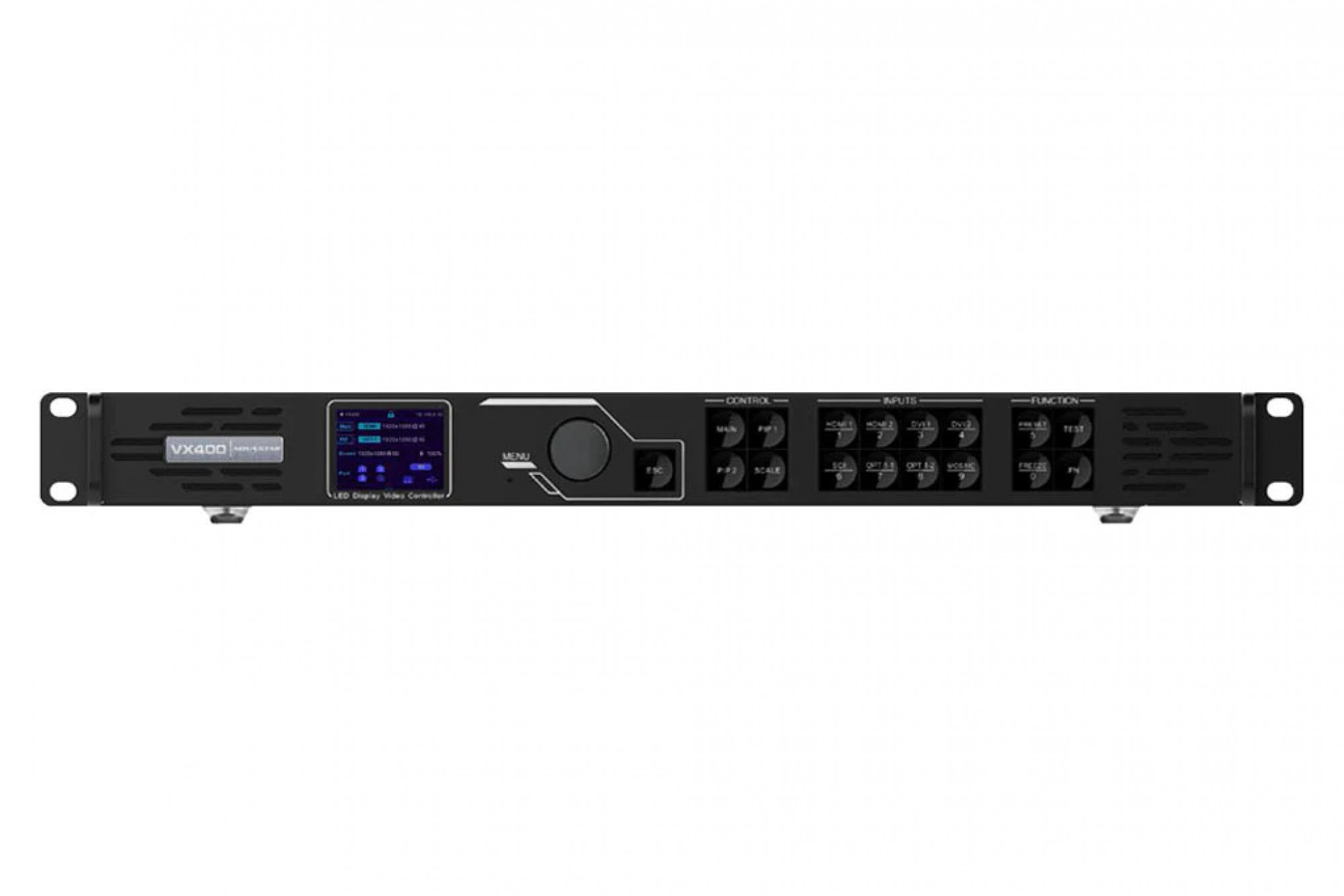

Baby of the family in third (and best) version. With the VX400 you lay hands on the most modern generation of the smallest VX controller. With low latency function and freely adjustable layers thats a win for sure.

Inputs: DVI/ SDI/ DP/ HDMI
Outputs: 4x LED OUT port/ OPT
Scaler with 2.600.000 pixels
2 layer/ Low Latency

$988.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

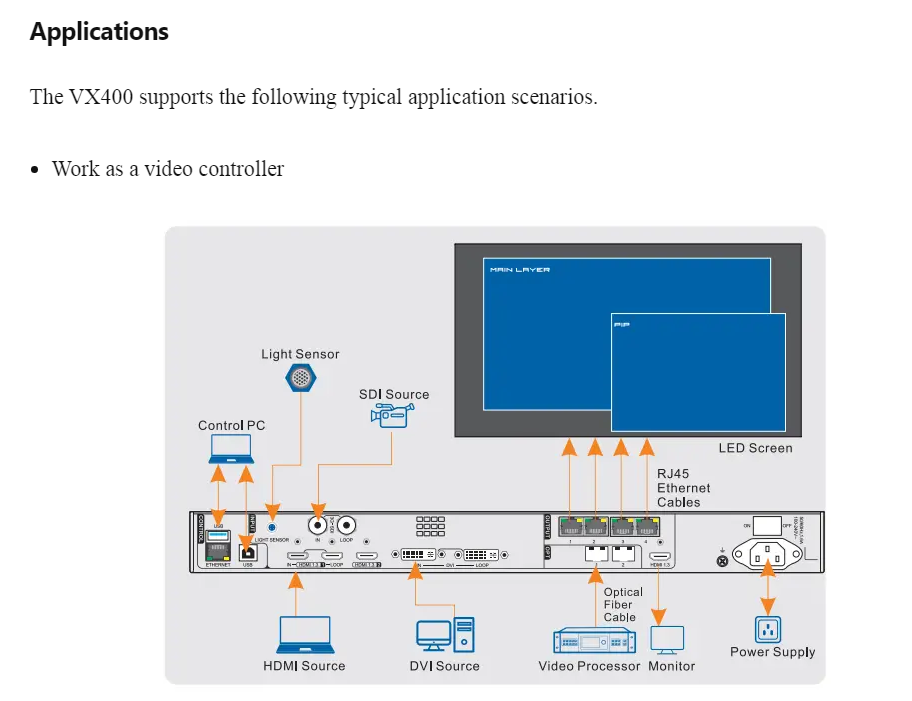

Novastar VX400 All-in-One LED video Controller features：

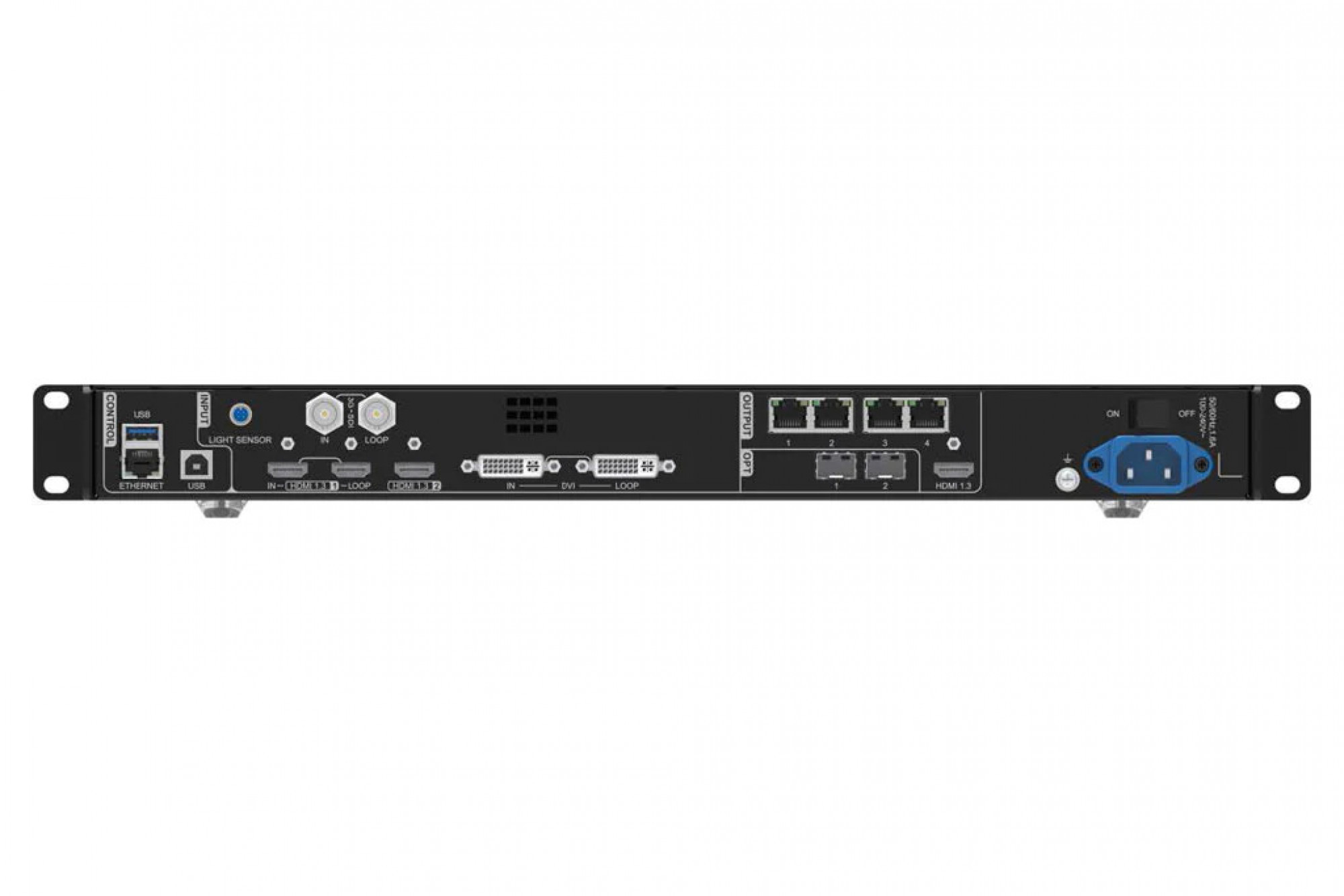

Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x DVI (IN & LOOP)
− 1x 3G-SDI (IN & LOOP)
− 1x optical fiber port (OPT1)
Output connectors
−4x Gigabit Ethernet ports
A single device unit drives up to 2.6 millionpixels, with a maximum width of 10,240pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 4 Ethernet ports.OPT 2 copies or backs up the output on 4Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output

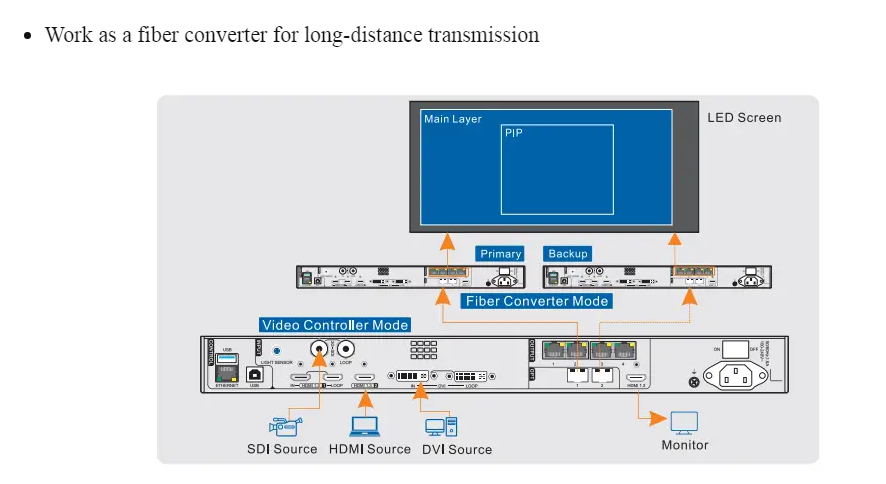

Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 canbe used as either an input or output connector,depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI inputsource
− Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receivingcard to 20 lines when the low latency function and Bypass mode are both enabled
2x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source can be used as the sync source to ensure the output images of all ascaded units in sync.

Step guide:
1.Power on the VX400 and LED screen.
2.On the home screen, press the knob to enter the main menu screen.
3.Go to Screen Configuration> Quick Configuration to enter the quick configuration screen.
4.Set Cabinet Row Qty and Cabinet Column Qty according to the actual row and column quantities of the cabinets.
5.Rotate the knob to select Port 1 Cabinet Qty to set the quantity of the cabinets loaded by Ethernet port 1.

Novastar VX1000/VX600/VX400 All in one video processor Comparison
Device Model	VX1000	VX600	VX400
Loading Capacity	6.5 million pixels	3.9 million pixels	2.6 million pixels
Max Width & Height	Max width: 10240 pixels Max height: 8192 pixels
Layers	3x 4K×1K	3x 2K×1K	2x 2K×1K
Input Connectors	1x 3G-SDI 2x HDMI 1.4 2x DVI（HDMI 1.4） 1x OPT1	1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1	1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1
Output Connectors	10x Ethernet Ports 1x HDMI1.3 1x HDMI1.4 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT	6x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT	4x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT
Presets	10	10	10
Control Connectors	1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP)	1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP)	1x Ethernet Port 2x USB (input & output) 1x Light Sensor

Specifications Download
Novastar VX400 All-in-One LED video Controller Specifications
