Applications:
Mainly for website application, support the LAN and internet.
A best choice for single screen or cluster display system.
Widely used in larger lintel display screen and LED cluster display system.

Features:
High cost performance, Support large screen, on-board 100M Ethernet Interface, MAC bindings Mechanism,Ethernet auto-connection.
3.5V- 6.5V wide voltage range. -40°C~80°C wide work temperature.
Support PC direct connection/cross-Ethernet connection/cross-internet connection, support firmware update online

Technical parameters:

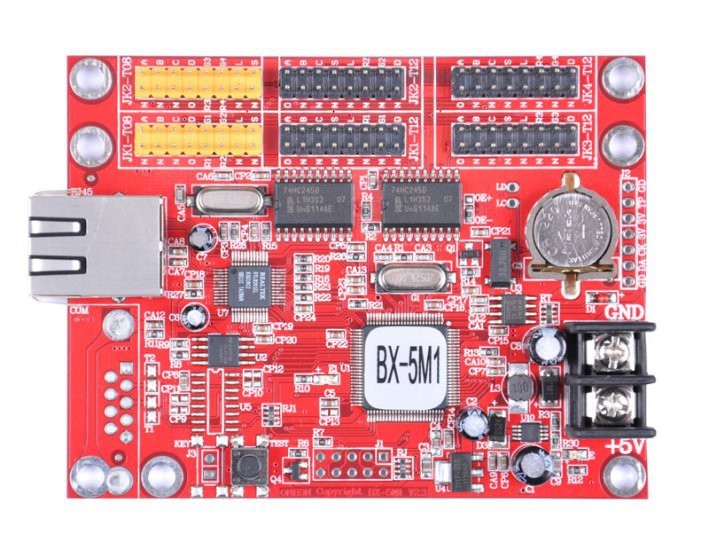

Product model	BX-5M1
Product status	The latest 5th generation products,put into market on March 28,2012.
Control area	Single color32K:204816 102432 67248 51264 Dual color16K:102416 51232 33648 25664
Memory storage	2MByte
Screen types	All kinds of single and double colors LED screen
Software function	Screens cluster management/multi-program/multi-areas display/multi-languages
Program type	Normal/Shared program
Program quantity	Support 128 programs,24 areas for each program
Area type	Image/text/animation/lunar calendar/digital clock/analogue clock /timer/temperature/temperature & humidity
Frame mode	Most advanced colorful / magic graphics frame/Area frame
Background	Support text/image back ground/animation background
Time mode	Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode	100M ethernet/RS232/RS485,stanard is 100M ethernet
Interface	2 nos T8 and 4 nos T12
Sensors supported	Temperature /humidity
Remote control	Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation	16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode	Auto-timing powered on/off /remote control
Voltage	5V (3.5V~6.5VwideVoltage)
Maximum power	≤1.8W
Temperature	-40°C~80°C
Secondary development	Provide the DLL and corresponding demos
Software	LedshowTW2012
User manual	LEDshowTW 2012 software user manual
