Applications:
Mainly for website application, support the LAN and internet.
A best choice for single screen or cluster display system.
Widely used in larger lintel display screen and LED cluster display system.

Features:
High cost performance, Support large screen,on-board 100M Ethernet Interface, MAC bindings Mechanism,Ethernet auto-connection.
3.5V- 6.5V wide voltage range. -40°C~80°C wide wok temperature.
Support PC direct connection/cross-Ethernet connection/cross-internet connection, support firmware update online.

Technical parameters:

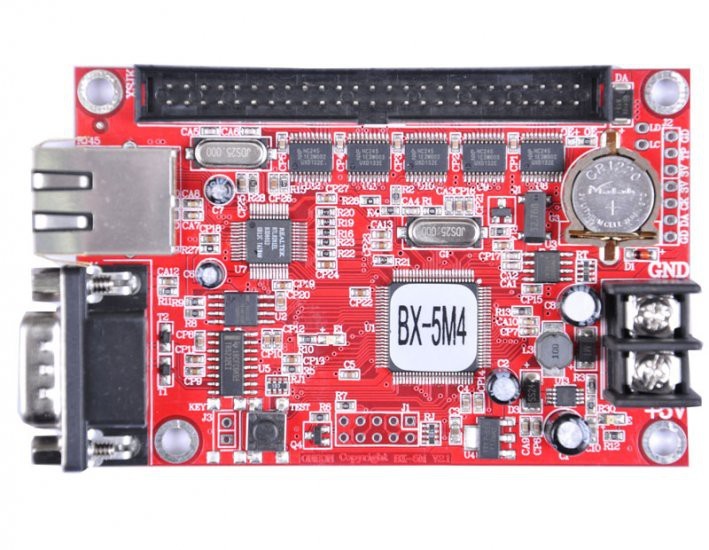

Product model	BX-5M4
Product status	The latest 5th generation products,put into market on March 28,2012.
Control area	Single color128K: 320016 320032 268848 204864 179280 153696 1280112 1024128 896144 768160 704176 640192 608208 576224 544240 512256 Dual color64K: 320016 204832 134448 102464 89680 76896 640112 512128 448144 384160 352176 320192 304208 288224 272240 256256
Memory storage	2MByte
Screen types	All kinds of single and double colors LED screen
Software function	Screens cluster management/multi-program/multi-areas display/multi-languages
Program type	Normal/Shared program
Program quantity	Support 128 programs,8 areas for each program
Area type	Image/text/animation/lunar calendar/digital clock/analogue clock /timer/temperature/temperature & humidity
Frame mode	Most advanced colorful / magic graphics frame/Area frame
Background	Support text/image back ground
Time mode	Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode	100M Ethernet/RS232/RS485,standard supply 100M ethernet and RS232
Interface	1 nos 50 PIN
Sensors supported	Temperature /humidity
Remote control	Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation	16 grades brightness, manual and auto-timing adjustment/remote control
Power on/off mode	Auto-timing powered on/off /remote control
Voltage	5V (3.5V~6.5VwideVoltage)
Maximum power	≤1.8W
Temperature	-40°C~80°C
Secondary development	Provide the DLL and corresponding demos
Software	LedshowTW2012
User manual	LEDshowTW 2012 software user manual
Adapter	HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.

2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.

3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.

4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.

5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.

6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.

7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.

8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.

10. The products ordered will not enjoy return and warranty if their codes are ripped off.

11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.
