Applications:
Support Ethernet communication mode. Mainly used on industrial field, equipment,logistic warehouse and cluster system, etc.
Controller built-in font library. It could display content when users send characters, which greatly reduce the data flow and decrease the hardness on development.
Support informations dynamically refreshing: with totally 6 dynamic areas, could update informations at the same time, also could update independently;
Dynamic refreshing intervals ≥ 0.5s
BX-5MK series is based on the font library design, and suitable for the requirement of updating informations frequently. Especially for SDK.

Features:
♦Support many kinds of application systems, and satisfy the users' special requirement;
♦Smart control areas, abundant display functions and high performance price ratio;
♦Good technology and best quality;
♦Support firmware update online, which greatly save the cost on system development and updating;

Technical parameters:

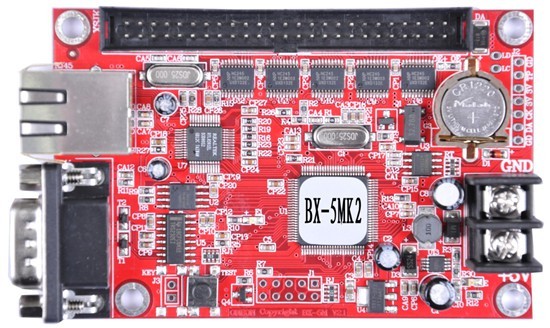

Product model	BX-5MK2
Product status	5th generation product, put into the market in December 2012, spot in stock
Control area	Single color 72K pixels: 204816 204832 153648 115264 76896 576128 384192 288256 Double color 36K pixels: 204816 115232 76848 57664 38496 288128 192192 144256
Storage capacity	2MByte
Screen types	All kinds of single and double colors led screen
Software function	System cluster management/multi-program editing/multi-area display
Program quantity	Support 128 programs, 5 ares for each program
Area type	Text/Time/dynamic area
Program type	Normal program/Dynamic area
Font library	16 dot matrix/24 dot matrix/32 dot matrix
Communication mode	100M Ethernet/RS232/RS485, standard with 100M Ethernet
Interface	1 nos 50PIN interface
Sensors	Not support
Brightness	16 grades brightness, manual and auto-timing adjustment
Power on/off mode	Auto-timing powered on/off
Voltage	5V(3.5V~6.5V)
Maximum power	≤1.8W
Temperature	-40°C~80°C
SDK	Offer communication protocol and Demo software
User manual	" BX-5K user manual " " font_controller_protocol " " BX-5MK controller hardware Illustration "
Adapter	HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12 HUB64-T12
