BX-5QS series model:
BX-5QS1/5QS2/5QS
Applications:
With 100M Ethernet and USB port;
Best price, simple operations;
Widely used in all kinds of small dual color led screen with gray scales and cluster display system;
Features:
Support 100M Ethernet port, bound with MAC mechanism, no need of IP settings, identify and connect intelligently;
Ethernet communication mode support direct link/Ethernet/internet;
Support U disk play;
Smart control area, abundant display functions;
Good technicals, best quality,3.5V-6V wide working voltage, -40°C-80°C working temperature;
Support firmware update;
Support temperature sensor and temperature&humidity sensor;
Support infrared remote control;
Technical parameters:

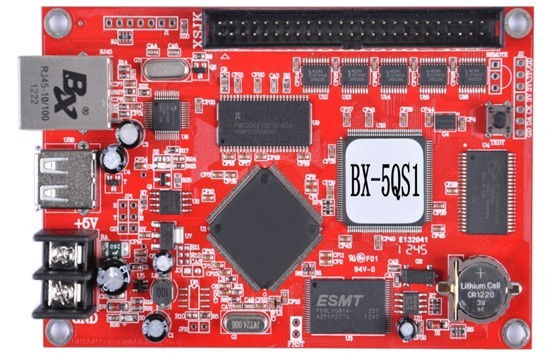

Product name BX-5QS1 multi-area dual color led controller with gray scales
Product status The latest 5th generation products, put into the market on December, 2012.
Control area Single & dual color 32K pixels:
2048*16 1024*32 512*64 336*96 256*128 160*192 128*256
Memory voltage 128MByte
Screen type All kinds of colors led screen
Software function Groups cluster management/multi-program editing/multi-area display/multi-
language version
Program type Normal/Shared program
Program quantity Support 512 programs, each program with 32 areas
Area type Texts composition/graphic/subtitle/animation/time/clock/timer/temperature/temperature & humidity
Frame mode The advanced colorful border/area border
Background Support picture background/animation background
Clock mode Dial/in Chinese and English/timer (all support multi-groups)
Communication port Support 100M Ethernet and USB port
Interface 1 nos 50PIN/160 lines
Sensor supported Temperature/temperature & humidity
Remote control Select program/lock screen/brightness adjustment/power on & off/screen test
Bright regulation 16 grades brightness, support manual and auto-timing adjustment/remote
control
Power on/off Support auto-timing power on & off/software power on & off/remote control
Working voltage 5V(3.5V-6V wide voltage)
Maximum power ≤2.5W
Working temperature -40℃～80℃
SDK Support DLL
Software LEDshowTW2013
User manual LEDshowTW 2013 software user manual
Adapter HUB256-T8 HUB128-T8 HUB256-T12 HUB128-T12
